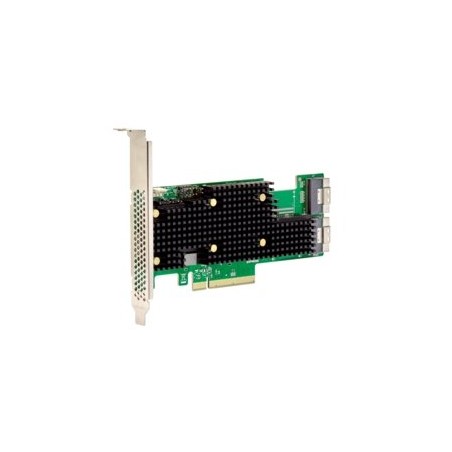

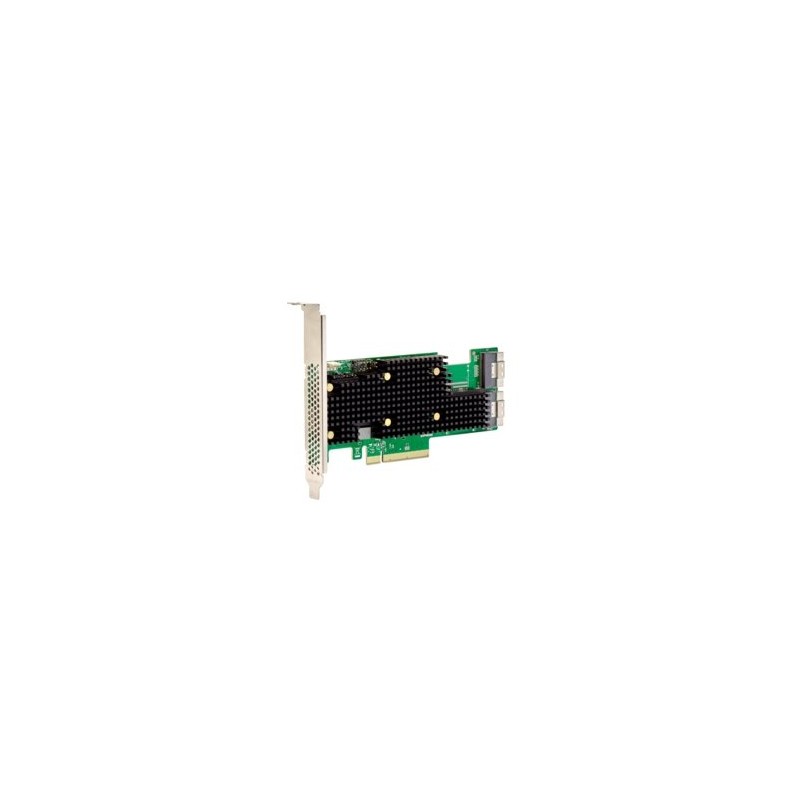

Broadcom eHBA 9600-16i, 24Gb/s, NVMe/SAS/SATA, 2x SFF-8654 x8, PCIe 4.0 x8, SAS4016 IOC

eHBA 9600-16i Tri-Mode Storage Adapter Enable endless design flexibility with Tri-Mode connectivity and maximum performance benefits with x8, PCIe 4.0 eHBA The high-port 9600-16i Tri-Mode, PCIe Gen 4.0 eHBA (enhanced HBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility. With increased bandwidth and IOPS performance compared to previous generations, the 9600-16i adapter delivers the performance and scalability needed by critical applications. Low profile, half-length x8 PCIe Gen 4.0 adapter Connect up to 240 SAS/SATA devices or 32 NVMe devices Hardware Secure Boot and SPDM Attestation support SMART monitoring Drive temperature monitoring SafeStore key management for attached SEDs Universal Bay Management (UBM) Ready Product Manufacturer Part # What's in the Box HBA 9600-16i 05-50111-00 9600-16i HBA, Low Profile Bracket, FH (attached) Specification Value Lifecycle Active Distributor Inventory No Brackets Full height and low profile Data Transfer Rates 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA Devices Supported SAS/SATA: 240; NVMe: up to 32 Generation 24G Host Bus Type x8 lane PCI Express 4.0 Internal Connectors 2 x8 SFF-8654 (SlimSAS) Internal Ports 16 Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) MTBF > 5,000,000 hours at 40° C Operating Humidity 5% to 90% Non-condensing Operating Temperature°C 0°C to 55°C OS Support Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD Physical Dimensions Low profile 6.127” x 2.712” Regulatory Certifications Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE Typical Power 15W Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba What's in the box 9600-16i HBA, Low Profile Bracket, Bracket, FH (attached)
