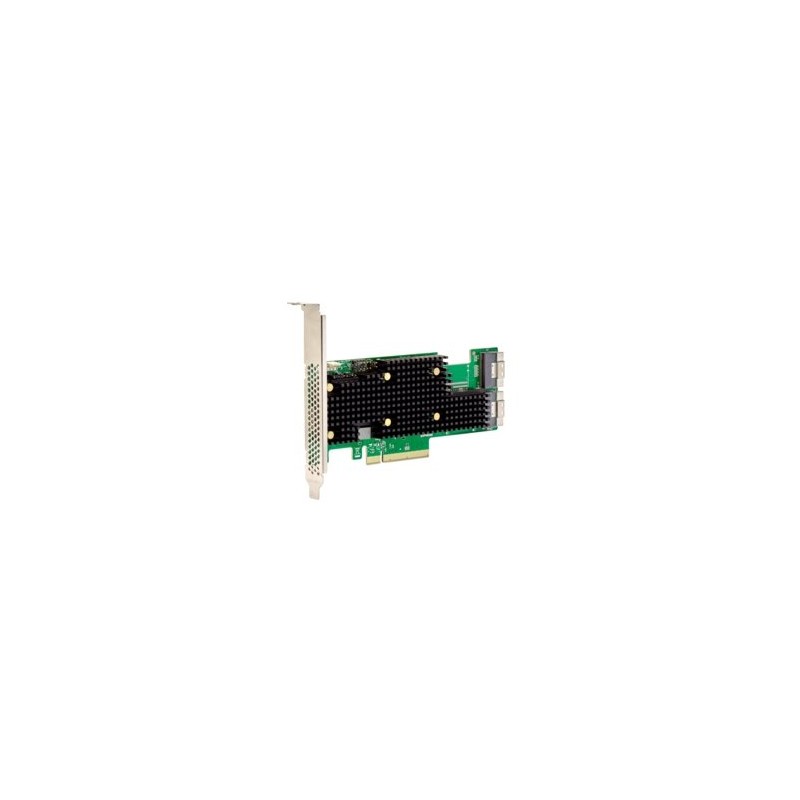

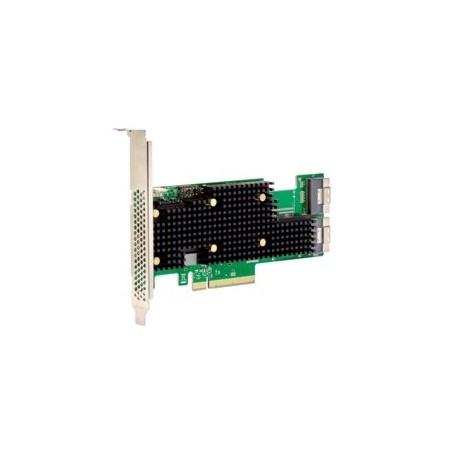

Broadcom eHBA 9620-16i, 24Gb/s, NVMe/SAS/SATA, 2x SFF-8654 x8, RAID 0/1/10, PCIe 4.0 x8, SAS4016 IOC

eHBA 9620-16i Tri-Mode Storage Adapter Enable endless design flexibility with Tri-Mode connectivity and maximum performance benefits with x8, PCIe 4.0 eHBA The 9620-16i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility. With increased bandwidth and IOPS performance compared to previous generations, the 9620-16i eHBA delivers the performance and scalability needed by critical applications. Low profile, half-length x8 PCIe Gen 4.0 adapter Connects up to 32 SAS/SATA devices or 32 NVMe devices RAID 0/1/10 with hot spare support Hardware Secure Boot and SPDM Attestation support SMART monitoring Driver temperature monitoring SafeStore key management for attached SEDs SFF-TA-1005 Universal Bay Management (UBM) Ready Product Manufacturer Part # What's in the Box eHBA 9620-16i 05-50111-02 9620-16i eHBA, Low Profile Bracket, FH (attached) Specification Value Lifecycle Active Distributor Inventory No Brackets Full height and low profile Data Transfer Rates 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA Generation 24G Host Bus Type x8 lane PCI Express 4.0 Internal Connectors 2 x8 SFF-8654 (SlimSAS) Internal Ports 16 Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) MTBF > 5,000,000 hours at 40° C Operating Humidity 5% to 90% Non-condensing Operating Temperature°C 0°C to 55°C OS Support Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD Physical Dimensions Low profile 6.127” x 2.712” Regulatory Certifications Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba What's in the box 9620-16i HBA, Low Profile Bracket, Bracket, FH (attached)
