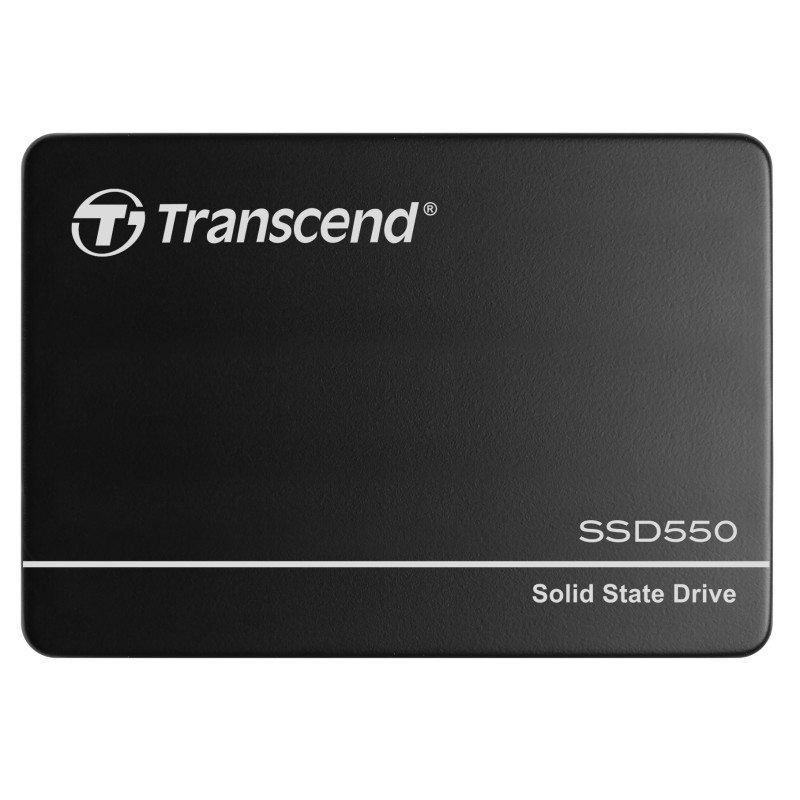

TRANSCEND SSD550I 160GB Industrial (100K P/E) SSD disk 2.5" SATA3, 3D TLC (SLC mode), 560MB/s R,520 MB/W

TRANSCEND SSD550I 160GB Industrial (100K P/E) SSD disk 2.5" SATA3, 3D TLC (SLC mode), 560MB/s R,520 MB/W Transcend's 2.5" SATA III SSD550I features the 112-layer 3D NAND flash and the SLC Mode technology, achieving remarkable endurance and sustained speeds equivalent to SLC flash. Its built-in DRAM cache allows faster random speeds while the anti-sulfur resistor guarantees its reliability in harsh conditions. The SSD550I is thoroughly tested in-house, operating stably in wide operating temperatures ranging from -40°C~85°C. Firmware Features -Dynamic thermal throttling -Built-in LDPC ECC (Error Correction Code) functionality -Advanced Global Wear-Leveling and Block management for reliability -Advanced Garbage Collection -Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices -TRIM command for better performance -NCQ command for better performance -Full drive encryption with Advanced Encryption Standard (AES) (optional) -Power-saving DevSleep (Device Sleep) mode (optional) Hardware Features -Compliant with RoHS 2.0 standards -DDR3 DRAM Cache embedded -High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability -Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed -Anti-sulfur technology implemented to prevent sulfurization in the environment -Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage -Promised operational reliability in a wide temperature range (from -40°C to 85°C) -Supports Transcend Scope Pro software Appearance Dimensions 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27") Weight 54 g (1.9 oz) Form Factor 2.5" Interface Bus Interface SATA III 6Gb/s Storage Capacity 160 GB Flash Type 112-layer 3D NAND flash (SLC mode) Operating Environment Operating Voltage 5V±5% Operating Temperature Wide Temp.-40°C (-40°F) ~ 85°C (185°F) Storage Temperature -55°C (-67°F) ~ 85°C (185°F) Humidity 5% ~ 95% Shock 1500 G, 0.5 ms, 3 axis Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency) Power Power Consumption (Operation) 4.0 watt(s) Power Consumption (IDLE) 1.2 watt(s) Performance Sequential Read/Write (CrystalDiskMark) Read: Up to 560 MB/s Write: Up to 520 MB/s 4K Random Read/Write (IOmeter) Read: Up to 90,000 IOPS Write: Up to 85,000 IOPS Mean Time Between Failures (MTBF) 3,000,000 hour(s) Terabytes Written (TBW) Up to 8,355 TBW Drive Writes Per Day (DWPD) 47.7 (3 yrs) Note Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses the endurance under the highest capacity. Warranty Certificate CE/UKCA/FCC/BSMI Warranty Three-year Limited Warranty
