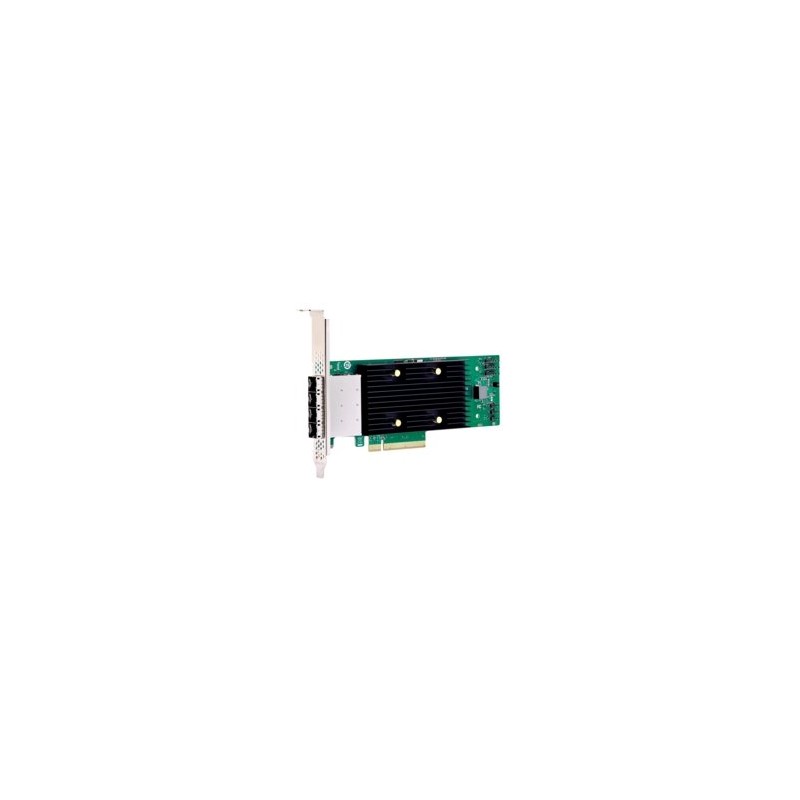

Broadcom eHBA 9600-16e, 24Gb/s, NVMe/SAS/SATA, 4x SFF-8644 x4, PCIe 4.0 x8, SAS4016 IOC

eHBA 9600-16e Tri-Mode Storage Adapter x8, PCIe 4.0 eHBA features 16 external ports for high-performance and increased connectivity The 9600-16e Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility. With increased bandwidth and IOPS performance compared to previous generations, the 9600-16e eHBA delivers the performance and scalability needed by critical applications. Low profile, half-length x8 PCIe Gen 4.0 adapter Connect up to 240 SAS/SATA devices or 32 NVMe devices Hardware Secure Boot and SPDM Attestation support SMART monitoring Drive temperature monitoring SafeStore key management for attached SEDs Universal Bay Management (UBM) Ready Product Manufacturer Part # What's in the Box eHBA 9600-16e 05-50118-00 9600-16e eHBA, Low Profile Bracket, FH (attached) Specification Value Lifecycle Active Distributor Inventory No Brackets Full height and low profile Data Transfer Rates 22.5, 12 and 6Gb/s SAS and 6Gb/s SATA Devices Supported SAS/SATA: 240; NVMe: up to 32 External Connectors 4 x4 SFF-8644 (SlimSAS) External Ports 16 Generation 24G Host Bus Type x8 lane PCI Express 4.0 Management Software LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) MTBF > 5,000,000 hours at 40° C Operating Humidity 5% to 90% Non-condensing Operating Temperature°C 0°C to 55°C OS Support Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD Physical Dimensions 6.600" x 2.712" Regulatory Certifications Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020); RoHS, WEEE Warranty 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba What's in the box 9600-16e eHBA, Low Profile Bracket, Bracket, FH (attached)
