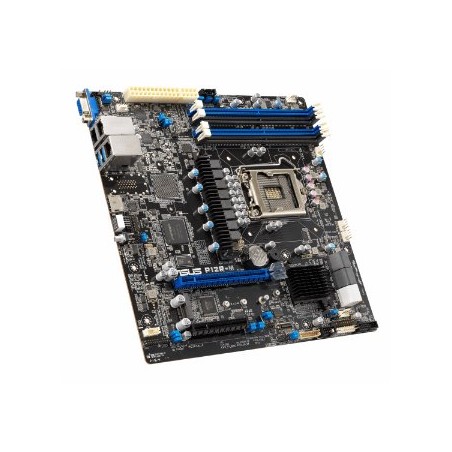

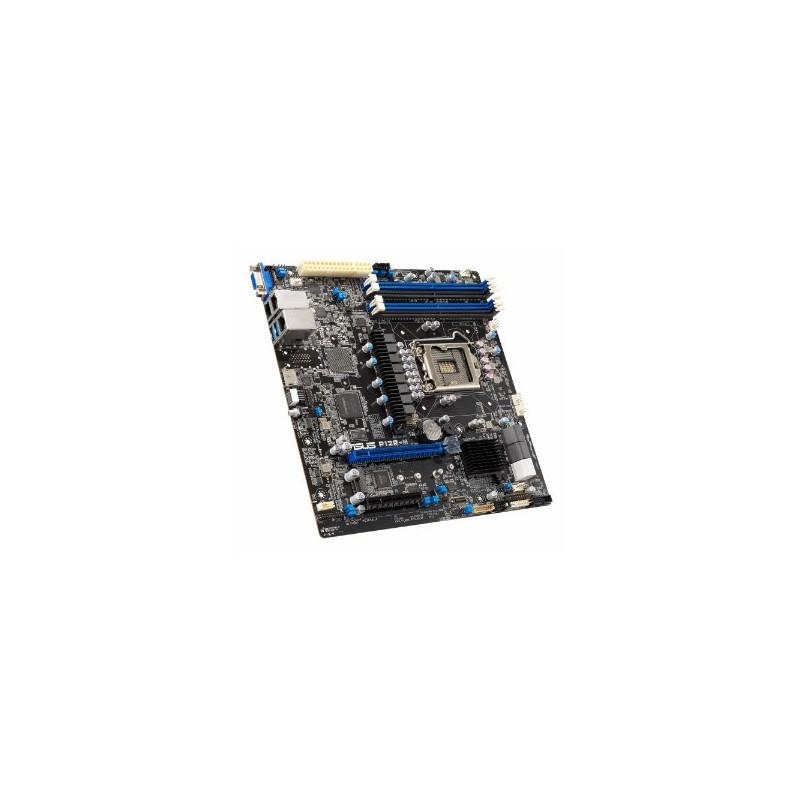

ASUS P12R-M/LGA-1200,C252,MICROATX, 4*DIMM, 1*PCIe x8 slot, 1*PCIe 16 slot, 6*SATA ports, 1*M2, 2 x Intel® I210AT + 1 x Mgmt LAN

Processor / System Bus 1 x Socket LGA1200 Intel® Pentium® Processors Intel® Xeon® E processors Core Logic Intel® C252 Chipset Memory Total Slots : 4 (2-channel) Capacity : Maximum up to 128GB UDIMM Memory Type : DDR4 3200/2933/2666 UDIMM Memory Size : 32GB, 16GB, 8GB, 4GB * Refer to support page for more information Expansion Slots Total Slot : 2 Slot Location 4 : PCI-E x8 (Gen4 X4 Link) Slot Location 6 : PCI-E x16 (Gen4 X16 Link) Form Factor U ATX (9.6"x9.6", 244mm x 244mm) Storage Storage Controller : 6 x SATA3 6Gb/s ports 1 x M.2 connector (2280/2260/2242) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card Networking 2 x Intel® I210AT + 1 x Mgmt LAN Graphic Aspeed AST2600 with 64MB VRAM On Board I/O 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x USB3.2 Gen2 ports 1 x USB3.2 Gen1 header 1 x USB 2.0 pin header 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 1 x Serial Port Header 1 x M.2 Connector 1 x VGA Header 1 x Onboard header for optional management card Back I/O Ports 2 x USB 3.2 Gen 2 1 x VGA Port (VGA from BMC) 1 x HDMI Port (useable only with iGPU) 2 x GbE LAN + 1 x Mgmt LAN Management Solution ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet Weight Gift Box (1-in-1) Net Weight : 0.76 KG Gross Weight : 1.3 KG Bulk Pack (10-in-1) Net Weight : 6.9 KG Gross Weight : 9.5 KG Environment Operation temperature: 10? ~ 50?* Non operation temperature: -40? ~ 70? Non operation humidity: 20% ~ 90% ( Non condensing) *The boundary condition above is based on 8.3W of PCH TDP spec . If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference. Accessories Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 6 x SATA 6G cables 4 x Plate for LGA1200 Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1200 Monitoring CPU Temperature Fan RPM Note *1.VGA from BMC *2.HDMI (useable only with iGPU)
