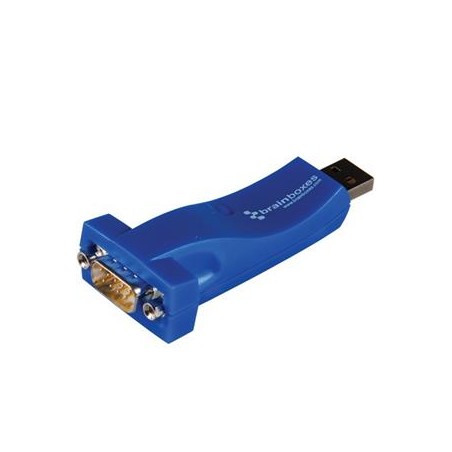

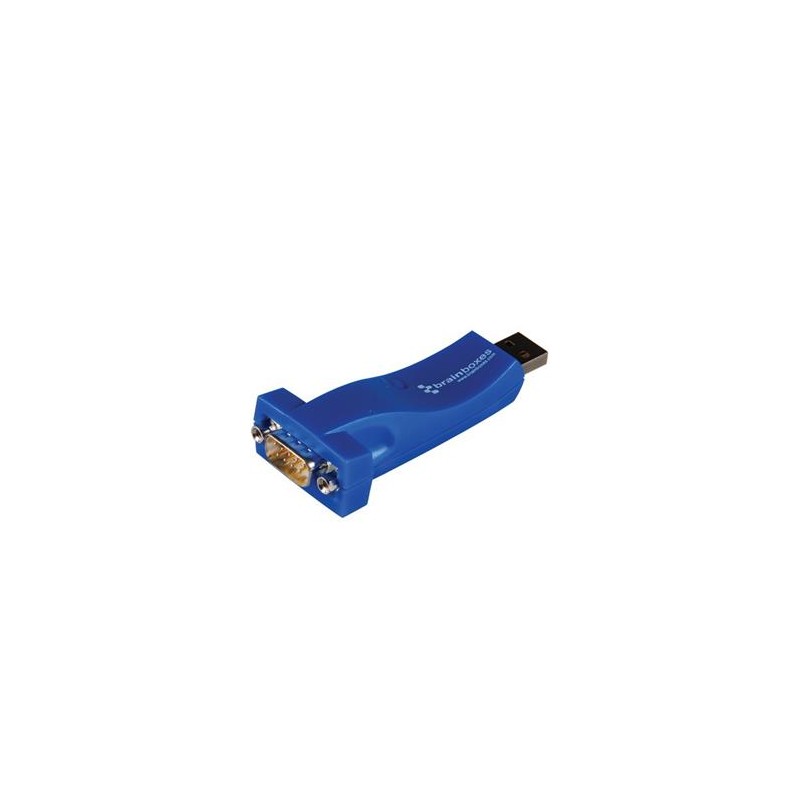

Lenovo adaptér Serial Brainboxes US-101 USB - seriový port RS232/DB9
search
  • Lenovo adaptér Serial Brainboxes US-101 USB - seriový port RS232/DB9

Lenovo adaptér Serial Brainboxes US-101 USB - seriový port RS232/DB9

1 531 Kč
S DPH

Momentálně nedostupné

Kód: 78Y2361

  • Barva: Modrá
  • Hmotnost: 25 g
  • Konektor 1: Sériový
  • Konektor 2: USB A
  • Pohlaví konektoru 2: Male
  • Pohlaví konektoru 1: Muži
Všechny parametry
Port Ports1 ProtocolRS232 ConnectorDB9 Connector - 9 Pin Male Tx FIFO Size128 Rx FIFO Size256 Operating DistanceEIA - RS232 Standard CableUSB extender cable (0.25 metre ~ 1ft) Port Settings Max Baud Rate921,600 Data Bits7 or 8 ParityOdd, Even,

Popis

Port Ports1 ProtocolRS232 ConnectorDB9 Connector - 9 Pin Male Tx FIFO Size128 Rx FIFO Size256 Operating DistanceEIA - RS232 Standard CableUSB extender cable (0.25 metre ~ 1ft) Port Settings Max Baud Rate921,600 Data Bits7 or 8 ParityOdd, Even, None, Mark or Space Stop Bits1 or 2 Tx/Rx ModesPoint to Point General PCB Layers4 Industrial StandardNo Power Consumption 40mA @ 5V Product Weight 0.024 kg, 0.05 pounds Product Dimensions 89(l) x 35(w) x 20(h) mm Podporované OS : Windows XP, Vista, 7, Server 2008, Server 2003, Linux, Mac OS X

Parametry

BarvaModrá
Hmotnost25 g
Konektor 1Sériový
Konektor 2USB A
Pohlaví konektoru 2Male
Pohlaví konektoru 1Muži
Poskytovaný operační systémWindows XP, Vista, 7, Server 2008, Server 2003, Linux, Mac OS X
Rozměry (š x h x v)90 x 35 x 20 mm
