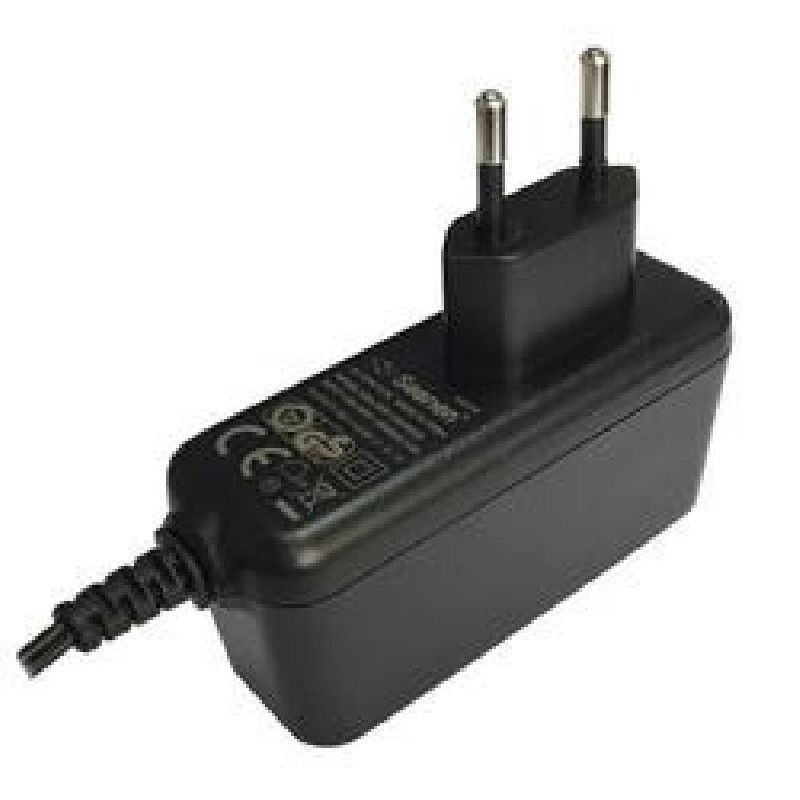

Napájecí zdroj 12V 2A 24W (ALIX, APU)

Napájecí zdroj 12V 2A 24W (k zařízení ALIX, APU) - jack 2.5/5.5 mm Kompaktní velikost AC zdroje šetří místo. Adaptér se hodí k napájení zařízení ALIX.1E a APU, který vyžaduje napájení 12V. Vstupní napětí: 100-240 V AC, 50/60 Hz Výstupní napětí: 12 V DC, 2000mA. Parametry a specifikace • Spec: Compact size AC adapter, saves space on power strips. Input voltage 100-240 V AC, 50/60 Hz. Output voltage 12 V DC, maximum current 2A. High efficiency. Jack inner diameter 2.5 mm, outer diameter 5.5 mm, center positive • Compliance: CE marked • Note: This adapter is best for use with ALIX.1 and APU boards, which require 12V power. Will work, but not the most reliable contact for other ALIX boards, which have a 2.1 mm instead of 2.5 mm jack • Note: ALIX boards have very low ESR input capacitors. To avoid arcing on the DC jack, please plug in the DC jack first, then plug the AC adapter into mains 1) Rated Input: 100-240V AC, 50/60Hz 2) Operating range: 90-264V AC, 47-63Hz 3)Output: 12VDC 2A 24W 4) RoHS, PAHs, REACH, WEEE compliant 5) Energy efficiency: DOE VI, COC Tire 2 6) Input current: 0.25A max 7) Power consumption (no loading): 0.075W Max 8) Leakage Current: 0.25mA max 9) Load regulation: ± 5% 10) Ripple and noise: <150MVP-p 11) MTBF: 50K hours at 25'C 12) Safety standard: EN 60950-1, CSA C22.2, UL60950
