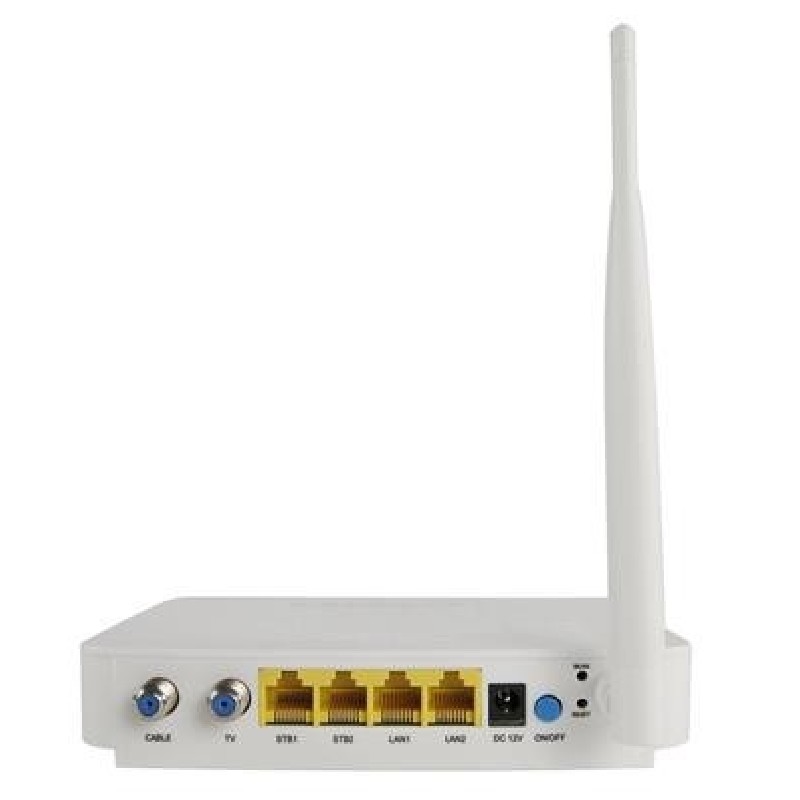

Wodaplug EOC Slave+2*2 11n WiFi EOC1121R4WL-R, 600Mbps,4*LAN,2*F

Jednotka EoC slave s WiFi je určena pro koncové uľivatele, kteří ji chtějí vyuľít i jako WiFi router s NAT a nebo Brdige, spolupracuje s EoC master jednotkou na navázání spojení a přenosu sítě Ethernet přes koaxiální rozvod. Z mixed signálu opět převede data na výstup Ethernet+WiFI a signál TV na výstup TV. Vlastní IP adresa. Specification Item Specification - Model Number - EOC1121R4WL-R Chipset Reaktek, RTL8198 Protocol EOC standard : HomePlug AV/ IEEE P1901(Draft); Etherent protocol > IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x,HTTP, SNMP, TELNET Phisycal Speed 600Mbps Modulation Bandwidth 7.5 MHz~65 MHz Modulation Technology OFDM-2690-carriers,4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO Max. Slave number 256 Encryption mode 128-bit AES encrypted VLAN Support max. 16 VLANs Limitation of port speed Support minimum 64Kbps granularity QoS Support VLAN priority Working mode CSMA/CA Multicast support Support IGMP manage Multicast diagram Management mode Support SNMP, WEB, CLI multi-managed mode Interface Features Ethernet Interface 4*10/100M Ports Coax. Cable Interface 1*Female Connector, IP signal output LED Indication Ethernet Network connection indicator Power Power connection indicator Data Cable connection indicator RF Performance Impedance 75Ohm Transmit Power 0±3dBm Reflection loss >16dB Insertion loss less than 1dB Receiving sensitivity -65dB Electrical Characteristics Power Consumption ?5W Power Supply 12VAC/5A Environment Features Working Temperature 0?~50? Storage Temperature -40?~80? Working Humidity 10%~90%, non-condensation Storage Humidity 5%~90%, non-condensation Environmental standards RoHS
