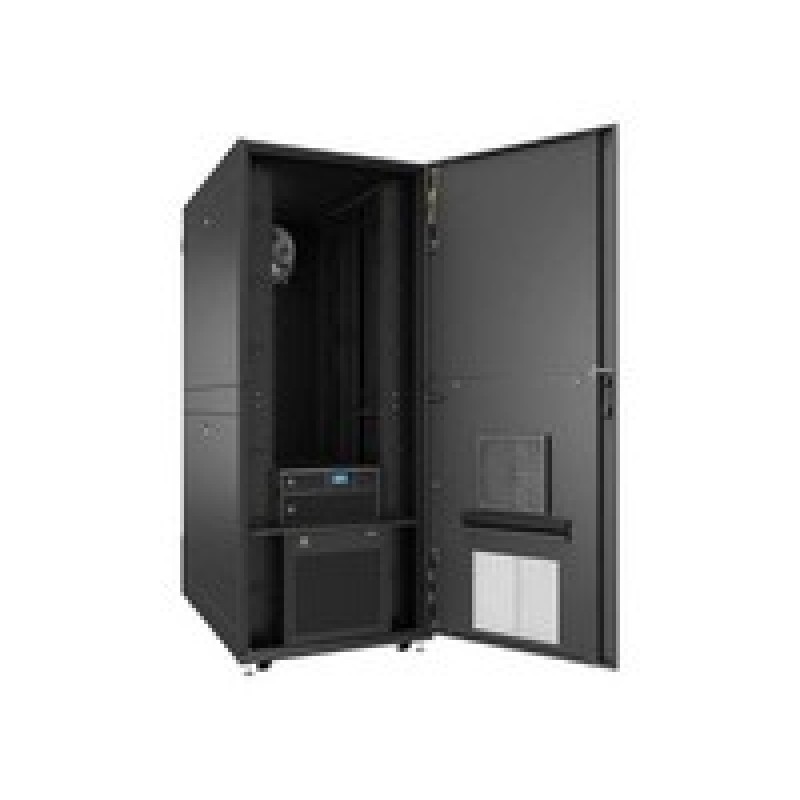

VRC-S INTEGRATED MICRO DATA CEN/CENTER 42U 800X1200 WITH 3.5KW S VRCS3350230VSU

The Vertiv VRC-S VRCS3350-230VSU offers a complete micro data center solution to rapidly convert unconditioned areas into a pre-engineered edge IT space for your critical IT infrastructure. The unit is completely factory integrated. This solution consists of a cabinet based on VR3350 rack (42 U, 1200 mm deep, 800 mm wide) with a pre-installed and pre-filled 3,5 kW split cooling module (VRC202KIT-N) that provides cool air directly to your critical IT gear. This VRCS3350-230VSU includes an outside condenser unit for a minimum ambient temperature of down to -15 °C. It removed the heat outside the building shell. The connection of the two cooling elements is not included. The rack system separates the cool air in the front from hot exhaust air in the rear. The cooling system is backed up with an independently controlled emergency fan. The Vertiv VRC-S also has an intelligent single phase Vertiv Geist rPDU GU30017L (switched and monitored on outlet level), 32 A, 230 V, vertical mounted with locking IEC60320 C13 (20) and C19 (4) receptables, rack temperature sensor (1), 2,5 m external power cord and an IEC60309 2P + E 32 A plug. The PDU is connected to temperature and door contact sensors. For premium power outage protection and continuous power conditioning a 6 kVA Liebert® GXT5 UPS, a single phase online double conversion UPS with a network card is installed in this micro data center. The entire system can be managed through a single IP address with Vertiv Intelligence Director. The VRC-S includes a 3 years warranty on the entire system with product registration. Vertiv offers optional installation and preventative maintenance services. It is ideal for network closets, small computer rooms, and edge computing spaces.
