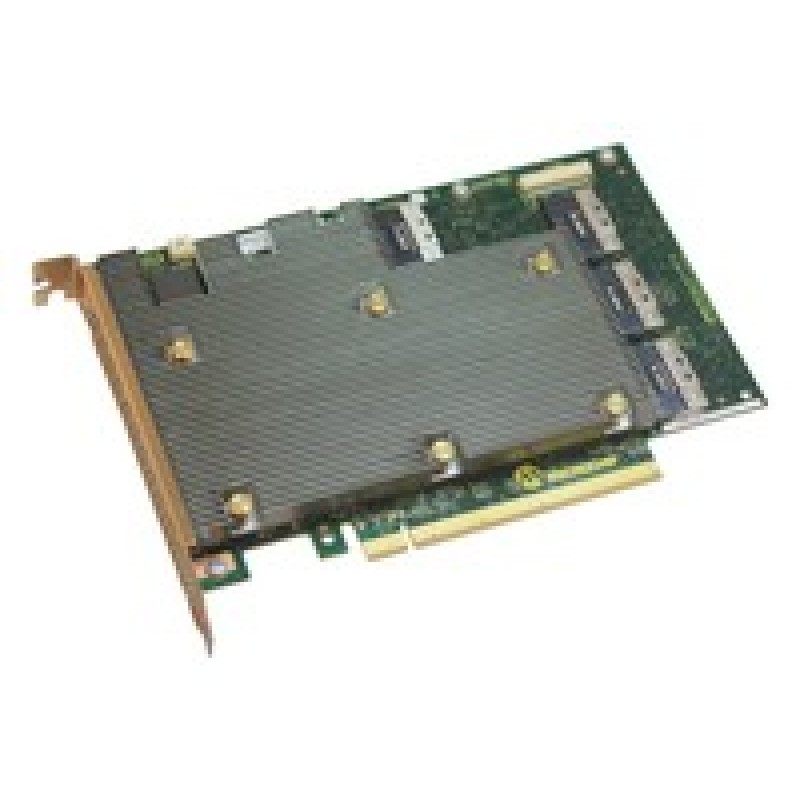

HPE SR932i-p Gen10+ Controller
search
  • HPE SR932i-p Gen10+ Controller

HPE SR932i-p Gen10+ Controller

Certifikace EMC, CE, CNS, CT, FC, IC, KC, VC, EMC Doc, CE, C-tick, FCC, KCC, VCCI, BSMI, UL, EN 60950 and 62368, AU_NZ LoA and SDoC, RoHs, TW and EU / Hmotnost 312 g / Šířka 167.65 mm / Výška 111.15 mm / Vnitřní paměť 8 GB / Typ vnitřní paměti DDR4-SDRAM

Všechny parametry
236 436 Kč
S DPH

195 402 Kč bez DPH

Momentálně nedostupné

Poptat tento produkt

Kód: P04220B21 Výrobce: HPE EAN: 0190017282763

Popis

Do your SMB and enterprise-level applications require a flexible controller with increased performance reliability, security, and efficiency to address your evolving data storage needs? The HPE SR Gen10 Plus Controllers support 12 Gb/s SAS and PCIe 4.0 for increased performance while supporting advanced RAID levels with up to 8 GB flash-backed write cache (FBWC). These tri-mode (SAS/SATA/NVMe) controllers operate in Mixed Mode which combines RAID and HBA operations simultaneously, giving you improved deployment flexibility. The HPE SR Gen10 Plus Controllers portfolio provides the ability to support internally attached drives, allowing integration with existing hardware. These controllers also feature HPE SmartRAID SR Secure Encryption for data-at-rest using Controller-Based Encryption(CBE) for SAS, SATA and NVMe devices which improves reliability.

What is new supporting point:
High-speed 144b DDR4 8 GB cache with integrated cache protection to accelerate RAID and cache performance in the SR932i-p.
Supports Hardware Root of Trust.
Integrated Switchtec™ PCIe switch enabling increased performance and reduced latency access to NVMe storage devices for HBA and RAID modes.
IImpressive RAID 5 Write Performance: Up to 12 GB/s throughput and up to 850K IOPs with the SR932i-p.

Parametry

CertifikaceEMC, CE, CNS, CT, FC, IC, KC, VC, EMC Doc, CE, C-tick, FCC, KCC, VCCI, BSMI, UL, EN 60950 and 62368, AU_NZ LoA and SDoC, RoHs, TW and EU
Hmotnost312 g
Šířka167.65 mm
Výška111.15 mm
Vnitřní paměť8 GB
Typ vnitřní pamětiDDR4-SDRAM
Typ skříně(MR416i-p Gen10 Plus / MR216i-p Gen10 Plus) – Standard HHHL PCIe plug-in Controller (MR416i-a Gen10 Plus / MR216i-a Gen10 Plus) – Type-a Modular Controller
Verze slotů PCI Express4.0
Hostitelské rozhraníPCI Express
Podporovaná rozhraní úložných diskůSAS,Serial ATA III
Úrovně RAID0,1,5,10,6,50,60,1 ADM,10 ADM
Přenosová rychlost dat46 Gbit/s
Doplňkové funkceSee HPE SR Gen10 Plus Controllers QuickSpecs for additional detail.
Vnitřní porty32 internal tri-mode ports (SlimSAS SFF-9402 connectors supporting U.2 and U.3) supporting up to 32 direct-connected SAS/SATA/NVMe devices
