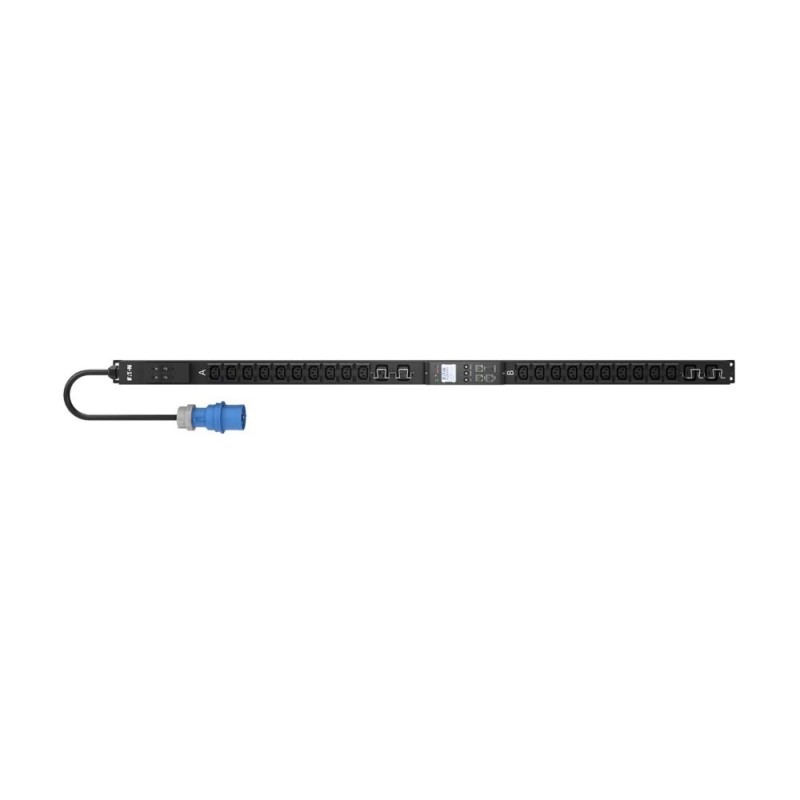

EATON FlexPDU G2: Měřený vstup 0U, In: IEC 60309 32A 1P - Out: 20xC13:4xC19

FLXTMI132C2 Kód modelu: PDU FLXG2 MI 0U 309 1P 32A 20xC13,4xC19 Eaton Metered Input FlexPDU Gen2, 0U, 31U, IEC60309 input, 3m cord, 1ph, 7.4kW, 32A, 200-240V, 24 outlets (20)C13, (4)C19 General specifications Product Name Eaton Flex PDU G2 Catalog Number FLXTMI132C2 EAN 3553340697401 Product Length/Depth 44.4 mm Product Height 1337 mm Product Width 52 mm Product Weight 3.5 kg Compliances LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Certifications EN IEC 63000 EN 55032 RCM Ukr CE EAC Cm IEC 62368-1 Model Code PDU FLXG2 MI 0U 309 1P 32A 20xC13,4xC19 Technické údaje produktu Special features Locking outlets Pure copper used for main circuit conductors Hydraulic-magnetic circuit breakers (models ? 32A) provided High-temperature resilience up to 50°C Measurement accuracy ±1% Ethernet port speed 10/100 Mbs Supported protocols and standards: HTTPS, SSH v2, SNMP, SMTP, DHCP, RADIUS, NTP, TELNET, as well as IPv4 and IPv6 Full-featured network management through Web or SNMP Hot-swappable network Management module Metered input measurement (current, power, energy consumption, power factor, etc.) Type Rack PDU Form factor 0U (Vertical) Outlet control No Package contents Rack PDU Mounting accessories Quickstart guide Safety Instructions Operating Temperature 32° to 122°F (0° to 50°C) Mounting direction Vertical Color Black Input connection IEC-60309 32A BLUE (2P+E) Cord length 3m Wattage 7.4 kW max Amperage Rating 32 A Electric current - max 32 A Input voltage 200-240V Phase Single-phase Frequency rating 50/60 Hz Outlets 24 outlets (20)C13 (4)C19 Number of Outputs 5-15R 0 Number of Outputs 5-20R 0 Number of Outputs 6-15R 0 Number of Outputs 6-20R 0 Number of Outputs L14-30R 0 Number of Outputs L5-20R 0 Number of Outputs L5-30R 0 Number of Outputs L6-20R 0 Number of Outputs L6-30R 0 Number of Outputs C13 20 Number of Outputs C19 4 Number of Outputs C20 0 Number of outputs hardwired 0 Num of Outputs PC (SCHUKO) 0 Number of outputs (other) 0 Number of outlets with earth pin 24 No of Outlet Suisse Stndrd Type13 0 No of Outlet Suisse Stndrd Type15 0 No of Outlet Suisse Stndrd Type23 0 No of Outlet Suisse Stndrd Type25 0 Number of UK BS1363 sockets 0 Circuit breaker (2) single-pole SNMP Yes Ethernet interface Yes Electrical connection Connecting cord with plug Evaluation Other Mounting Dimension (metrical) 1337 Mounting dimension (standardized) Other Switchable No Over voltage category 2 Fitted with: Display LED indication Fuse Mounting material Communication Yes With surge protection module No Amperemeter Yes Number of USB connections 1 Number of RJ45 sockets 3
