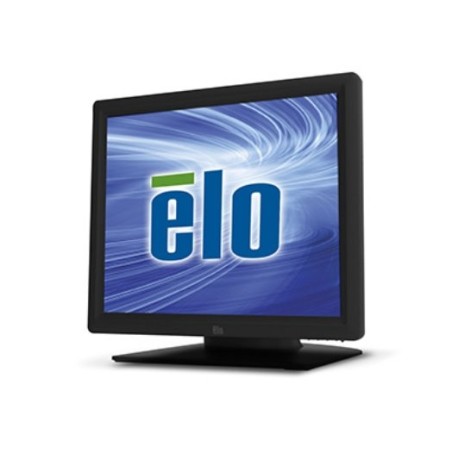

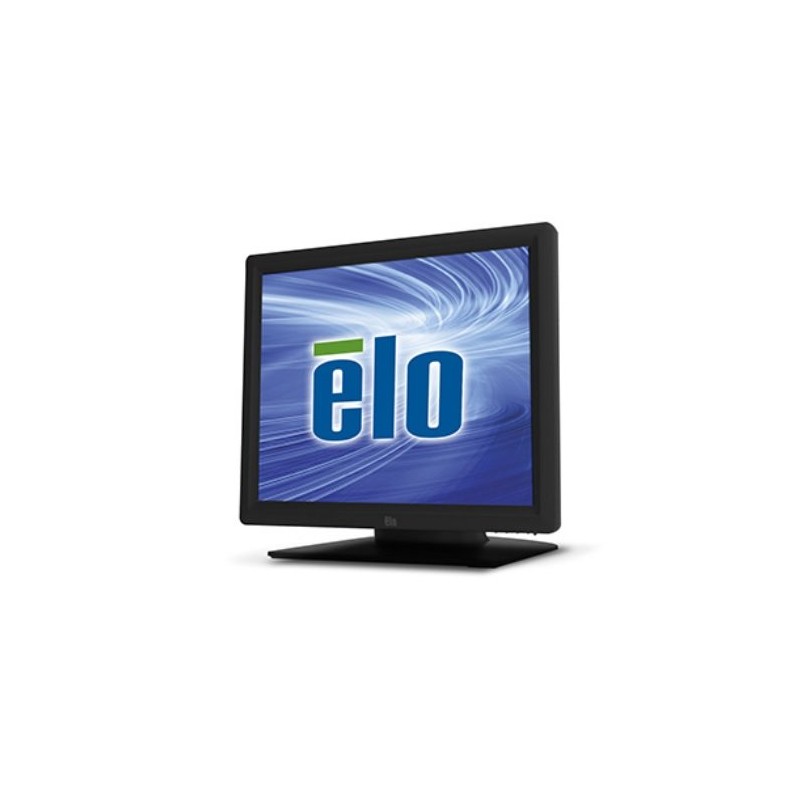

1517L 15-inch LCD (LED Backlight) Desktop, WW, AccuTouch (Resistive) Single-touch, USB & RS232 Controller, Anti-glare, Bezel
14 726 Kč
S DPH
Skladem
Kód: E523163
- Barva: Černá
- Úhlopříčka displeje: 15"
- Rozlišení displeje: 1024 x 768 pixels
- Nativní poměr stran: 4:3
- Rozhraní upevnění panelu: 75 x 75 mm
- Typ panelu: LCD
15.0" TFT, 1024 x 768px, 16 ms, 700:1, 200 cd/m², black
Popis
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
- Sleek and thin design with “built for touch” reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
- Sleek and thin design with “built for touch” reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15” diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.
Parametry
| Barva | Černá |
|---|---|
| Úhlopříčka displeje | 15" |
| Rozlišení displeje | 1024 x 768 pixels |
| Nativní poměr stran | 4:3 |
| Rozhraní upevnění panelu | 75 x 75 mm |
| Typ panelu | LCD |
| Dotyková obrazovka | Ano |
| Tvar obrazovky | Plochý |
| Vodorovný pozorovací úhel | 160 ° |
| Svislý pozorovací úhel | 150 ° |
| Provozní rozsah teplot (T-T) | 0 - 40 °C |
| Rozsah teplot při skladování (T-T) | -20 - 60 °C |
| Doporučená provozní relativní vlhkost | 20 - 80 % |
| Rozsah relativní vlhkosti při skladování (H-H) | 10 - 90 % |
| Počet HDMI portů | 0 |
| Počet připojení DisplayPorts | 0 |
| Vstupní střídavé napětí | 100 - 240 V |
| Nastavení výšky | Ano |
| Frekvence vstupního střídavého napětí | 50 - 60 Hz |
| Rozlišení | 1024x768 |
| Typ displeje | LCD TN |
| Dotykový displej | ano |
| Kontrast | 200:1 – 1 000:1 |
| Šířka balení | 487 mm |
| Hloubka balení | 231 mm |
| Výška balení | 485 mm |
| Hmotnost balení | 7300 g |
| USB port | Ne |
| Dotyková technologie | AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch) |
| Reproduktory | Ne |
| Technologie | LCD dotykový |
| Integrovaný TV tuner | Ne |
| Jas | 250 cd/m2 |
| Odezva | 8 ms |
| Kontrastní poměr (typický) | 800:1 |
| Maximální rychlost obnovy | 60 Hz |
| Jas displeje | 200 cd/m² |
| Konektor displeje | NE |
| Spotřeba energie (typická) | 12 W |
| Typ napájecího zdroje | AC/DC |
| Kód harmonizovaného systému | 85285210 |
| LED podsvícení | Ano |
| Střední doba mezi poruchami (MTBF) | 50000 h |
| Počet barev displeje | 16.2 million colours |
| Podporovaná grafická rozlišení | 720 x 400,1024 x 768 (XGA),640 x 480 (VGA),800 x 600 (SVGA) |
| Vertikální rozsah skenování | 56 - 75 Hz |
| Jazyky On Screen Display (OSD) | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN |
| Šířka se stojanem | 358 mm |
| Hloubka se stojanem | 197 mm |
| Hmotnost (se stojanem) | 4300 g |
| Výška (se stojanem) | 319 mm |
| RJ45 | Ne |
| Formát zobrazení | 4:3 |
| VGA | Ano |
| Port DVI | Ne |
| HDMI počet | 0 |
| Povrch displeje | Matný |
| Pivot | Ne |
| USB-C zpětné nabíjení ntb | Ne |
| USB-C integrovaná dokovací stanice | Ne |
| Prohnutá obrazovka | Ne |
| Podpora VESA | Ano |
| Horizontální rozsah snímání | 31.5 - 60 kHz |
| Počet jazyků OSD | 8 |
| Viditelná plocha displeje (ŠxV) | 304 x 228 mm |
| Rozměry (Š x H x V) se stojanem | 358 x 197 x 319 mm |
| Tolerance napětí | 5 % |
