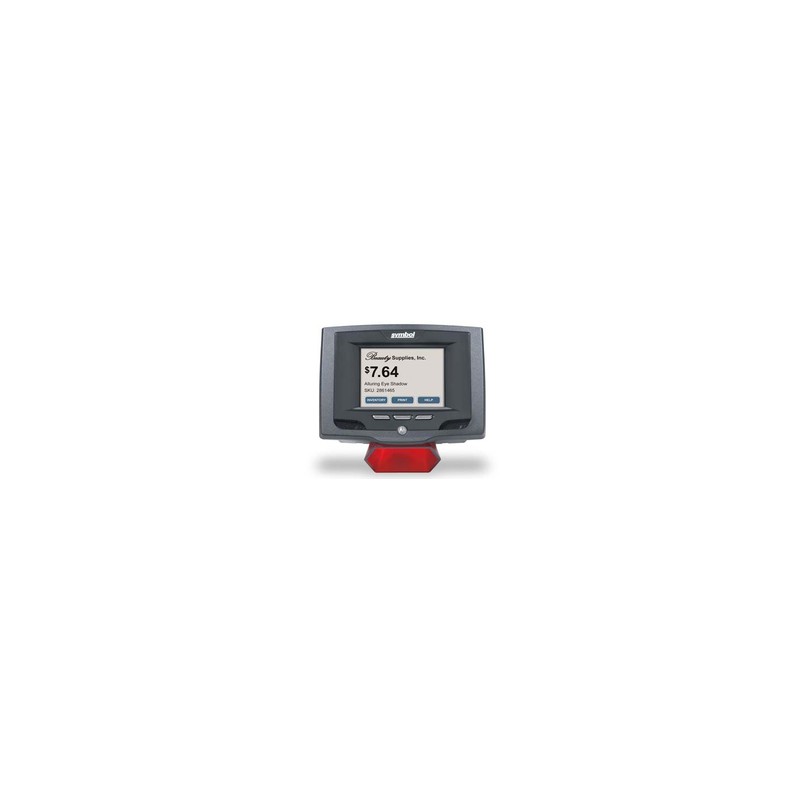

Zebra MK500 Wired Ethernet Laser/W/Touch

MK500 Micro Kiosk
Improve customer service and the customer experience with the latest innovation in self-service technology, Motorola’s MK500 Micro Kiosk. This compact, easy-to-install and affordable device allows retailers to put the power of self-service in every aisle or department. So, no matter where in the store your customers might be, help is never more than a few steps away.

Customers can check price and inventory, check the balance on a gift card, look up a loyalty point balance, determine the location of a product and call for assistance — all with the scan of a bar code or press of a button or touchpad. In addition, the MK500 easily connects to third-party small mobile printers.

Compact 5.6 in. x 5.1 in. form factor with a slim 1.7 in./4.2cm profile
Easy to deploy virtually anywhere in the store — from aisle end-caps to shelves, poles and walls.

Compliant with VESA standard mounting
Support for standard VESA brackets enables easy mounting of the MK500 on shelves, walls and other store locations.

Marketing and signage flexibility
Easy to attach and change signage; allows retailers to draw attention to and better ‘advertise’ the benefits of the MK500 as well as provide other customer-facing information.

3.5 in./8.9cm color QVGA touch screen plus three programmable buttons
Enables deployment of easy-to-use and very intuitive interactive applications.

Microsoft® Windows® CE.NET 5.0
Standard operating system reduces application development time.

XScale™ 520 MHhz processor; 64MB Flash/64MB RAM; Micro SD slot
High performance architecture provides upport for the most demanding applications.

Integrated support for: Internet Explorer 6.0; Symbol Pocket Browser; Visual Studio .Net 2005; SMDK for C, .NET and Java
Enables rapid and cost-effective development of sophisticated applications.

Ease of use
Intuitive aiming pattern enables easy scanning of bar codes.

Compatible with Motorola’s Mobility Software Platform (MSP)
Ability to remotely stage, provision, monitor and troubleshoot devices dramatically simplifies and reduces the costs associated with deployment as well as day-to-day management.

Mini USB
Expandable — can easily build on this solution by adding third-party USB peripherals, including printers, magnetic stripe readers, keyboards and more.

Multimedia support with stereo speakers
Enables high quality audio and video for highly visual advanced applications.
