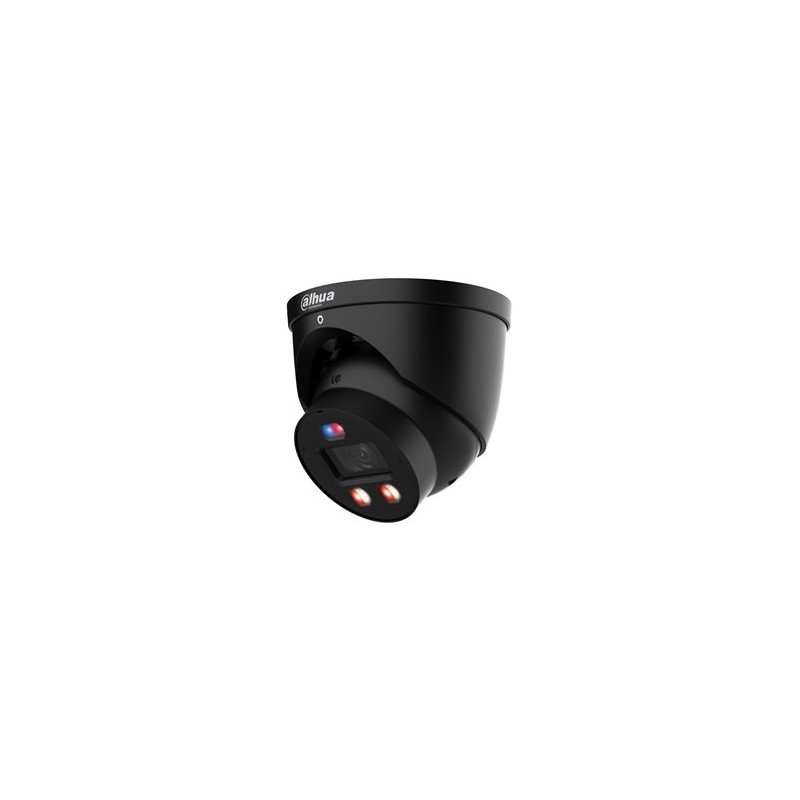

Dahua IP kamera IPC-HDW3449H-AS-PV-0280B-PRO-Black

14 908 Kč

S DPH

Momentálně nedostupné

Kód: IPCHDW3449HASPV0280BPROBLACK

Stupeň krytí IP: IP67
Výkyvný/otočný: Ne
Objektiv: 2,8mm
PoE napájení: ANO
Video kodeky: H265+
Dosvit přísvitu (m): 30

Všechny parametry

eerná 4Mpix, 30m IR a 30 m bílé LED, WizColor, SMD 4.0, AcuPick, aktiv

Popis

Dahua IPC-HDW3449H-AS-PV-0280B-PRO-Black
4Mpix, 30m IR a 30 m bílé LED, WizColor, SMD 4.0, AcuPick, aktivní odstrašení
cerná barva

4-MP
1/1.8" CMOS senzor
4 MP (2688 ×1520)@25/30 fps.
Smart kodeky H.264+/H.265+, AI H.264/H.265
WDR, 3D NR, HLC, BLC
Krytí IP67
12 VDC/PoE

Intelligence
IVS (Perimeter Protection)																		Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm.
SMD																		SMD 4.0
AcuPick																		Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA																		Yes
Face Detection (Full Image)																		Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Smart Search																		Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Port
Audio Input																		1 channel (RCA port)
Audio Output																		1 channel (RCA port)
Alarm Input																		1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output																		1 channel out: wet contact, max load 300 mA 12 VDC
Certification
Certifications																		CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Function
Image Setting																		Brightness; Contrast; Sharpness; Saturation; Gamma
OSD Overlay																		Time; channel; location; privacy masking; picture; custom
Record Mode																		Manual record; video detection record; schedule record; alarm record Record priority: Manual>alarm record>video detection>schedule
Micro SD Card (Max.)																		512 GB
Default																		Support one-click restore
User Management																		Up to 20
Security Mode																		User name and password; MAC address; HTTPS; IEEE802.1x; network access control
Low Illuminance Level																		Ultra Starlight
Video
Video Compression																		H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
AI Coding																		AI H.265; AI H.264 *includes SmartCodec Technology,Smart H.264+ /H.265+
Video Frame Rate																		Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 1920 × 1080@(1–25/30 fps) third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability																		3 streams
Resolution																		4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control																		VBR; CBR; ABR
Video Bit Rate																		H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps
Day/Night																		Auto(ICR)/Color/B/W
BLC																		Yes
HLC																		Yes
WDR																		120 dB
Scene Self-adaptation (SSA)																		Yes
White Balance																		Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control																		Auto/Manual
Noise Reduction																		3D NR
Motion Detection																		OFF/ON (4 areas, rectangular)
Default Bit Rate with Default Resolution																		2560 kbps (2688 × 1520)
Region of Interest (RoI)																		Yes (4 areas)
Smart Illumination																		Yes
Smart Dual Light																		Yes
Defog																		Yes
Image Rotation																		0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror																		Yes
Privacy Masking																		8 areas
LDC																		Yes
Language																		English; Traditional Chinese; Italian; Spanish (South American); Japanese; Russian; French; German; Portuguese; Turkish; Polish; Romanian; Hungarian; Korean; Czechish; Dutch; Ukrainian; Vietnamese; Arabic; Spanish (Europe); Hebrew; Thai; Bahasa Indonesia
Alarm
Alarm Event																		No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network Port																		RJ-45 (10/100 Base-T)
SDK and API																		Yes
Network Protocol																		IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability																		ONVIF (Profile S & Profile G & Profile T); CGI
User/Host																		20 (Total bandwidth: 64 M)
Storage																		FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser																		IE: IE11; Chrome; Firefox
Management Software																		Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client																		iOS; Android
Security																		Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning
Environment
Operating Temperature																		–40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity																		≤95% (RH), non-condensing
Storage Temperature																		–40 °C to +55 °C (–40 °F to +131 °F)
Storage Humidity																		≤95% (RH), non-condensing
Protection																		IP67
Anti-corrosion Level																		Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Lens
Lens Type																		Fixed-focal
Lens Mount																		M16
Focal Length																		2.8 mm
Max. Aperture																		F1.0
Field of View																		H: 111°; V: 60°; D: 135°
Iris Control																		Fixed
Close Focus Distance																		1.7 m (5.58 ft)
DORI Distance																		D: 56.6 m; O: 22.6 m; R: 11.3 m; I: 5.7 m (D: 185.70 ft; O: 74.75 ft; R: 37.07 ft; I: 18.70 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Camera
Appearance																		Eyeball
Image Sensor																		1/1.8" CMOS
Pixel																		4 MP
Max. Resolution																		2688 (H) × 1520 (V)
ROM																		256 MB
RAM																		1 GB
Scanning System																		Progressive
Electronic Shutter Speed																		Auto/Manual 1/3 s–1/100,000 s
Min. Illumination																		0.0001 lux@F1.0 (Color, 30 IRE) 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio																		>56 dB
Illumination Distance																		Up to 30 m (98.43 ft) (IR); Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control																		Auto; Manual
Illuminator Number																		2 (Multi-core (IR + warm) light)
Angle Adjustment																		Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Built-in Battery																		Support 1 mAH rechargeable button lithium battery
Audio
Built-in MIC																		Yes, built-in dual Mic
Built-in Speaker																		Yes, built-in speaker
Audio Compression																		PCM; G.711a; G.711Mu; G.726; G.723
Audio Sampling																		8 kHz; 16 kHz; 32 kHz; 48 kHz; 64 kHz
Structure
Casing Material																		Metal
Product Dimensions																		F122.0 mm × 116.1 mm (F4.80" × 4.57")
Packaging Dimensions																		156 mm × 156 mm × 137 mm (6.14" × 6.14" × 5.39") (L × W × H)
Net Weight																		0.8 kg (1.76 lb)
Gross Weight																		1.0 kg (2.20 lb)
Installation																		Junction mount; ceiling mount; wall mount; pole mount (vertical)
Power Adapter																		Optional
Lens																		Included
Power
Operating Voltage																		12 VDC (±30%); PoE (802.3af)
Power Supply																		12 VDC; PoE (802.3af)
Power Consumption																		Basic: 3.3 W (12 VDC), 4.5 W (PoE); Max.: 7.4 W (12 VDC), 8.7 W (PoE) (H.265 + WDR+ warm light + siren and light active deterrence + intelligence on)

Parametry

Stupeň krytí IP	IP67
Výkyvný/otočný	Ne
Objektiv	2,8mm
PoE napájení	ANO
Video kodeky	H265+
Dosvit přísvitu (m)	30
Provedení kamery	Turret
Rozlišení kamery (Mpx)	4
