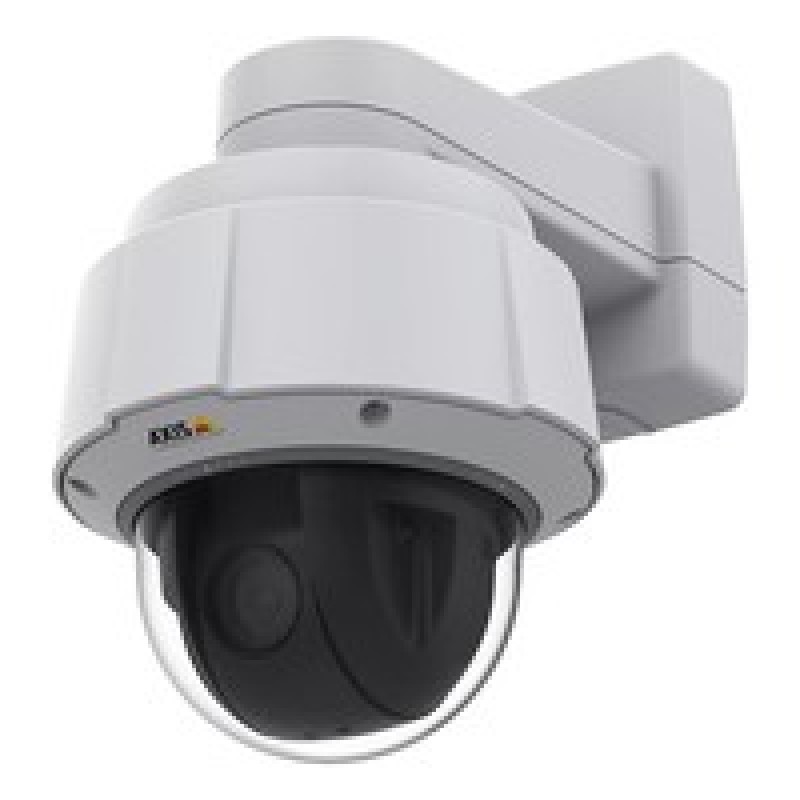

Axis Communications AXIS Q6074-E 50 HZ NM Top/Performance PTZ Camera W/ HDTV 7
Technologie propojení Drátové / Barva Černá, Bílá / Typ Bezpečnostní IP kamera / Stupeň krytí IP IP66, IP67 / Formát Kuželovitý / Hmotnost 3750 g
Všechny parametryKód: 01973301 Výrobce: Axis Communications EAN: 7331021088559
Popis
AXIS Q6074-E PTZ Network Camera
This robust, high-performance PTZ camera offers superior light-sensitivity for clear, sharp overviews and excellent details in demanding light conditions. It’s ideal for mission-critical surveillance in wide, outdoor areas such as cities, industrial and critical infrastructure applications. Featuring the new generation Axis chip, it includes enhanced security features such as signed firmware and secure boot.
Superior details in demanding light conditions
AXIS Q6074-E offers HDTV 720p resolution that delivers superior video quality and 30x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.
Whenever, wherever it’s needed
This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.
Keeping you secure
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn’t been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
This robust, high-performance PTZ camera offers superior light-sensitivity for clear, sharp overviews and excellent details in demanding light conditions. It’s ideal for mission-critical surveillance in wide, outdoor areas such as cities, industrial and critical infrastructure applications. Featuring the new generation Axis chip, it includes enhanced security features such as signed firmware and secure boot.
Superior details in demanding light conditions
AXIS Q6074-E offers HDTV 720p resolution that delivers superior video quality and 30x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.
Whenever, wherever it’s needed
This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.
Keeping you secure
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn’t been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
Parametry
| Technologie propojení | Drátové |
|---|---|
| Barva | Černá, Bílá |
| Typ | Bezpečnostní IP kamera |
| Stupeň krytí IP | IP66, IP67 |
| Formát | Kuželovitý |
| Hmotnost | 3750 g |
| Typ montáže | Stěna |
| Typ senzoru | CMOS |
| Výška | 271 mm |
| Maximální rozlišení | 1280 x 720 pixels |
| Wi-Fi | Ne |
| Bluetooth | Ne |
| Síťové standardy | IEEE 802.1x,IEEE 802.3at |
| Připojení na síť Ethernet | Ano |
| Integrovaná čtečka karet | Ano |
| Vnitřní paměť | 1 GB |
| Počet portů Ethernetu (RJ-45) | 1 |
| Typ zdroje | AC,PoE |
| Provozní rozsah teplot (T-T) | -20 - 50 °C |
| Rozsah teplot při skladování (T-T) | -40 - 65 °C |
| Doporučená provozní relativní vlhkost | 10 - 100 % |
| Rozsah relativní vlhkosti při skladování (H-H) | 5 - 95 % |
| Průměr | 232 mm |
| Návod na použití | Ano |
| Vstupní střídavé napětí | 100 - 240 V |
| Záruční doba | 5 year(s) |
| Podporované umístění | Vnitřní/venkovní |
| PTZ ovládání | Ano |
| Zoom | Ano |
| Noční vidění | Ano |
| Kompatibilní paměťové karty | SD, SDHC, SDXC |
| Spotřeba energie (typická) | 14 W |
| Počet kamer | 1 |
| Model procesoru | ARTPEC-7 |
| Digitální zoom | 12 x |
| Neobsahuje | PVC |
| Podporovaná grafická rozlišení | 320 x 180,1280 x 720 (HD 720) |
| Rozsah úhlu náklonu | 0 - 220 ° |
| Ochrana heslem | Ano |
| Podporované video režimy | 720p |
| Spotřeba energie (maximální) | 66.1 W |
| Podporované síťové protokoly | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP |
| Flash paměť | 512 MB |
| Materiál krytu | Hliník,Polykarbonát (PC) |
| Snímková frekvence | 60 fps |
| Podpora QoS | Ano |
| Filtrování IP adres | Ano |
| Podporované jazyky | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS |
| Provedení kamery | PTZ |
| Minimální osvětlení | 0.002 lx |
| Počet senzorů | 1 |
| Velikost optického senzoru | 1/2.8 " |
| Progresivní skenování | Ano |
| Počet čoček | 1 |
| Streamování videa | Ano |
| Nastavení kvality obrazu | Brightness,Colour depth,Sharpness |
| Detekce pohybu ve videu | Ano |
| Optický zoom | 30 x |
| Spotřeba energie (PoE) | 60 W |
| Automatické zaostřování | Ano |
| IK kód | IK10 |
| Počet jazyků | 11 |
| Minimální clona | 1.6 |
| Rozsah ohniskové vzdálenosti | 4.25 - 127.5 mm |
| Typ rozhraní Ethernet | Fast Ethernet |
| Nahrávání videa | Ano |
| Typ upozornění | |
| Automatické sledování | Ano |
| Přednastavené body | Ano |
| Rychlost naklánění | 450 °/sec |
| Rozsah horizontálního natočení | 0 - 360 ° |
| Wide Dynamic Range (WDR) | Ano |
| Formáty komprese videa | AVC,H.264,H.265,HEVC,M-JPEG,MPEG4 |
| Infračervený blokovací filtr | Ano |
| Zorný úhel objektivu, vodorovný | 63.8 - 2.6 ° |
| Zorný úhel objektivu, svislý | 38.0 - 1.47 ° |
| Vertikální naklápění kamery | Ano |
| Horizontální otáčení kamery | Ano |
| Maximální hodnota clony | 4.2 |
| Vestavěný HDD | Ne |
| Rychlost horizontálního natočení | 450 °/sec |
| Maskování soukromí | Ano |
| Překryv textových titulků | Ano |
| HTTPS šifrování | Ano |
| Denní/noční režim | Ano |
| Rychlost závěrky kamery | 1/11000 - 1/3 s |
| Odolnost proti zamlžení | Ano |
| Řízení bitové rychlosti | Variable Bit Rate (VBR) |
| Nahrávání trasy | Ano |
Komentáře (0)
Na tento produkt momentálně není přidána žádná recenze.
1/2.8" CMOS, 1280x720px, 60 fps, IP66/67, IK10, 100-240V, 66.1W
