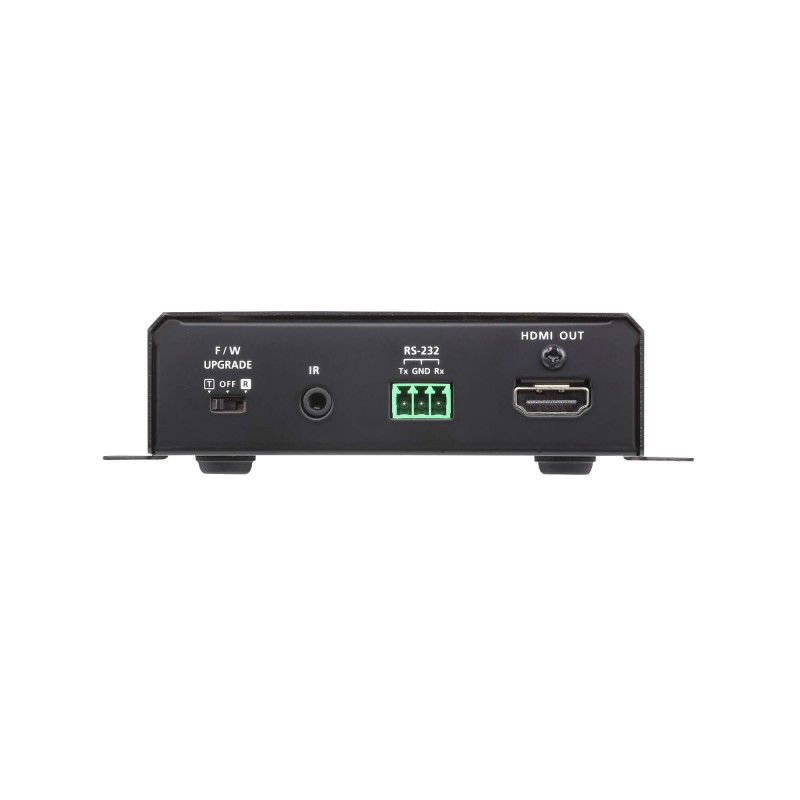

ATEN HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)

ATEN HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A) z kategorie VGA, DVI, HDMI kabely.

Hlavní parametry:

• Délka kabelu: 100 m
• Model: Síťový vysílač a přijímač
• Maximální rozlišení: 4096 x 2160 px
• Podporované kabelové typy: Cat5e, Cat6, Cat6a
• Maximální přenosová vzdálenost: 150 m
• LED indikátory: Ano
• Formát: 1080p, 2160p
• Podporované grafické rozlišení: 3840 x 2160, 4096 x 2160
• Frekvence: 10,2 Gbit/s
• Šířka pásma: 340 MHz

Popis výrobce (anglicky)

HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions. The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality. Features HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time Rack- Mountable Package Contents 1x VE1812R HDMI HDBaseT Receiver with POH 1x 0AD9-1F05-26EG Power Adapter 1x RS-232 Terminal Block 1x User Instructions
