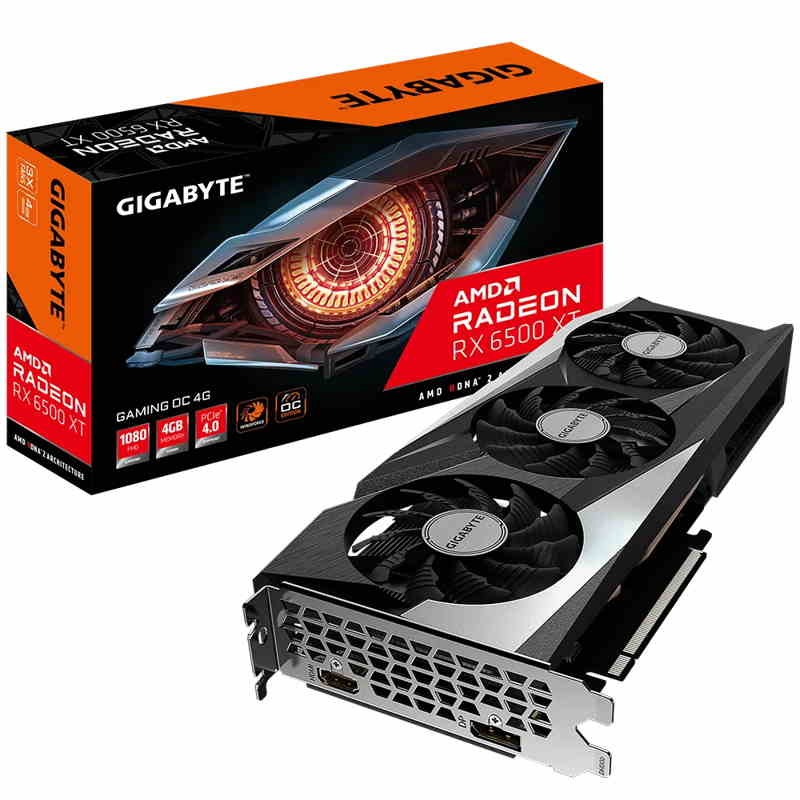

GIGABYTE Radeon RX 6500 XT GAMING OC 4G

Graphics Processing Radeon™ RX 6500 XT Core Clock Boost Clock* : up to 2825 MHz (Reference card: 2815 MHz) Game Clock* : up to 2685 MHz (Reference card: 2610 MHz) Stream Processors 1024 Process Technology 6 nm Memory Clock 18000 MHz Memory Size 4 GB Memory Type GDDR6 Memory Bus 64 bit Memory Bandwidth (GB/sec) 144 GB/s Card Bus PCI-E 4.0 Digital max resolution 7680x4320 Multi-view 2 Card size L=282 W=114 H=40 mm PCB Form ATX DirectX 12 Ultimate OpenGL 4.6 Recommended PSU 400W Power Connectors 6 pin*1 Output DisplayPort 1.4a *1 HDMI 2.1 *1 Accessories Quick guide Note * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
