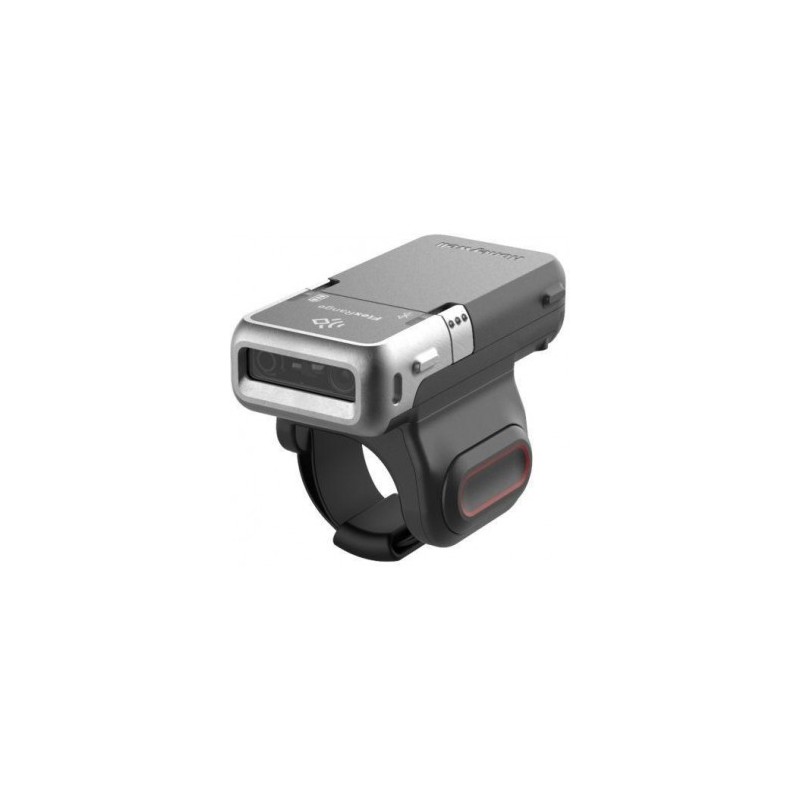

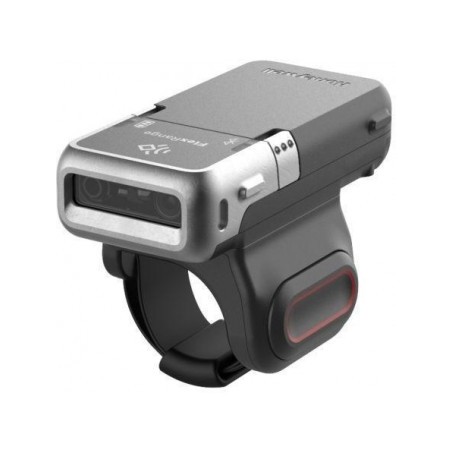

8675i Wearable Scanner - StandardRange, includes battery and triggered ring

MECHANICAL

Dimensions (L x W x H): 65.2 mm x 30.3mm x 15.2mm (2.6 in x 1.2 in x 0.6in)

Weight: *

Triggered ring with battery: *8675I-SR 63g (2.3 oz) *8675I-FR 66g (2.4 oz) *

Scanner module without wearable accessory or battery: *8675I-SR 50g (1.8 oz) *8675I-FR 53g (1.9 oz) Scan performance

Scan Pattern: Omni-directional area imager

Symbol Contrast: 20% minimum reflectance

Pitch: +/-60°

Skew: +/-60°

Warranty: Two-year factory warranty (Note: Battery warranty is one year) WIRELESS

Bluetooth: 2.4 GHz to 2.5GHz (ISM Band (Adaptive Frequency Hopping Bluetooth v5.1 Class 1; 100m (330ft) line of sight; BLE. NFC communications for simple tap-to-pair functionality.

Battery: 3.85V, 570mAh

Number of scans: 12,000 over 10 hour shift

Expected charge time: 3.5 hours

Battery Weight: 19 grams (0.8 oz) ENVIRONMENTAL

Operating Temperature: *8675i-FR: -20°C to 50°C (-4°F to 122°F) *8675I-SR: -10°C to 50°C (14°F to 122°F)

Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Humidity: 0% to 95% relative humidity (non-condensing)

Drop: 1.8m(6 ft) Mil-Std-810 Drop Test at operating temperature 50x 1.5m (5 ft) to concrete at operating temperature

Tumble: 2,000 1/2 m (1.6 ft) tumbles per IEC 60068-2-32 specification

Trigger: Rated for 5MM activation cycles

ESD: ±15 kV Air and ±8 kV Direct

Environmental Sealing: Independently certified to meet IP65 standards for moisture and particle intrusion
