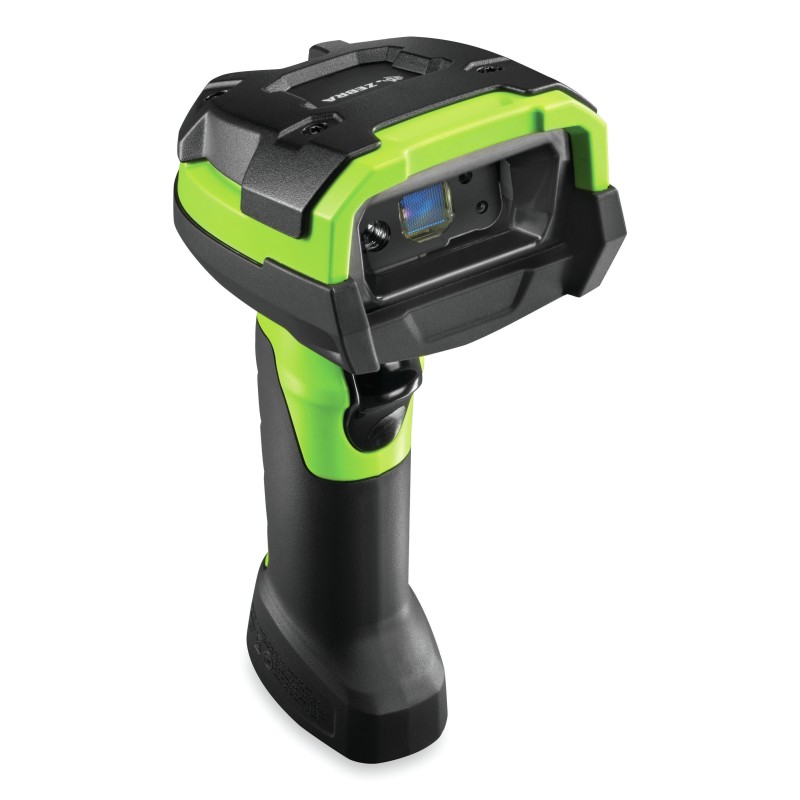

Zebra DS3678:Rugged,Area Imager,Standard Range,Cordless,FIPS,Industrial Green,Vibration Motor
search
  • Zebra DS3678:Rugged,Area Imager,Standard Range,Cordless,FIPS,Industrial Green,Vibration Motor

Zebra DS3678:Rugged,Area Imager,Standard Range,Cordless,FIPS,Industrial Green,Vibration Motor

13 473 Kč
S DPH

Skladem

Kód: DS3678SR0F003VZWW

  • Technologie propojení: Kabelový a bezdrátový
  • Barva: Černá, Zelená
  • Typ: Handheld bar code reader
  • Model: Ruční čtečka čárových kódů
  • Stupeň krytí IP: IP67
  • Hmotnost: 407 g
Všechny parametry
DS3678-SR, 1D/2D Imager, 610nm Led, 1280 x 800, One 660nm LED, Bluetooth 4.0 (LE)

Popis

UNSTOPPABLE PERFORMANCE FOR STANDARD RANGE 1D/2D BARCODE CAPTURE
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-SR corded and DS3678-SR cordless scanners are ready for the world’s toughest environments — the warehouse and manufacturing floor. Designed to capture virtually any barcode from near contact to as far as 5 ft./1.5 m away, these scanners are loaded with features that deliver truly unstoppable performance, redefining reliability and management simplicity. The result? The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.

SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can scan virtually any 1D or 2D electronic or printed barcode in any condition, as fast as they can pull the trigger. With 30 percent more working range, it’s easy to capture barcodes that are farther away. Even if barcodes are under shrinkwrap or damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The manufacturing plant floor is as tough as its gets — and the cost of unplanned downtime on the production line is astronomical. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Parametry

Technologie propojeníKabelový a bezdrátový
BarvaČerná, Zelená
TypHandheld bar code reader
ModelRuční čtečka čárových kódů
Stupeň krytí IPIP67
Hmotnost407 g
Šířka142 mm
Typ senzoruLED
Výška185 mm
Hloubka76 mm
Vodorovný pozorovací úhel-65 - 65°
Svislý pozorovací úhel-65 - 65 °
Připojení na síť EthernetAno
Typ zdrojeBattery
Provozní rozsah teplot (T-T)-20 - 50 °C
Rozsah teplot při skladování (T-T)-40 - 70 °C
Doporučená provozní relativní vlhkost5 - 95 %
Dodávané kabelyUSB
Certifikáty shodyRoHS
Verze Bluetooth4.0
Ochranné funkcePrachuodolný, Odolný proti nárazům, Odolné vůči vodě
Kapacita baterie3100 mAh
Technologie baterieLithiová
Typ baterieLi-Iontová
Kód mezinárodní ochrany (IP)IP67
LED indikátoryAno
Typ skeneru1D/2D
Bluetooth Low Energy (BLE)Ano
Vlnová délka610 nm
Standardní rozhraníRS-232, USB, Emulace klávesnice
Podpora 2D čárových kódů (matice a stohované)Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
Kód harmonizovaného systému84716070
Stojan v ceněNe
Stojan v baleníNe
Dosah bezdrátového signálu100 m
Dosah bezdrátového spojení100 m
Podpora lineárních (1D) kódůCodabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
Podpora maticových (2D) kódůAztec Code, Složené kódy, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR kód, TLC-39
Čtecí úhel naklánění-65 - 65°
Podporované lineární (1D) čárové kódyCodabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C.
Úhel čtení při náklonu-65 - 65 °
Úhel odklonu snímání-45 - 45 °
Rozlišení optického senzoru1280 px
Svislý porozovací úhel-45 - 45°
Programovací funkceAno
Počet čtení na jedno nabití100000
Nabíjecí základnaNe
