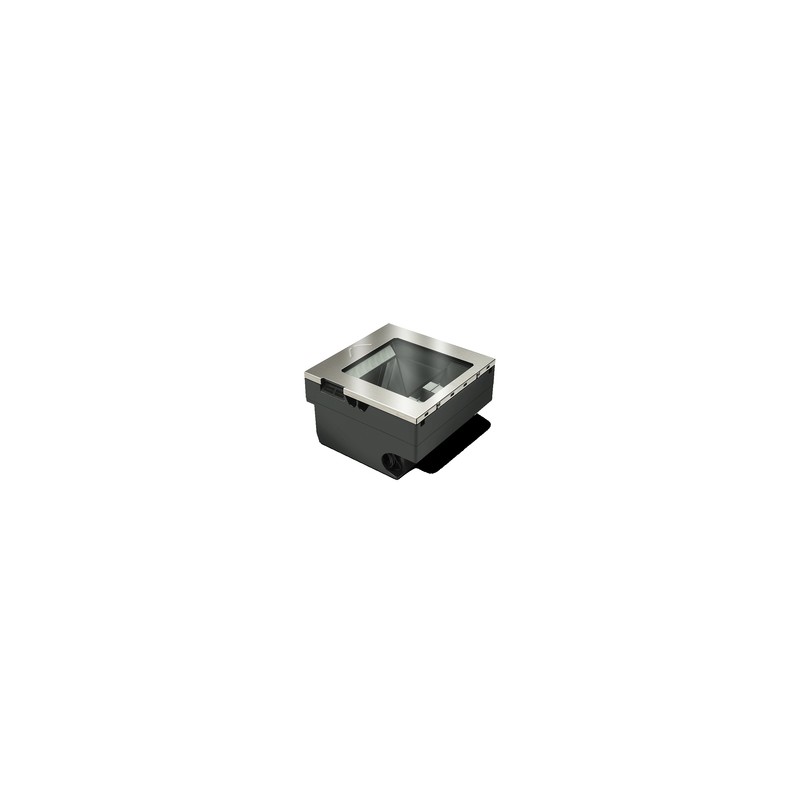

Magellan 3550HSi, Scanner, Multi-Interface, 1D/2D Model with Digimarc, Sapphire Glass (Mount and Required Cable and/or Power
search
  • Magellan 3550HSi, Scanner, Multi-Interface, 1D/2D Model with Digimarc, Sapphire Glass (Mount and Required Cable and/or Power

Magellan 3550HSi, Scanner, Multi-Interface, 1D/2D Model with Digimarc, Sapphire Glass (Mount and Required Cable and/or Power

18 211 Kč
S DPH

Momentálně nedostupné

Kód: M3551010300

  • Technologie propojení: Drátové
  • Barva: Černá, Nerezová ocel
  • Typ: Built-in bar code reader
  • Stupeň krytí IP: IP52
  • Hmotnost: 980 g
  • Šířka: 152 mm
Všechny parametry
Magellan 3550HSi, Scanner, Multi-Interface, 1D/2D Model with Digimarc, Sapphire Glass (Mount and Required Cable and/or Power Accessories Sold Separately)-

Popis

The Magellan 3550HSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3550HSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.

Parametry

Technologie propojeníDrátové
BarvaČerná, Nerezová ocel
TypBuilt-in bar code reader
Stupeň krytí IPIP52
Hmotnost980 g
Šířka152 mm
Typ senzoruLaserový
Výška152 mm
Hloubka87 mm
Svislý pozorovací úhel-65 - 65 °
Typ zdrojeDC
Provozní rozsah teplot (T-T)10 - 40 °C
Rozsah teplot při skladování (T-T)-40 - 70 °C
Doporučená provozní relativní vlhkost5 - 95 %
Spotřeba energie (v pohotovosti)4 W
Vstupní napětí12 V
Vestavěný displejAno
Typ skeneru1D/2D
Kompatibilní paměťové kartyMicroSD (TransFlash)
Spotřeba energie (typická)3 W
Standardní rozhraníRS-232,USB
Podpora 2D čárových kódů (matice a stohované)Aztec Code,Data Matrix,QR Code
Frekvence vstupního napětí50/60 Hz
Kód harmonizovaného systému84716070
Výstupní napětí AC adaptéru100 - 240 V
Rozlišení optického senzoru (Š x V)1280 x 1024 pixels
Podporované lineární (1D) čárové kódyGS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,PDF417
Úhel čtení při náklonu0 - 360 °
Úhel odklonu snímání-75 - 75 °
Kontrast tisku25 %
Ambientní podsvíceníAno
Pracovní vzdálenost102 mm
Rychlost čtení (max)39000000 reads/s
