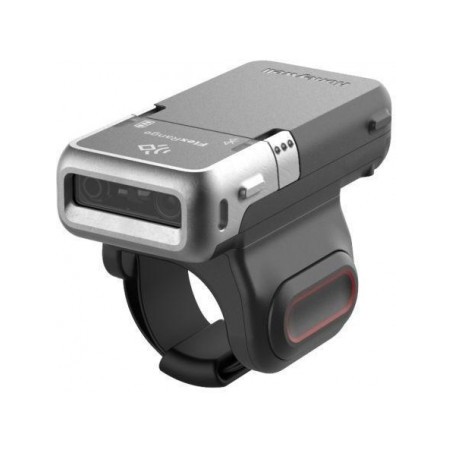

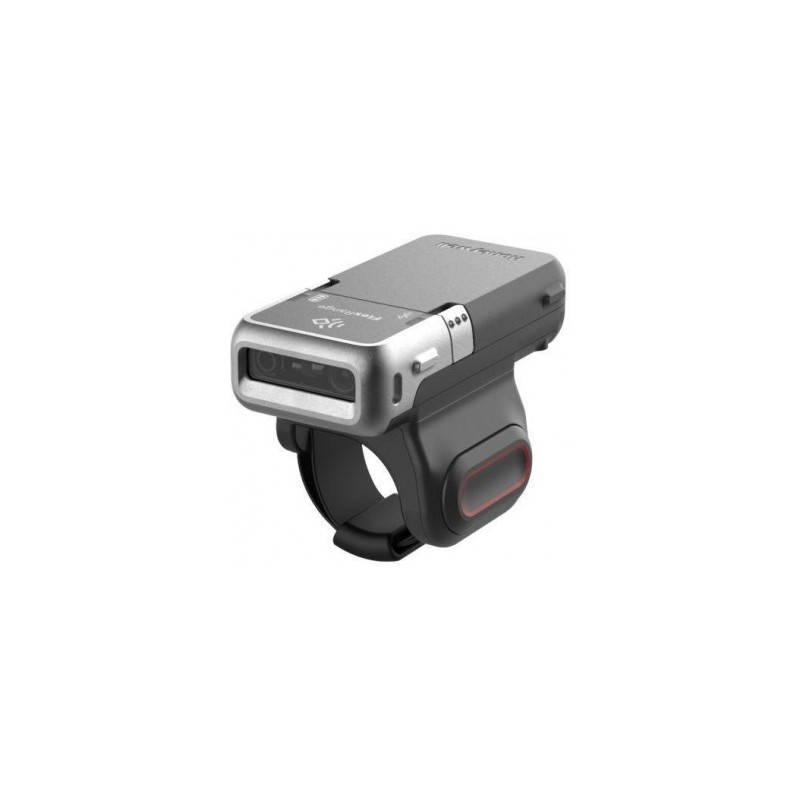

8675i Wearable Scanner - FlexRange, includes battery and triggered ring
20 783 Kč
S DPH
Skladem
Kód: 8675I400FR2R
- Technologie propojení: Bezdrátový
- Barva: Černá
- Počet kusů v balení: 1 pc(s)
- Typ: Handheld bar code reader
- Stupeň krytí IP: IP65
- Hmotnost: *
Omni-directional area imager, scans: 12000 over 10 hour shift, Bluetooth 5.1, Battery 3.85V, 570mAh, Drop 1.8m, Tumble: 2,000 1/2 m, IP65, Black
Popis
MECHANICAL
Dimensions (L x W x H): 65.2 mm x 30.3mm x 15.2mm (2.6 in x 1.2 in x 0.6in)
Weight: *
Triggered ring with battery: *8675I-SR 63g (2.3 oz) *8675I-FR 66g (2.4 oz) *
Scanner module without wearable accessory or battery: *8675I-SR 50g (1.8 oz) *8675I-FR 53g (1.9 oz) Scan performance
Scan Pattern: Omni-directional area imager
Symbol Contrast: 20% minimum reflectance
Pitch: +/-60°
Skew: +/-60°
Warranty: Two-year factory warranty (Note: Battery warranty is one year) WIRELESS
Bluetooth: 2.4 GHz to 2.5GHz (ISM Band (Adaptive Frequency Hopping Bluetooth v5.1 Class 1; 100m (330ft) line of sight; BLE. NFC communications for simple tap-to-pair functionality.
Battery: 3.85V, 570mAh
Number of scans: 12,000 over 10 hour shift
Expected charge time: 3.5 hours
Battery Weight: 19 grams (0.8 oz) ENVIRONMENTAL
Operating Temperature: *8675i-FR: -20°C to 50°C (-4°F to 122°F) *8675I-SR: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 0% to 95% relative humidity (non-condensing)
Drop: 1.8m(6 ft) Mil-Std-810 Drop Test at operating temperature 50x 1.5m (5 ft) to concrete at operating temperature
Tumble: 2,000 1/2 m (1.6 ft) tumbles per IEC 60068-2-32 specification
Trigger: Rated for 5MM activation cycles
ESD: ±15 kV Air and ±8 kV Direct
Environmental Sealing: Independently certified to meet IP65 standards for moisture and particle intrusion
Dimensions (L x W x H): 65.2 mm x 30.3mm x 15.2mm (2.6 in x 1.2 in x 0.6in)
Weight: *
Triggered ring with battery: *8675I-SR 63g (2.3 oz) *8675I-FR 66g (2.4 oz) *
Scanner module without wearable accessory or battery: *8675I-SR 50g (1.8 oz) *8675I-FR 53g (1.9 oz) Scan performance
Scan Pattern: Omni-directional area imager
Symbol Contrast: 20% minimum reflectance
Pitch: +/-60°
Skew: +/-60°
Warranty: Two-year factory warranty (Note: Battery warranty is one year) WIRELESS
Bluetooth: 2.4 GHz to 2.5GHz (ISM Band (Adaptive Frequency Hopping Bluetooth v5.1 Class 1; 100m (330ft) line of sight; BLE. NFC communications for simple tap-to-pair functionality.
Battery: 3.85V, 570mAh
Number of scans: 12,000 over 10 hour shift
Expected charge time: 3.5 hours
Battery Weight: 19 grams (0.8 oz) ENVIRONMENTAL
Operating Temperature: *8675i-FR: -20°C to 50°C (-4°F to 122°F) *8675I-SR: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 0% to 95% relative humidity (non-condensing)
Drop: 1.8m(6 ft) Mil-Std-810 Drop Test at operating temperature 50x 1.5m (5 ft) to concrete at operating temperature
Tumble: 2,000 1/2 m (1.6 ft) tumbles per IEC 60068-2-32 specification
Trigger: Rated for 5MM activation cycles
ESD: ±15 kV Air and ±8 kV Direct
Environmental Sealing: Independently certified to meet IP65 standards for moisture and particle intrusion
Parametry
| Technologie propojení | Bezdrátový |
|---|---|
| Barva | Černá |
| Počet kusů v balení | 1 pc(s) |
| Typ | Handheld bar code reader |
| Stupeň krytí IP | IP65 |
| Hmotnost | * |
| Šířka | 65.2 mm |
| Výška | 15.2 mm |
| Hloubka | 30.3 mm |
| Bluetooth | 2.4 GHz to 2.5GHz (ISM Band (Adaptive Frequency Hopping Bluetooth v5.1 Class 1; 100m (330ft) line of sight; BLE |
| Provozní rozsah teplot (T-T) | -20 - 50 °C |
| Rozsah teplot při skladování (T-T) | -20 - 60 °C |
| Doporučená provozní relativní vlhkost | 0 - 95 % |
| Účel | Ruční |
| Záruční doba | 2 year(s) |
| Verze Bluetooth | 5.1 |
| Kapacita baterie | 570 mAh |
| Napětí baterie | 3.85 V |
| Technologie baterie | Lithiová |
| Typ baterie | Vestavěný |
| Vestavěný displej | Ano |
| Typ skeneru | Se snímáním shora |
| Standardní rozhraní | Bluetooth |
| Prostředí použití | Mobilní |
| Hmotnost baterie | 19 g |
| Nabíjecí baterie | Ano |
| Odolnost proti pádu | 1.8 m |
| Funkce vibrací | Ano |
