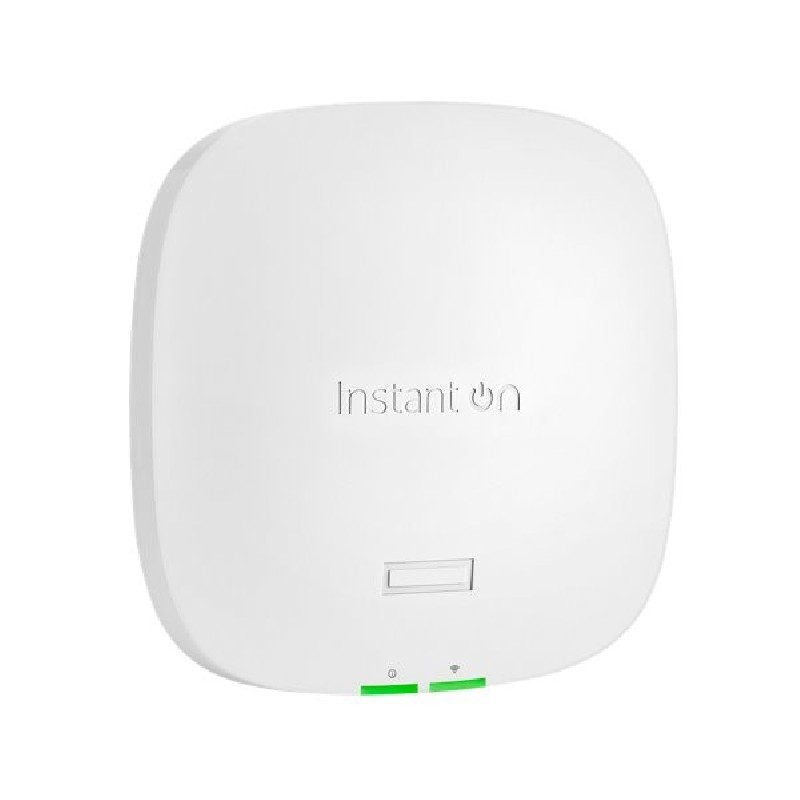

HPE Networking Instant On Access Point Dual Radio Tri Band 2x2 Wi-Fi 6E (RW) AP32

Product Overview

• Model: HPE Networking Instant On AP32

• Product Number: S1T23A

• Differentiator: Dual Radio, Tri-Band 2x2 MIMO Wi-Fi 6E Access Point

• Usage: For regions with no specific regulatory domain requirements

Wi-Fi & Wireless Features

• Wi-Fi Standard: 802.11ax (Wi-Fi 6E), backward compatible

• Certifications:

  • Wi-Fi Alliance (WFA) certified

  • WPA2, WPA3 security protocols

• Radios:

  • Dual-Radio, Tri-Band (2.4 GHz, 5 GHz, 6 GHz)

  • Note: Only two active bands selectable at a time

• Antenna:

  • 2x2 MIMO

  • Omni-directional antennas (integrated)

  • Gain:

    • 2.4 GHz: 2.8 dBi

    • 5 GHz / 6 GHz: 4.5 dBi

• Max Transmit Power:

  • 2.4 GHz: +21 dBm (+18 dBm/chain + 3 dB MIMO gain)

  • 5 GHz / 6 GHz: +21 dBm (+18 dBm/chain + 3 dB MIMO gain)

Power & Consumption

• Input Voltage:

  • PoE: 802.3at (Class 4)

  • DC: 12V input (via optional adapter)

  • Power Source Not Included (sold separately unless bundled)

• Power Consumption:

  • Max (PoE): 12.9W

  • Max (DC): 11.0W

Physical Interfaces

• 1x 2.5 GbE Base-T uplink port

• 1x DC Power Connector

• LED Indicators for status

• Reset/LED Control Button

• Kensington Security Slot

Mounting Options

• Ceiling/wall mount via included combined rail mount clip

In the Box

• HPE Instant On AP32 Access Point

• Quick Start Guide

• Ceiling/wall rail mount clip

• Ethernet cable

• Note: Power source (PoE injector or DC adapter) not included unless part of a bundle

Warranty & Support

• 2-Year Warranty

  • 24/7 phone support for first 90 days

  • Chat support throughout warranty

  • Lifetime access to community support

HPE Networking Instant On Access Point Dual Radio Tri Band 2x2 Wi-Fi 6E (RW) AP32 ( S1T23A)

In the Box:

HPE Networking Instant On Access Point
Quick Start guide
Combined ceiling and wall rail mount clip
Ethernet cable
Add PoE or DC power source
For use in those countries and regions where no specific regulatory domain is required.

Certifications

Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Input voltage

PoE: 802.3at (class 4) DC power (12V)
Note: Power sources are sold separately unless you purchase the bundle SKU

Wi-Fi antenna

Antennas: Dual omni-directional 2x2 MIMO
Antenna Gain: 2.8 dBi in 2.4 GHz 4.5 dBi in 5 GHz and 6 GHz
Maximum transmit power:
5 GHz and 6 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)

Connectivity, standard

Ultra-fast 802.11ax

Ports

1x 2.5 GbE Base-T uplink port
DC power connector
LED status indicators
Reset/LED control button
Kensington security slot

Mounting

Ceiling/Wall-mount clip

Power consumption

Max power consumption: 12.9W (PoE) 11.0W (DC)

Radio coverage

Dual-Radio, tri-band 802.11ax 2x2 6 GHz/5 GHz/2.4 GHz* MIMO Note: * Only two active bands are selectable.

Warranty

Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product.
