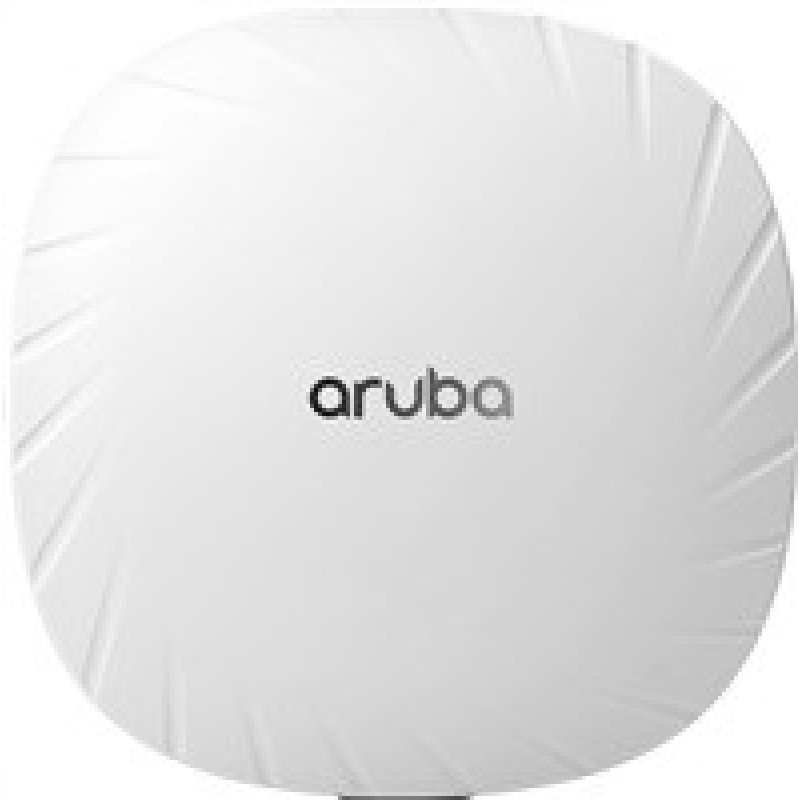

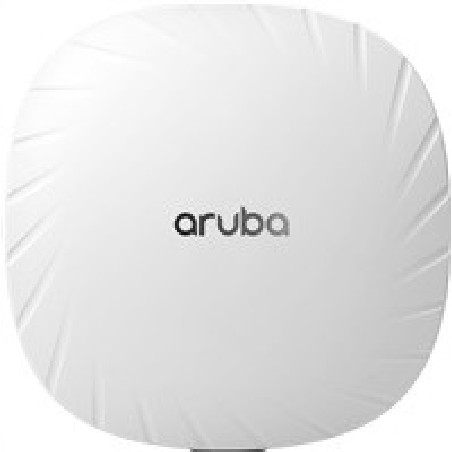

HPE Aruba Networking AP-515 (RW) Dual Radio 4x4/2x2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A

General

Product Number: Q9H62A

Differentiator: Available everywhere except US, Israel, Japan, and Egypt

Certifications

• UL2043 plenum rating
• Bluetooth SIG
• Wi-Fi Alliance:
  • Wi-Fi CERTIFIED: a, b, g, n, ac, ax
  • WPA, WPA2, WPA3 (Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE))
  • WMM, WMM-PS, Wi-Fi Agile Multiband
  • Wi-Fi CERTIFIED Location™

Regulatory

• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 62368-1
• EN 60601-1-1, EN 60601-1-2

Railway Certifications (AP-515 Only)

• EN 50155:2017 - Railway Applications
• EN 50121-1:2017 - Railway EMC
• EN 50121-3-2 - Railway EMC
• EN 50121-4:2016 - Railway Immunity
• IEC 61373 ed2:2008 - Railway Shock and Vibration

Wireless & Antennas

Standard: Wi-Fi 6 (IEEE 802.11ax)

Wi-Fi Antenna: Four integrated dual-band downtilt omni-directional antennas

• 4x4 MIMO
• 2.4 GHz peak gain: 4.2 dBi
• 5 GHz peak gain: 7.5 dBi

Ports

• E0: HPE Smart Rate (RJ-45), max 2.5 Gbps
• E1: 10/100/1000BASE-T Ethernet (RJ-45)
• USB 2.0 Host (Type A)
• Serial console (proprietary, micro-B USB)

Mounting

Pre-installed mounting bracket. Compatible with optional mounting kits (see ordering guide).

Power Consumption

• DC powered: Max 16.0W
• PoE (802.3af, IPM enabled): 13.5W
• PoE (802.3at/bt): 20.8W
• Idle mode: 12.6W (PoE), 9.7W (DC)
• Deep-sleep mode: 5.9W (PoE), 1.5W (DC)

Radio Coverage

Indoor dual radio:

• 5 GHz 802.11ax 4x4 MIMO
• 2.4 GHz 802.11ax 2x2 MIMO

Warranty

Limited lifetime warranty. See the warranty documentation for duration details.

Dimensions

Size: 46 x 200 x 200 mm
