- Vyprodáno

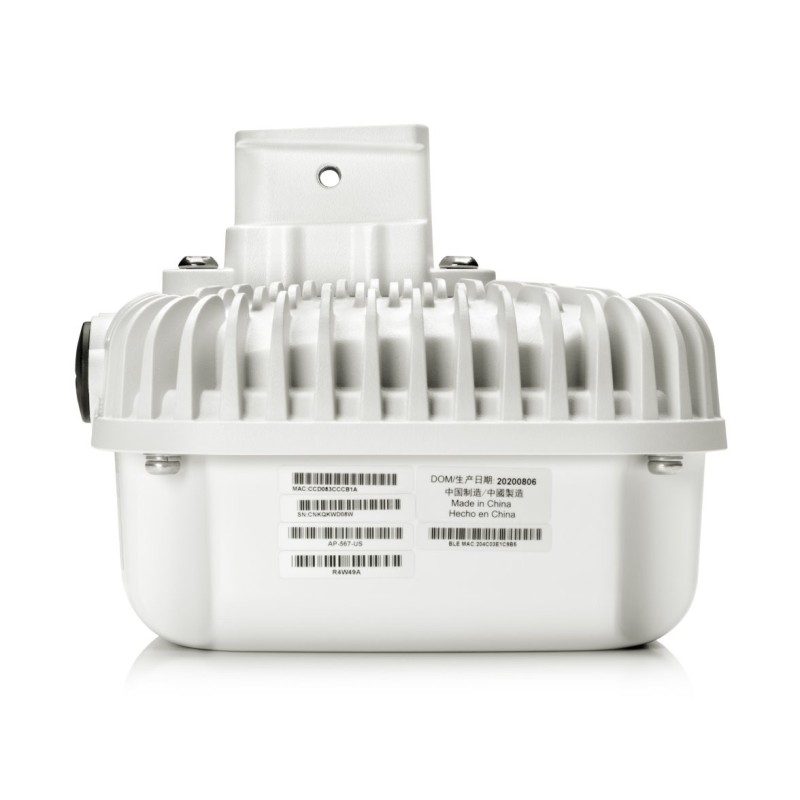

HPE Aruba AP-567EX (RW) OTDR Stock/.
Technologie propojení Zigbee / Barva Bílá / Certifikace CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location Class 1 Division 2 certified ATEX Zone 2 certified / Hmotnost 1090 g / Šířka 165 mm / Výška 165 mm
Všechny parametryKód: R4W66A Výrobce: HPE EAN: 0190017447858
Popis
HPE Aruba Networking 560EX Series Hazardous Location Access Points provide cost-effective Wi-Fi 6 connectivity for outdoor hazardous locations like oil fields and rigs, mining facilities, and environments with explosive atmospheres and vapors that need Class 1 Division 2 or ATEX Zone 2 solutions. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 1.49 Gbps, the 560EX series delivers the speed and reliability needed to bring Wi-Fi to hazardous locations. These Wi-Fi 6 outdoor access points (APs) are purpose-built for hazardous locations and can be quickly deployed using zero touch provisioning (ZTP). HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 560EX series includes a limited lifetime warranty.
What is new supporting point:
It is purpose built for hazardous locations and to survive in one of the harshest outdoor environments and extreme temperatures (-40˚C to +55˚C)
Class 1 Division 2 and ATEX Zone 2 certified outdoor Wi-Fi 6 APs provide up to 1.49 Gbps maximum aggregate data rate
It has client and RF optimization to match clients with the top available AP and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforces consistent policies across every network, keeping users and devices secure
Internet of Things (IoT)-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee
What is new supporting point:
It is purpose built for hazardous locations and to survive in one of the harshest outdoor environments and extreme temperatures (-40˚C to +55˚C)
Class 1 Division 2 and ATEX Zone 2 certified outdoor Wi-Fi 6 APs provide up to 1.49 Gbps maximum aggregate data rate
It has client and RF optimization to match clients with the top available AP and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforces consistent policies across every network, keeping users and devices secure
Internet of Things (IoT)-ready with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee
Parametry
| Technologie propojení | Zigbee |
|---|---|
| Barva | Bílá |
| Certifikace | CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location Class 1 Division 2 certified ATEX Zone 2 certified |
| Hmotnost | 1090 g |
| Šířka | 165 mm |
| Výška | 165 mm |
| Hloubka | 130 mm |
| Bluetooth | Ano |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 1 |
| Typ napájení | 802.3at |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, CE, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD) |
| Účel | Venkovní |
| Záruční doba | Doživotní |
| Verze Bluetooth | 5.0 |
| Počet portů USB 2.0 | 0 |
| Platforma | HPE Aruba Networking |
| Přenosová rychlost sítě Ethernet | 1000 Mbit/s |
| Standardy Wi-Fi | Wi-Fi 6 (802.11ax) |
| Maximální přenosová rychlost | 1774 Mbit/s |
| Umístění | Tyč, Zeď |
| Typ antény | Vnitřní |
| Doporučené použití | Venkovní |
| Auto MDI/MDI-X | Ano |
| Power over Ethernet (PoE) | Ano |
| MIMO | 2 x 2 |
| Hmotnost (imperiální jednotky) | 2.4 lbs |
| 5 GHz | Ano |
| Typ MIMO | Víceuživatelské MIMO |
| 6 GHz | Ne |
| Typ směrovosti antény | Směrová |
| Montáž | Na strop |
| Podpora MACsec | Ne |
| Kompatibilní operační systémy | HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0; HPE Aruba Networking Wireless Operating System 10 |
| Bezpečnostní algoritmy | WPA2,WPA3 |
| Vstupně-výstupní porty | E0: 10/100/1000BASE-T (RJ-45) USB-C console interface |
| MU-MIMO | Ano |
| Počet SFP portů | Bez |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80 (5 GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální přenosová rychlost (5 GHz) | 1200 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 575 Mbit/s |
| Rozsah DC napětí | 48 V |
| Typy PoE | PoE-In (pouze) |
| 6GHz MIMO | Bez |
| Porty | USB-A |
| Přenosová rychlost - 2,4 GHz | 574 |
| Přenosová rychlost - 5 GHz | 1201 |
| Přenosová rychlost - 6 GHz | Bez |
| 5GHz MIMO | 2 x 2 |
| Maximální rychlost LAN | 1G |
| Maximální rychlost SFP | Bez |
| Polarizace | Dual polarization |
| Maximální zisk antény | 7 dBi |
| Typ USB konektoru | USB Type-C |
| Vlastnosti antény | Integrated antenna |
| Metoda rozprostřeného spektra | OFDMA |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
Komentáře (0)
Na tento produkt momentálně není přidána žádná recenze.
Aruba Networking AP-567EX (RW) Dual Radio 2x2 Wi-Fi 6 Internal Directional HazLoc Access Point
