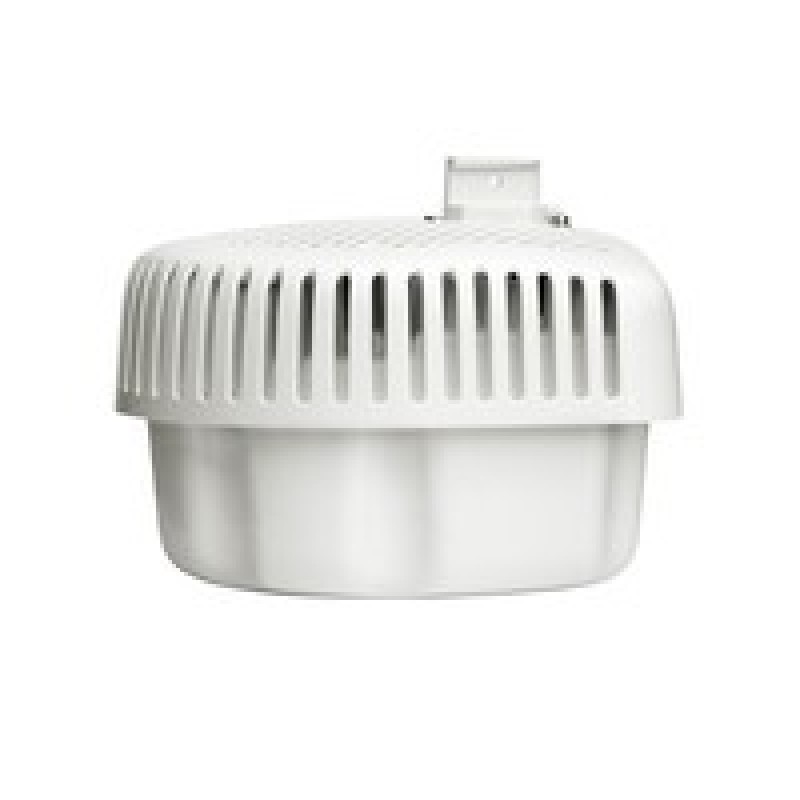

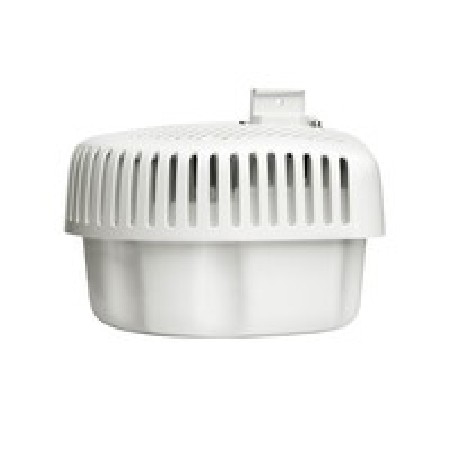

HPE ANW AP-674 (US) Outdoor A-Stock/.
Barva Černá / Certifikace Wi‐Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only) / Bluetooth Ano / Síťové standardy IEEE 802.11ax,IEEE 802.11mc / Počet portů Ethernetu (RJ-45) 1 / Certifikáty shody Federální komunikační komise (FCC), ISED, CE, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD)
Všechny parametryKód: S0P45A Výrobce: HPE EAN: 0190017641300
Popis
The HPE Aruba Networking 670 Series Outdoor Access Points bring high performance Wi-Fi 6E to outdoor and environmentally challenging locations. The 670 series delivers more wireless capacity and wider channels taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet the speed and reliability needed by enterprise and industrial Internet of Things (IoT) environments. The 670 series is weatherproof, temperature hardened, and ready for hazardous environments. With integrated high-power Bluetooth and Zigbee radios, fast wired connectivity, and a limited lifetime warranty, the access points provide high performance outdoor connectivity you can depend on, delivering up to 3.9 Gbps peak aggregate data rate with a tri-radio 2x2:2 MIMO AP. This series includes the 670EX models that are designed for the most extreme, hazardous locations.
What is new supporting point:
High performance outdoor Wi-Fi 6E access points ideal for outdoor and environmentally challenging locations
It delivers up to 3.9 Gbps peak aggregate data rates with a tri-radio 2x2:2 MIMO
160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and AR/VR applications
High-power Bluetooth and Zigbee radios to meet Industrial IoT requirements
Flexible and fast-wired connectivity with 2.5GbE port and 1GbE SFP port. The series includes models with internal antennas and new connectorized model that supports external antennas.
Self-locating with embedded GPS receiver and will operate as standard power (SP) device
What is new supporting point:
High performance outdoor Wi-Fi 6E access points ideal for outdoor and environmentally challenging locations
It delivers up to 3.9 Gbps peak aggregate data rates with a tri-radio 2x2:2 MIMO
160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and AR/VR applications
High-power Bluetooth and Zigbee radios to meet Industrial IoT requirements
Flexible and fast-wired connectivity with 2.5GbE port and 1GbE SFP port. The series includes models with internal antennas and new connectorized model that supports external antennas.
Self-locating with embedded GPS receiver and will operate as standard power (SP) device
Parametry
| Barva | Černá |
|---|---|
| Certifikace | Wi‐Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only) |
| Bluetooth | Ano |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 1 |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, CE, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD) |
| Verze Bluetooth | 5.4 |
| Počet portů USB 2.0 | 2 |
| Přenosová rychlost sítě Ethernet | 2500,5000 Mbit/s |
| Maximální přenosová rychlost | 3900 Mbit/s |
| Bluetooth Low Energy (BLE) | Ano |
| Typ antény | Vnější |
| Doporučené použití | Venkovní |
| Power over Ethernet (PoE) | Ano |
| DC-in konektor | Ne |
| MIMO | Ano |
| 5 GHz | Ano |
| Typ MIMO | Víceuživatelské MIMO |
| 6 GHz | Ano |
| Typ směrovosti antény | Všesměrová |
| Technologie kabeláže | 10/100/1000/2500Base-T |
| Podpora MACsec | Ne |
| Šířka pásma | 6 GHz |
| Udržitelné technologie a materiály | Outdoor Wi-Fi 6E access points with tri-radio, GPS, PoE-PD |
| Kompatibilní operační systémy | HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networkin |
| Počet konektorů | 6 |
| Počet antén | 2 |
| Vstupně-výstupní porty | Ethernet wired network port (RJ-45) SFP Fiber port USB 2.0 host interface (Type C connector) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, USB-C physical jack) |
| Přenosová rychlost | 3.9 Mbit/s |
| Podporované síťové protokoly | IEEE 802.11ax, IEEE 802.15.4, Bluetooth 5.4, GNSS, PoE-PD, USB 2.0 |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Band steering | Ano |
| Maximální zisk antény | 5 dBi |
| Rozhraní RS-232 | Ne |
| Podporovaný typ Power over Ethernet (PoE) | Active PoE |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Šířka pásma kanálu | 160 MHz |
| Počet kanálů | 3 channels |
| Typ konektoru antény | TNC |
| Organizace pro udržitelnost | Outdoor Industry Association (OIA-SWG) |
| Podporované protokoly | IEEE 802.15.4/Zigbee, Bluetooth 5.4, 2 x USB ports, 802.11 FTM support, GNSS receiver, PoE-PD |
| Prostorové datové toky | Triple 2x2 |
| Počet vnitřních portů RJ-45 | 1 |
