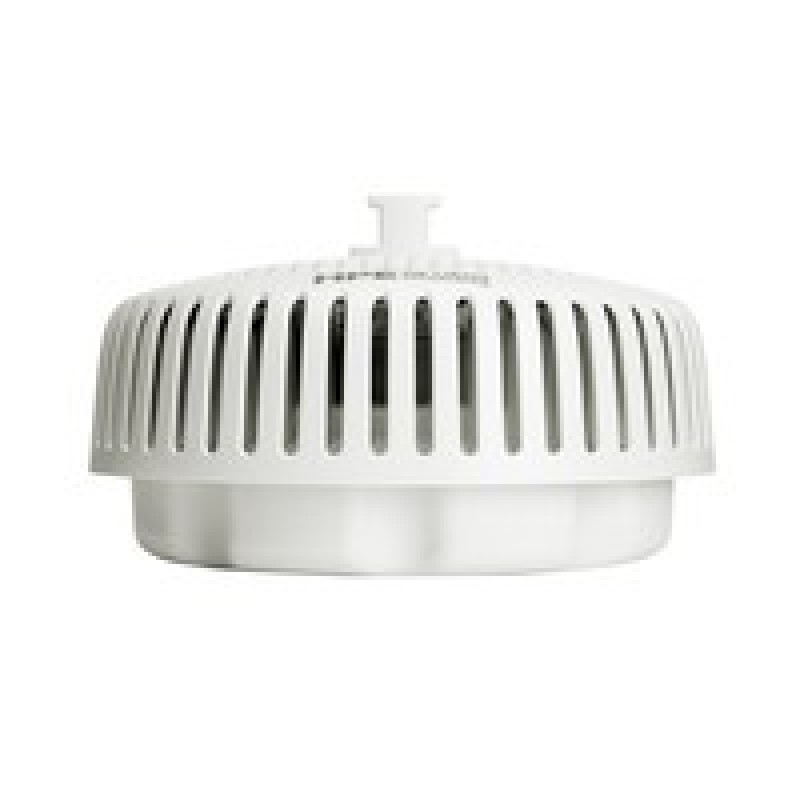

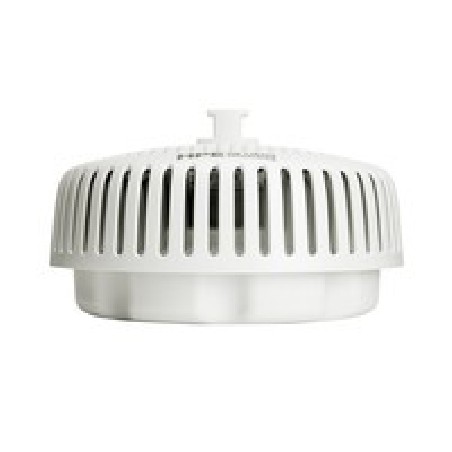

HPE ANW AP-677 (US) Outdoor A-Stock/.
Barva Bílá / Certifikace Wi‐Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only) / Stupeň krytí IP IP66, IP67 / Hmotnost 4000 g / Šířka 290 mm / Výška 312 mm
Všechny parametryKód: S0P55A Výrobce: HPE
Popis
The HPE Aruba Networking 670 Series Outdoor Access Points bring high performance Wi-Fi 6E to outdoor and environmentally challenging locations. The 670 series delivers more wireless capacity and wider channels taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet the speed and reliability needed by enterprise and industrial Internet of Things (IoT) environments. The 670 series is weatherproof, temperature hardened, and ready for hazardous environments. With integrated high-power Bluetooth and Zigbee radios, fast wired connectivity, and a limited lifetime warranty, the access points provide high performance outdoor connectivity you can depend on, delivering up to 3.9 Gbps peak aggregate data rate with a tri-radio 2x2:2 MIMO AP. This series includes the 670EX models that are designed for the most extreme, hazardous locations.
What is new supporting point:
High performance outdoor Wi-Fi 6E access points ideal for outdoor and environmentally challenging locations
It delivers up to 3.9 Gbps peak aggregate data rates with a tri-radio 2x2:2 MIMO
160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and AR/VR applications
High-power Bluetooth and Zigbee radios to meet Industrial IoT requirements
Flexible and fast-wired connectivity with 2.5GbE port and 1GbE SFP port. The series includes models with internal antennas and new connectorized model that supports external antennas.
Self-locating with embedded GPS receiver and will operate as standard power (SP) device
What is new supporting point:
High performance outdoor Wi-Fi 6E access points ideal for outdoor and environmentally challenging locations
It delivers up to 3.9 Gbps peak aggregate data rates with a tri-radio 2x2:2 MIMO
160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications like high-definition video and AR/VR applications
High-power Bluetooth and Zigbee radios to meet Industrial IoT requirements
Flexible and fast-wired connectivity with 2.5GbE port and 1GbE SFP port. The series includes models with internal antennas and new connectorized model that supports external antennas.
Self-locating with embedded GPS receiver and will operate as standard power (SP) device
Parametry
| Barva | Bílá |
|---|---|
| Certifikace | Wi‐Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6) Class 1 Div 2 (EX models only) ATEX Zone 2 (EX models only) IECEx (EX models only) |
| Stupeň krytí IP | IP66, IP67 |
| Hmotnost | 4000 g |
| Šířka | 290 mm |
| Výška | 312 mm |
| Hloubka | 288 mm |
| Bluetooth | Ano |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 2 |
| Provozní rozsah teplot (T-T) | -40 - 70 °C |
| Rozsah teplot při skladování (T-T) | -40 - 70 °C |
| Doporučená provozní relativní vlhkost | 5 - 100 % |
| Rozsah relativní vlhkosti při skladování (H-H) | 5 - 100 % |
| Provozní nadmořská výška | 0 - 3000 m |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, CE, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD) |
| Verze Bluetooth | 4.2 + 5.0 |
| Počet portů USB 2.0 | 1 |
| Přenosová rychlost sítě Ethernet | 2500,5000 Mbit/s |
| Maximální přenosová rychlost | 3900 Mbit/s |
| Umístění | Tyč, Zeď |
| Typ antény | Vnitřní |
| Doporučené použití | Venkovní |
| Tlačítko reset | Ano |
| Power over Ethernet (PoE) | Ano |
| MIMO | Ano |
| 5 GHz | Ano |
| Typ MIMO | Víceuživatelské MIMO |
| 6 GHz | Ano |
| Typ směrovosti antény | Všesměrová |
| Podpora MACsec | Ne |
| Kompatibilní operační systémy | HPE Aruba Networking Wireless Operating System 10.7.0.0 (AP-675, AP-677) HPE Aruba Networking Wireless Operating System 10.7.1.0 (AP-674, AP-679) HPE Aruba Networking Wireless Operating System 8.12.0.0 (Only AP-675, AP-677, and AP-679) HPE Aruba Networkin |
| Spotřeba energie (maximální) | 45.5 W |
| Vstupně-výstupní porty | Ethernet wired network port (RJ-45) SFP Fiber port USB 2.0 host interface (Type C connector) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, USB-C physical jack) |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), peak and maximum peak data rate 3.9 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Beamforming | Ano |
| Maximální přenosová rychlost (5 GHz) | 1200 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 287 Mbit/s |
| Maximální přenosová rychlost (6 GHz) | 2400 Mbit/s |
| Typ USB konektoru | USB Type-A,USB Type-C |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
