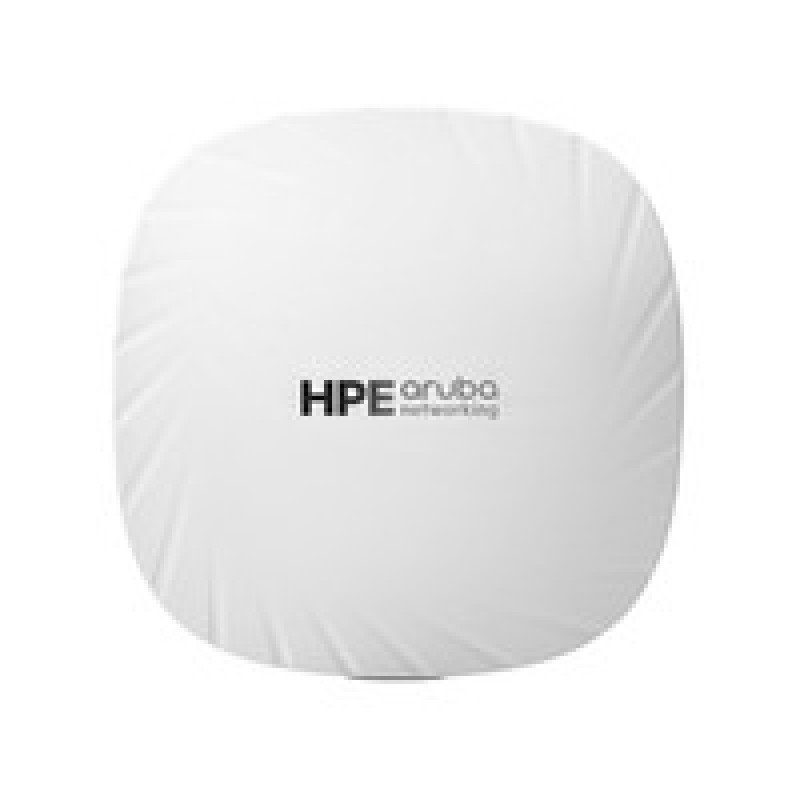

HPE ANW AP-505 (ID) Campus AP-Stock/.
Barva Bílá / Certifikace UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth SIG Etherne / Hmotnost 500 g / Šířka 160 mm / Výška 37 mm / Hloubka 161 mm
Všechny parametryKód: S5D85A Výrobce: HPE
Popis
HPE Aruba Networking 500 Series Campus Access Points deliver cost-effective Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With a 1.49 Gbps maximum combined data rate, the 500 series delivers reliable Wi-Fi for medium-density environments and is supported by HPE Aruba Networking Central, AI-powered management that simplifies and improves IT operations across branch, remote office, campus, data center, and IoT networks with a single point of visibility and control. The 500 series is Wi-Fi CERTIFIED and supports Wi-Fi 6 (802.11ax) features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500 series includes a limited lifetime warranty.
What is new supporting point:
IoT-ready with built-in Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
Built-in technology that resolves sticky client issues and improves the performance of mobile Wi-Fi clients
Available in optional eco-friendly 10-packs
Entry-level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
Support for orthogonal frequency-division multiple access (OFDMA) for enhanced multi-user efficiency, and WPA3 and Enhanced Open (OWE) for greater security
What is new supporting point:
IoT-ready with built-in Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
Built-in technology that resolves sticky client issues and improves the performance of mobile Wi-Fi clients
Available in optional eco-friendly 10-packs
Entry-level Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate
Support for orthogonal frequency-division multiple access (OFDMA) for enhanced multi-user efficiency, and WPA3 and Enhanced Open (OWE) for greater security
Parametry
| Barva | Bílá |
|---|---|
| Certifikace | UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3-Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth SIG Etherne |
| Hmotnost | 500 g |
| Šířka | 160 mm |
| Výška | 37 mm |
| Hloubka | 161 mm |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 1 |
| Provozní rozsah teplot (T-T) | 0 - 50 °C |
| Rozsah teplot při skladování (T-T) | -40 - 70 °C |
| Doporučená provozní relativní vlhkost | 5 - 93 % |
| Rozsah relativní vlhkosti při skladování (H-H) | 5 - 93 % |
| Slot pro zámek | Ano |
| Typ zámku kabelu | Kensington |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, CE, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD) |
| Počet portů USB 2.0 | 1 |
| Přenosová rychlost sítě Ethernet | 1000 Mbit/s |
| Maximální přenosová rychlost | 1774 Mbit/s |
| Umístění | Strop, Zeď |
| Typ antény | Vnitřní |
| Modulace | 16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK |
| Doporučené použití | Kancelář |
| Auto MDI/MDI-X | Ano |
| Power over Ethernet (PoE) | Ano |
| MIMO | Ano |
| Hmotnost (imperiální jednotky) | 1.1 lbs |
| 5 GHz | Ano |
| Typ MIMO | Víceuživatelské MIMO |
| Typ směrovosti antény | Všesměrová |
| Podpora MACsec | Ne |
| Kód harmonizovaného systému | 85176990 |
| Kompatibilní operační systémy | HPE Aruba Networking Wireless Operating System 8.6.0.0 or later; HPE Aruba Networking Instant OS 8.6.0.0 or later; HPE Aruba Networking Wireless Operating System 10.0.0.0 or later |
| Počet antén | 2 |
| Bezpečnostní algoritmy | WPA,WPA2,WPA3 |
| Spotřeba energie (maximální) | 16.5 W |
| Vstupně-výstupní porty | E0: Ethernet wired network port (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot. |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální přenosová rychlost (5 GHz) | 1200 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 574 Mbit/s |
| Typ USB konektoru | USB Type-A |
| Vlastnosti antény | Integrated antenna |
| Metoda rozprostřeného spektra | DSSS,OFDM,OFDMA |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Typ konektoru antény | RP-SMA |
