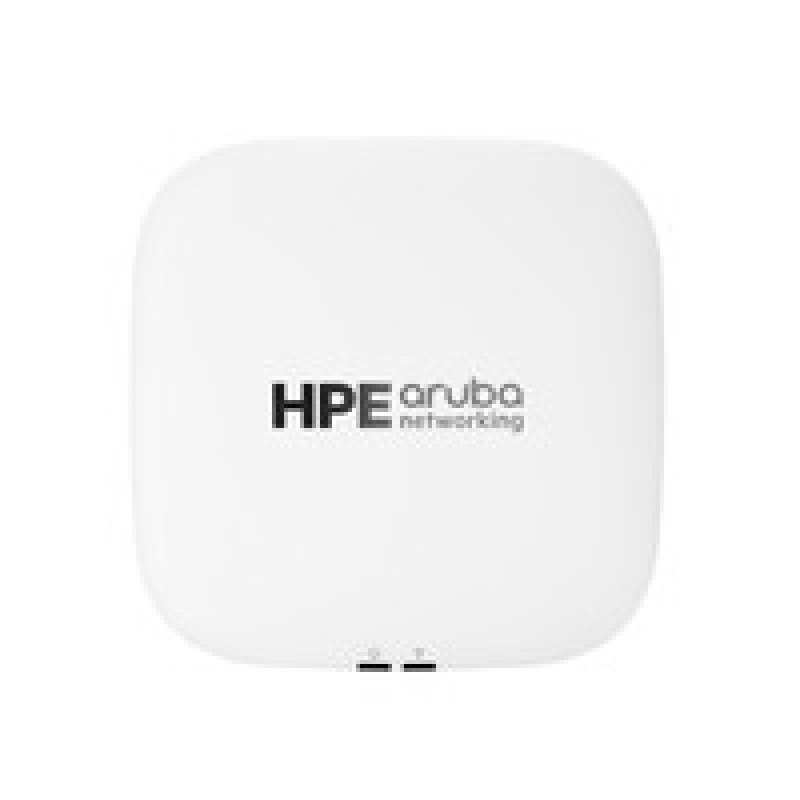

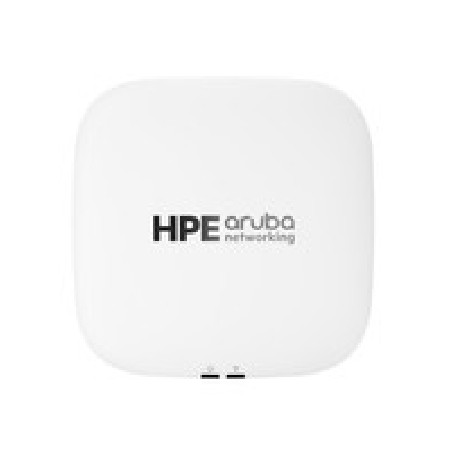

ARUBA NETWORKING AP-503R--STOCK/. R8N03A
Barva Bílá / Certifikace Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 WPA, WPA2, and WPA3 - Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband / Hmotnost 320 g / Šířka 150 mm / Výška 39 mm / Hloubka 150 mm
Všechny parametryKód: R8N03A Výrobce: HPE EAN: 0190017532660
Popis
HPE Aruba Networking 500R Series Remote Access Points enable IT teams to deliver cost-effective Wi-Fi 6 coverage in a compact desktop form factor that is ideal for small branches and remote work. With 1.49 Gbps maximum combined speed, zero touch provisioning (ZTP), wired ports, and an optional USB LTE modem, the 500R series makes it easier to extend the workplace experience anywhere that has an internet or cellular connection. The 500R series is Wi‑Fi CERTIFIED and includes support for all 802.11ax features; Orthogonal frequency-division multiple access (OFDMA) for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500R series includes a limited lifetime warranty.
What is new supporting point:
Wired and wireless connections that include encryption and use authentication to protect the remote network
An optional USB LTE modem that supports high-speed LTE Cat 12 connectivity for cellular backhaul
Zero touch provisioning (ZTP) that provides ease of implementation in branch offices and remote sites, without on-site technical expertise
Cost-effective Wi-Fi 6 remote access points that provide up to 1.49 Gbps maximum combined data rate in a desktop form factor ideal for teleworker or small branch environments
Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
Managed through cloud-native HPE Aruba Networking Central to extend the WAN to home offices, small offices, and even temporary locations
What is new supporting point:
Wired and wireless connections that include encryption and use authentication to protect the remote network
An optional USB LTE modem that supports high-speed LTE Cat 12 connectivity for cellular backhaul
Zero touch provisioning (ZTP) that provides ease of implementation in branch offices and remote sites, without on-site technical expertise
Cost-effective Wi-Fi 6 remote access points that provide up to 1.49 Gbps maximum combined data rate in a desktop form factor ideal for teleworker or small branch environments
Support for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
Managed through cloud-native HPE Aruba Networking Central to extend the WAN to home offices, small offices, and even temporary locations
Parametry
| Barva | Bílá |
|---|---|
| Certifikace | Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 WPA, WPA2, and WPA3 - Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband |
| Hmotnost | 320 g |
| Šířka | 150 mm |
| Výška | 39 mm |
| Hloubka | 150 mm |
| Síťové standardy | IEEE 802.11ax |
| Počet portů Ethernetu (RJ-45) | 2 |
| Provozní rozsah teplot (T-T) | 0 - 40 °C |
| Rozsah teplot při skladování (T-T) | -25 - 55 °C |
| Doporučená provozní relativní vlhkost | 5 - 95 % |
| Rozsah relativní vlhkosti při skladování (H-H) | 10 - 100 % |
| Slot pro zámek | Ano |
| Typ zámku kabelu | Kensington |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, CE, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD) |
| Šířka balení | 240 mm |
| Hloubka balení | 170 mm |
| Výška balení | 50 mm |
| Počet portů USB 2.0 | 1 |
| Hmotnost balení | 600 g |
| Přenosová rychlost sítě Ethernet | 1000 Mbit/s |
| Maximální přenosová rychlost | 1490 Mbit/s |
| Napájecí zdroj | 18 W |
| LED indikátory | Status |
| Umístění | Stůl, Zeď |
| Typ antény | Vnitřní |
| Doporučené použití | Kancelář |
| Auto MDI/MDI-X | Ano |
| Trusted Platform Module (TPM) | Ano |
| Power over Ethernet (PoE) | Ne |
| MIMO | Ano |
| 5 GHz | Ano |
| 6 GHz | Ne |
| Typ směrovosti antény | Všesměrová |
| Podpora MACsec | Ne |
| Kompatibilní operační systémy | HPE Aruba Networking Wireless Operating System 10.5.0.0 or later |
| Počet antén | 2 |
| Bezpečnostní algoritmy | WMM,WPA,WPA2,WPA3 |
| Spotřeba energie (maximální) | 15.4 W |
| Vstupně-výstupní porty | E0: Ethernet wired network port (RJ-45) E1-E2: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální přenosová rychlost (5 GHz) | 1200 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 574 Mbit/s |
| Rozsah DC napětí | 12 V |
| Maximální zisk antény | 5.1 dBi |
| Typ USB konektoru | Micro-USB B,USB Type-A |
| Vlastnosti antény | Integrated antenna |
| Metoda rozprostřeného spektra | DSSS,OFDM,OFDMA |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
