Allied Telesis IEEE 802.11AC WAVE2 WiFi/990-006554-00
Barva Bílá / Počet kusů v balení 1 kusů / Certifikace FCC, CE, RCM, IMDA, KC, MIC, BSMI/NCC, OFCA, SIRIM / Hmotnost 430 g / Šířka 163 mm / Výška 43 mm
Všechny parametryKód: ATTQ140200 Výrobce: Allied Telesis EAN: 0767035217215
Popis

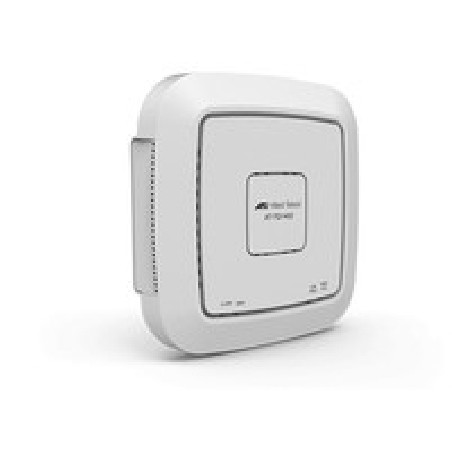

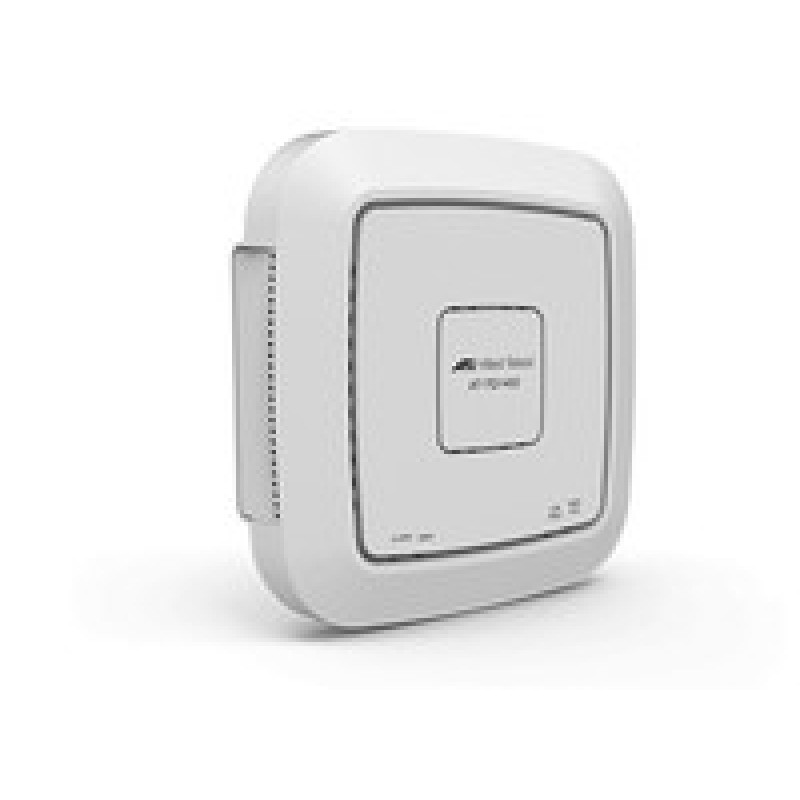

Hybrid 2-radio 802.11ac Wave 2 Wireless Access Point
The Allied Telesis TQ1402 is a hybrid 2-radio wireless access point based on IEEE 802.11ac Wave 2 technology with two spatial streams to deliver a raw capacity of 1.167 Gigabits.
The innovative Channel Blanket hybrid mode of the TQ1402 enables optimized wireless networking for all environments. By allowing simultaneous multi-channel and single-channel WLAN connectivity from the same access point, network administrators can combine the performance attributes of the two architectures to best suit their specific deployment requirements.
The TQ1402 has a single 2.4GHz radio and a single 5GHz IEEE 802.11ac radios, and supports Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput. Combined with a comprehensive feature-set, the APs provide a superior wireless solution for customers from SMBs to large Enterprises.
Smaller businesses can operate the TQ1402 in standalone mode, using its intuitive web-based user interface. For larger installations it can be managed by Allied Telesis Autonomous Wave Control (AWC). With AWC, the wireless network is regularly analyzed, and APs are dynamically updated to reduce interference, minimize coverage gaps, and optimize performance—all with no user intervention. Allied Telesis network management platform, Vista Manager EX, has an AWC wireless management plugin that supports up to 3,000 APs.
Flexible deployment options enable easy installation, with the TQ1402 able to be used on the desktop or mounted on a wall or ceiling. Power may be supplied by Power over Ethernet, for the simplicity of having the Ethernet network connect and power the APs, or by an optional AC power adapter.
The Allied Telesis TQ1402 is a hybrid 2-radio wireless access point based on IEEE 802.11ac Wave 2 technology with two spatial streams to deliver a raw capacity of 1.167 Gigabits.
The innovative Channel Blanket hybrid mode of the TQ1402 enables optimized wireless networking for all environments. By allowing simultaneous multi-channel and single-channel WLAN connectivity from the same access point, network administrators can combine the performance attributes of the two architectures to best suit their specific deployment requirements.
The TQ1402 has a single 2.4GHz radio and a single 5GHz IEEE 802.11ac radios, and supports Multi-User Multiple Input and Multiple Output (MU-MIMO), allowing multiple clients to send and receive data at the same time, substantially increasing throughput. Combined with a comprehensive feature-set, the APs provide a superior wireless solution for customers from SMBs to large Enterprises.
Smaller businesses can operate the TQ1402 in standalone mode, using its intuitive web-based user interface. For larger installations it can be managed by Allied Telesis Autonomous Wave Control (AWC). With AWC, the wireless network is regularly analyzed, and APs are dynamically updated to reduce interference, minimize coverage gaps, and optimize performance—all with no user intervention. Allied Telesis network management platform, Vista Manager EX, has an AWC wireless management plugin that supports up to 3,000 APs.
Flexible deployment options enable easy installation, with the TQ1402 able to be used on the desktop or mounted on a wall or ceiling. Power may be supplied by Power over Ethernet, for the simplicity of having the Ethernet network connect and power the APs, or by an optional AC power adapter.
Parametry
| Barva | Bílá |
|---|---|
| Počet kusů v balení | 1 kusů |
| Certifikace | FCC, CE, RCM, IMDA, KC, MIC, BSMI/NCC, OFCA, SIRIM |
| Hmotnost | 430 g |
| Šířka | 163 mm |
| Výška | 43 mm |
| Hloubka | 165 mm |
| Síťové standardy | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Počet portů Ethernetu (RJ-45) | 1 |
| Provozní rozsah teplot (T-T) | 0 - 45 °C |
| Rozsah teplot při skladování (T-T) | -25 - 70 °C |
| Doporučená provozní relativní vlhkost | 0 - 90 % |
| Rozsah relativní vlhkosti při skladování (H-H) | 0 - 95 % |
| Vstupní střídavé napětí | 100 - 240 V |
| Frekvence vstupního střídavého napětí | 47-63 Hz |
| Provozní nadmořská výška | 0 - 3000 m |
| Počet portů USB 2.0 | 0 |
| Přenosová rychlost sítě Ethernet | 10,100,1000 Mbit/s |
| Standardy Wi-Fi | Wi-Fi 5 (802.11ac) |
| Maximální přenosová rychlost | 1167 Mbit/s |
| Výstupní napětí | 12 V |
| Umístění | Zeď |
| Typ antény | Vnitřní |
| Modulace | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Podpora napájení po Ethernetu (PoE) | Ano |
| Wi-Fi pásmo | 2,4 GHz + 5 GHz dual |
| Spotřeba elektrické energie | 7,4 W |
| Spotřeba energie (typická) | 7.4 W |
| Power over Ethernet (PoE) | Ano |
| 5 GHz | Ano |
| Podpora VLAN | Ano |
| Šifrování/zabezpečení | 64-bit WEP, 128-bit WEP, AES, HTTPS, SNMP, TKIP, WPA, WPA2 |
| Kód harmonizovaného systému | 85176990 |
| Podpora kontroly toku | Ano |
| Maximální spotřeba energie | 12 W |
| Bezpečnostní algoritmy | 64-bit WEP,128-bit WEP,AES,HTTPS,SNMP,TKIP,WPA,WPA2 |
| Filtrování MAC adres | Ano |
| Spotřeba energie (maximální) | 12 W |
| Pásmo 2,4 GHz | Ano |
| Výstupní proud | 2 A |
| Podpora řízení toku | Ano |
| Možnost aktualizace firmwaru | Ano |
| Funkce identifikátoru bezdrátové sítě (SSID) | Hidden SSID |
| RADIUS (Remote Authentication Dial-In User Service) | Ano |
| Remote Authentication Dial-In User Service (RADIUS) | Ano |
| Funkce Service Set Identifier (SSID) | Hidden SSID |
| Aktualizovatelný firmware | Ano |
| DHCP klient | Ano |
| Automatický bezdrátový systém distribuce (WDS) | Ano |
| Automatický bezdrátový distribuční systém (WDS) | Ano |
Komentáře (0)
Na tento produkt momentálně není přidána žádná recenze.
IEEE 802.11ac Wave2 wireless access point with dual-band radios and embedded antenna. AC power adapter not included.
