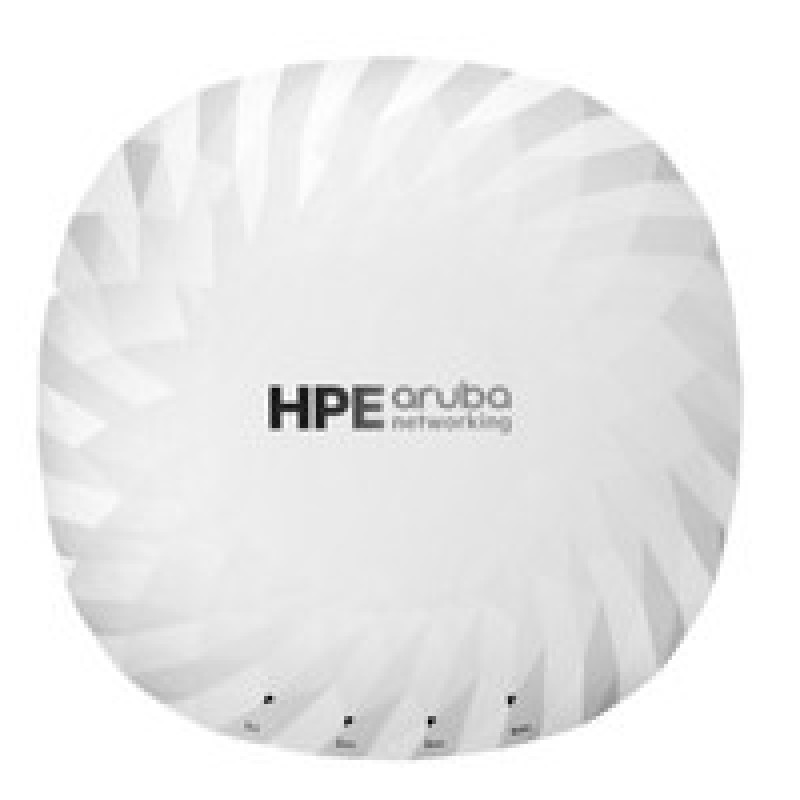

HPE ANW AP-745 (US) Campus AP-Stock/.
Barva Bílá / Certifikace UL2043 plenum rating Wi‐Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, W-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) / Typ balení Střední/velké / Hmotnost 1700 g / Šířka 267 mm / Výška 86.9 mm
Všechny parametryKód: S5R01A Výrobce: HPE
Popis
The HPE Aruba Networking 740 Series Campus Access Points are high performance Wi-Fi 7 access points designed to deliver high-capacity and secure Wi-Fi ideal for demanding indoor use cases. Leveraging the Wi-Fi 7 standard, this series provides the ideal combination of high end performance with rightsized features to enhance security, support IoT devices, and provide accurate location-aware capabilities. HPE Aruba Networking Central helps drive efficient operations and provides AI-automation and machine learning (ML) insights for fine-tuned wireless connectivity across diverse environments. Future-proof with the 740 series that delivers up to 9 Gbps maximum tri-band aggregate data rate and goes beyond the standard with a built-in flexible IoT radio that supports Bluetooth or 802.15.4/Zigbee, a fast 5 GbE wired port, and AI-powered dynamic power save mode that helps reduce energy consumption. The 740 series is Wi-Fi CERTIFIED and includes a limited lifetime warranty.
What is new supporting point:
AI-driven orchestration and management with HPE Aruba Networking Central helps provide amazing wireless experiences
Comprehensive triband coverage across 2.4 GHz, 5 GHz, and 6 GHz and delivers up to 9 Gbps maximum tri-band aggregate data rate
Seamlessly onboard IoT devices with flexible integrated IoT radio that can be configured for Bluetooth or 802.15.4/Zigbee operation
Fast 5 Gbps Ethernet wired connectivity and conveniently powered by PoE
Dynamic power save mode helps reduce energy consumption
High performance compact Wi-Fi 7 access points with right-sized features ideal for high-density indoor deployments
What is new supporting point:
AI-driven orchestration and management with HPE Aruba Networking Central helps provide amazing wireless experiences
Comprehensive triband coverage across 2.4 GHz, 5 GHz, and 6 GHz and delivers up to 9 Gbps maximum tri-band aggregate data rate
Seamlessly onboard IoT devices with flexible integrated IoT radio that can be configured for Bluetooth or 802.15.4/Zigbee operation
Fast 5 Gbps Ethernet wired connectivity and conveniently powered by PoE
Dynamic power save mode helps reduce energy consumption
High performance compact Wi-Fi 7 access points with right-sized features ideal for high-density indoor deployments
Parametry
| Barva | Bílá |
|---|---|
| Certifikace | UL2043 plenum rating Wi‐Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, W-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Typ balení | Střední/velké |
| Hmotnost | 1700 g |
| Šířka | 267 mm |
| Výška | 86.9 mm |
| Hloubka | 252 mm |
| Bluetooth | Ano |
| Síťové standardy | IEEE 802.11be,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 1 |
| Slot pro zámek | Ano |
| Typ zámku kabelu | Kensington |
| Certifikáty shody | Federální komunikační komise (FCC), ISED |
| Šířka balení | 252 mm |
| Hloubka balení | 267 mm |
| Verze Bluetooth | 5.4 |
| Počet portů USB 2.0 | 1 |
| Přenosová rychlost sítě Ethernet | 5000 Mbit/s |
| Maximální přenosová rychlost | 9000 Mbit/s |
| Umístění | Ceiling |
| Typ antény | Vnitřní |
| Doporučené použití | Kancelář |
| Power over Ethernet (PoE) | Ano |
| MIMO | Ano |
| 5 GHz | Ano |
| Typ MIMO | Víceuživatelské MIMO |
| 6 GHz | Ano |
| Typ směrovosti antény | Všesměrová |
| Technologie kabeláže | 10/100/1000/2500Base-T |
| Podpora MACsec | Ne |
| Šířka pásma | 0.08 GHz |
| Kompatibilní operační systémy | HPE Aruba Networking Wireless Operating System 10 |
| Počet konektorů | 2 |
| Počet antén | 4 |
| Vstupně-výstupní porty | E0: One Ethernet wired network port (RJ‐45) U0: One USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro‐B USB physical jack) Kensington security slot |
| Podporované síťové protokoly | WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE), WMM, W-Fi agile multiband |
| Frekvenční pásmo | 20 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 9 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Beamforming | Ano |
| Band steering | Ano |
| Maximální přenosová rychlost (6 GHz) | 2400 Mbit/s |
| Polarizace | Dual polarization |
| Typ USB konektoru | Micro-USB B |
| Připojení WAN | Ethernet (RJ-45) |
| Vlastnosti antény | Integrated antenna |
| Wi-Fi Multimedia (WMM)/(WME) | Ano |
| Podporovaný typ Power over Ethernet (PoE) | PoE+ |
| Metoda rozprostřeného spektra | OFDM |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Šířka pásma kanálu | 160 MHz |
| Podporované protokoly | IEEE 802.15.4/Zigbee; WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE); WMM; W-Fi agile multiband; Bluetooth 5.4; 802.11 FTM support |
| Prostorové datové toky | 4x4: 5 GHz and 6 GHz; 2x2: 2.4 GHz |
| Počet vnitřních portů RJ-45 | 1 |
