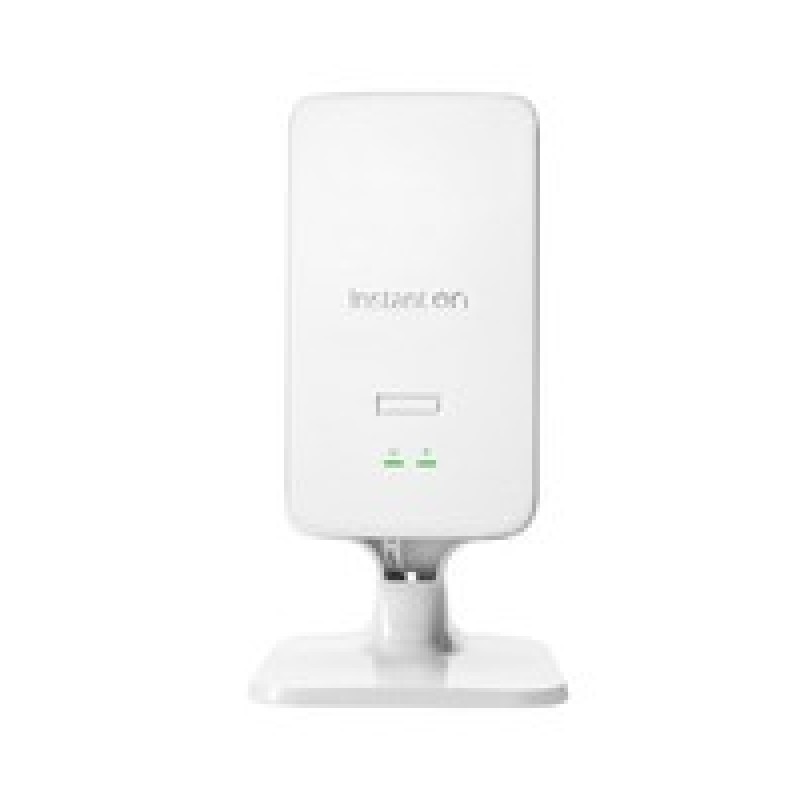

HPE NW Ion AP (JP) AP22D-Stock/.
Barva Bílá / Certifikace Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 / Hmotnost 360 g / Šířka 86 mm / Výška 150 mm / Hloubka 47 mm
Všechny parametryKód: S1U77A Výrobce: HPE
Popis
The HPE Networking Instant On Access Points AP22D is an SMB-focused Wi-Fi CERTIFIED 6™ access point that provides reliable wired and wireless connectivity over a 2.5 GbE uplink port with a minimal device footprint. This access point can reduce device clutter while powering downlink devices such as IP Phones or receipt printers with 2x 15W of PoE (802.3af) and supporting 75+ wireless devices over 802.11ax Wi-Fi 6 with an aggregate wireless throughput of 1.7 Gbps. Easily manage the Instant On AP22D with the Instant On mobile app or portal to create guest and employee networks, govern access control lists, and set PoE schedules to customize power use. Make the most of your limited space in your small business by mounting the Instant On AP22D to a desk or wall with included mounting kits.
What is new supporting point:
2.5 GbE uplink port provides up to 2x more bandwidth than 1 GbE ports without the need for new Cat5/6(a) cables to be installed.
Four 1 GbE downlink ports that supply up to 2x 15W of PoE (802.3af).
Up to 1.7 Gbps aggregate wireless throughput.
Wi-Fi CERTIFIED 6™ wireless access point, with 2.5 GbE uplink port
What is new supporting point:
2.5 GbE uplink port provides up to 2x more bandwidth than 1 GbE ports without the need for new Cat5/6(a) cables to be installed.
Four 1 GbE downlink ports that supply up to 2x 15W of PoE (802.3af).
Up to 1.7 Gbps aggregate wireless throughput.
Wi-Fi CERTIFIED 6™ wireless access point, with 2.5 GbE uplink port
Parametry
| Barva | Bílá |
|---|---|
| Certifikace | Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3 |
| Hmotnost | 360 g |
| Šířka | 86 mm |
| Výška | 150 mm |
| Hloubka | 47 mm |
| Síťové standardy | IEEE 802.11ax |
| Počet portů Ethernetu (RJ-45) | 5 |
| Provozní rozsah teplot (T-T) | 0 - 40 °C |
| Slot pro zámek | Ano |
| Typ zámku kabelu | Kensington |
| Počet portů USB 2.0 | 1 |
| Přenosová rychlost sítě Ethernet | 1000,2500 Mbit/s |
| Maximální přenosová rychlost | 1200 Mbit/s |
| Umístění | Stůl, Zeď |
| Typ antény | Vnitřní |
| Spotřeba energie (typická) | 50 W |
| Power over Ethernet (PoE) | Ano |
| DC-in konektor | Ano |
| MIMO | Ano |
| 5 GHz | Ano |
| 6 GHz | Ne |
| Typ směrovosti antény | Polosměrová |
| Technologie kabeláže | 10/100/1000Base-T(X) |
| Montáž | Sada pro montáž na zeď nebo na stůl |
| Počet antén | 2 |
| Bezpečnostní algoritmy | OWE,WPA2,WPA3 |
| Spotřeba energie (maximální) | 51 W |
| Vstupně-výstupní porty | 1x 2.5 GbE Base-T PoE Class 4/6 uplink 2x 1 GbE Base-T PoE Class 3 downlink 2x 1 GbE Base-T downlink DC power connector LED status indicators Reset/LED control button Kensington security slot |
| Pásmo 2,4 GHz | Ano |
| Počet uživatelů | 75 user(s) |
| Maximální přenosová rychlost (5 GHz) | 1200 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 574 Mbit/s |
| Rozsah DC napětí | 48 V |
| Maximální zisk antény | 5.4 dBi |
