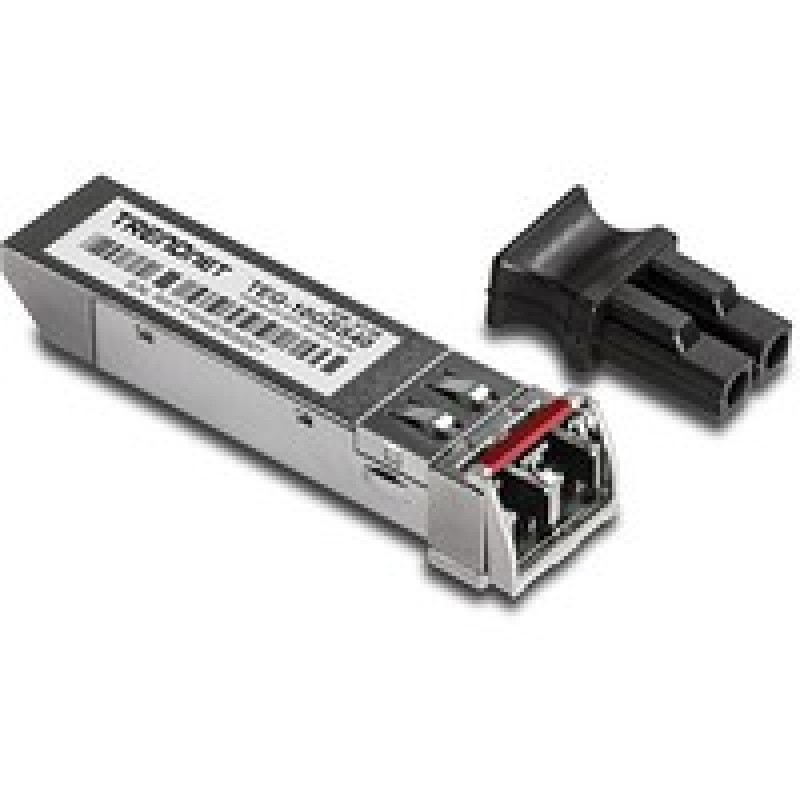

TRENDnet 10GBASE-LR SFP+ Single Mode/LC Module (40KM With DDM)
Certifikace CE / Hmotnost 22 g / Šířka 14.8 mm / Výška 11.85 mm / Hloubka 56.5 mm / Síťové standardy IEEE 802.3ae
Všechny parametryKód: TEG10GBS40 Výrobce: TRENDnet EAN: 0710931140194
Popis
TRENDnet’s hot-pluggable TEG-10GBS40, 10GBASE-ER SFP+ Single Mode LC Module, works with a MSA compliant SFP+ slot. This Single Mode transceiver spans distances up to 40 km (24.9 miles), comes with a LC duplex connector, and supports up to 10.3 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage.
Hot-Pluggable SFP+
Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot
Fiber Wavelength
Compatible with Single Mode 1550 nm transmissions
Fiber Distance
Supports networking for distances up to 40 km (24.9 miles)
Fiber Port
LC-type duplex connector
DDM Support
Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage
Power Supply
Single 3.3 volt power supply
Operating Temperature
Rated for an operating temperature range of 0 to 70 °C (32 to 158 °F)
Standards
Compliant with SFF-8431, SFF-8472, IEC-60825, FDA 21 CFR 1040.10/ 1040.11, and IEEE802.3ae 10GBASE-ER/EW
Hot-Pluggable SFP+
Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot
Fiber Wavelength
Compatible with Single Mode 1550 nm transmissions
Fiber Distance
Supports networking for distances up to 40 km (24.9 miles)
Fiber Port
LC-type duplex connector
DDM Support
Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage
Power Supply
Single 3.3 volt power supply
Operating Temperature
Rated for an operating temperature range of 0 to 70 °C (32 to 158 °F)
Standards
Compliant with SFF-8431, SFF-8472, IEC-60825, FDA 21 CFR 1040.10/ 1040.11, and IEEE802.3ae 10GBASE-ER/EW
Parametry
| Certifikace | CE |
|---|---|
| Hmotnost | 22 g |
| Šířka | 14.8 mm |
| Výška | 11.85 mm |
| Hloubka | 56.5 mm |
| Síťové standardy | IEEE 802.3ae |
| Provozní rozsah teplot (T-T) | 0 - 70 °C |
| Doporučená provozní relativní vlhkost | 0 - 95 % |
| Maximální přenosová vzdálenost | 40000 m |
| Maximální přenosová rychlost | 10000 Mbit/s |
| Vlnová délka | 1550 nm |
| Spotřeba energie (typická) | 0.581 W |
| Optický konektor | LC |
| Typ rozhraní | SFP+ |
| Typ transceiveru SFP | Optický |
| Podpora jednovidového vlákna (SMF) | Ano |
| Kód harmonizovaného systému | 85369010 |
| Počet optických portů | 1 |
| Standard transceiveru SFP | ER |
| Podpora Hot-Plug | Ano |
