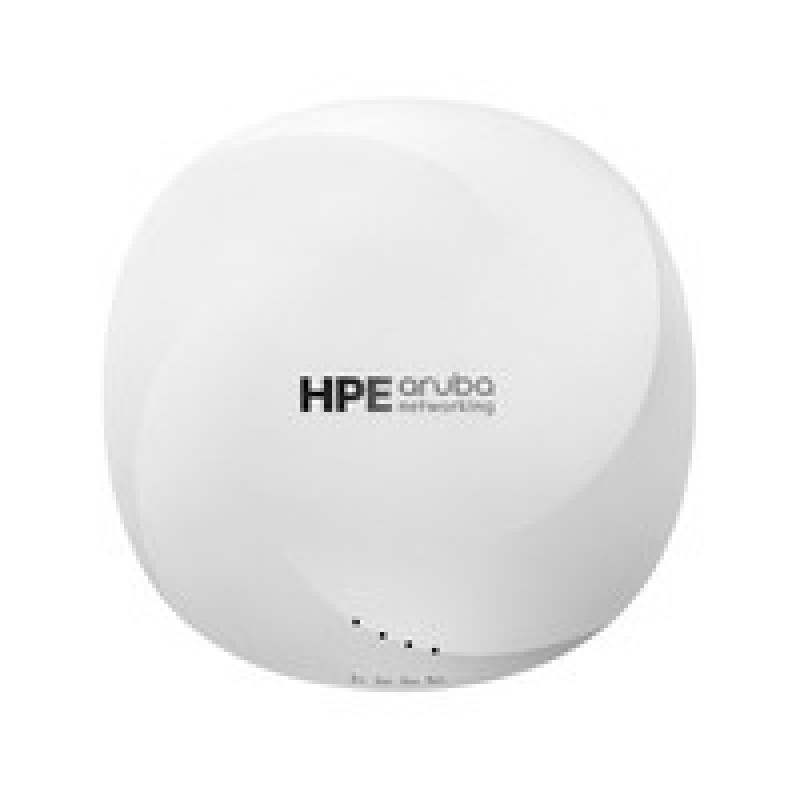

HPE Aruba AP-615 (IL) Campus Stock/.
Barva Bílá / Certifikace UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location Bluetooth SI / Hmotnost 720 g / Šířka 201 mm / Výška 51 mm / Hloubka 183 mm
Všechny parametryKód: R7J47A Výrobce: HPE
Popis
HPE Aruba Networking 610 Series Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and Internet of Things (IoT) devices, and expanded use of the cloud. The compact and cost-effective 610 series features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-access point deployment. Built-in GPS receivers and fine time measurements enable the 610 series to automatically locate themselves and serve as reference points for accurate indoor location measurements. The 610 series includes a limited lifetime warranty.
What is new supporting point:
The 610 series provides up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications
Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate
Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments
Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements
Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source [1]
It is offered as optional eco-friendly 10-pack
What is new supporting point:
The 610 series provides up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications
Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate
Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments
Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements
Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source [1]
It is offered as optional eco-friendly 10-pack
Parametry
| Barva | Bílá |
|---|---|
| Certifikace | UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location Bluetooth SI |
| Hmotnost | 720 g |
| Šířka | 201 mm |
| Výška | 51 mm |
| Hloubka | 183 mm |
| Wi-Fi | 2.4 GHz, 5 GHz, and 6 GHz |
| Bluetooth | Ano |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 1 |
| Provozní rozsah teplot (T-T) | 0 - 50 °C |
| Rozsah teplot při skladování (T-T) | -25 - 55 °C |
| Doporučená provozní relativní vlhkost | 5 - 95 % |
| Rozsah relativní vlhkosti při skladování (H-H) | 10 - 100 % |
| Slot pro zámek | Ano |
| Typ zámku kabelu | Kensington |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, CE, Směrnice pro nízké napětí (LVD) |
| Šířka balení | 212 mm |
| Hloubka balení | 194 mm |
| Výška balení | 66 mm |
| Verze Bluetooth | 5.0 |
| Počet portů USB 2.0 | 1 |
| Hmotnost balení | 800 g |
| Přenosová rychlost sítě Ethernet | 5000 Mbit/s |
| Maximální přenosová rychlost | 2400 Mbit/s |
| Bluetooth Low Energy (BLE) | Ano |
| Umístění | Ceiling |
| Typ antény | Vnitřní |
| Doporučené použití | Kancelář |
| Trusted Platform Module (TPM) | Ano |
| Power over Ethernet (PoE) | Ano |
| MIMO | Ano |
| Hmotnost (imperiální jednotky) | 1.59 lbs |
| 5 GHz | Ano |
| 6 GHz | Ano |
| Typ směrovosti antény | Všesměrová |
| Podpora MACsec | Ne |
| Kompatibilní operační systémy | HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10 |
| Bezpečnostní algoritmy | WPA,WPA2,WPA3,WPA3-SAE |
| Vstupně-výstupní porty | E0: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální přenosová rychlost (5 GHz) | 1200 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 574 Mbit/s |
| Maximální přenosová rychlost (6 GHz) | 2400 Mbit/s |
| Maximální zisk antény | 6 dBi |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
