- Vyprodáno

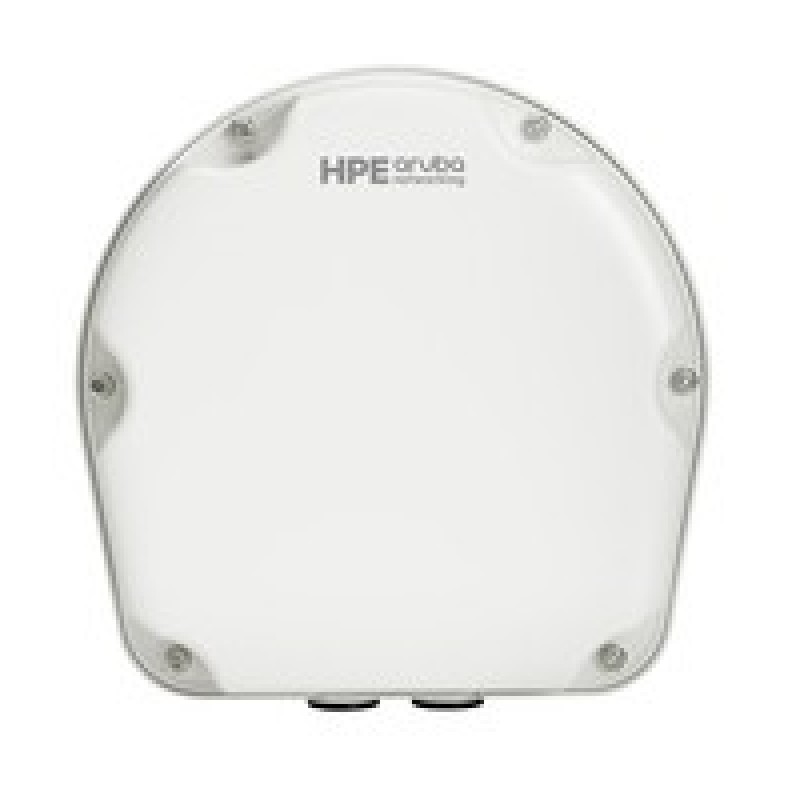

HPE AP-577EX JP OTDR 11AX HAZL STOC/.
Barva Bílá / Certifikace CB Scheme Safety, cTUVus Wi‐Fi Alliance CERTIFIED 802.11a/b/g/n/ Wi-Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location Class 1 Div 2 ATEX Zone 2 / Stupeň krytí IP IP66, IP67 / Hmotnost 2100 g / Šířka 230 mm / Výška 130 mm
Všechny parametryKód: R4W37A Výrobce: HPE EAN: 0190017447278
Popis
HPE Aruba Networking 570EX Series Hazardous Location Access Points provide high-performance wireless connectivity for outdoor hazardous locations like oil fields and rigs, mining facilities, and environments with explosive atmospheres and vapors that require Class 1 Division 2 or ATEX Zone 2 requirements. With Wi-Fi 6 capabilities, Bluetooth 5 and 802.15.4/Zigbee radios, and maximum aggregate data rate of 2.69 Gbps, the 570EX series delivers speed and reliability needed to bring Wi-Fi to hazardous locations. These ruggedized outdoor access points (APs) are purpose-built for hazardous locations and can be quickly deployed using zero touch provisioning. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 570EX series includes a limited lifetime warranty.
What is new supporting point:
Class 1 Division 2 and ATEX Zone 2 certified outdoor Wi-Fi 6 access points provide up to 2.69 Gbps maximum aggregate data rate
Purpose built for hazardous locations and to survive in some of the harshest outdoor environments and extreme temperatures (-40˚C to +65˚C)
Provides policy enforcement for wireless traffic through dynamic segmentation
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee
Client and RF optimization to match clients with the best available access point and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls automatically enforces consistent policies across networks, keeping users and devices secure
What is new supporting point:
Class 1 Division 2 and ATEX Zone 2 certified outdoor Wi-Fi 6 access points provide up to 2.69 Gbps maximum aggregate data rate
Purpose built for hazardous locations and to survive in some of the harshest outdoor environments and extreme temperatures (-40˚C to +65˚C)
Provides policy enforcement for wireless traffic through dynamic segmentation
Ready for Internet of Things (IoT) with a built-in Bluetooth 5 and 802.15.4 radio that supports Zigbee
Client and RF optimization to match clients with the best available access point and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls automatically enforces consistent policies across networks, keeping users and devices secure
Parametry
| Barva | Bílá |
|---|---|
| Certifikace | CB Scheme Safety, cTUVus Wi‐Fi Alliance CERTIFIED 802.11a/b/g/n/ Wi-Fi CERTIFIED 6 (802.11ax) Wi-Fi CERTIFIED ac (with Wave 2 features) Wi-Fi CERTIFIED Location Class 1 Div 2 ATEX Zone 2 |
| Stupeň krytí IP | IP66, IP67 |
| Hmotnost | 2100 g |
| Šířka | 230 mm |
| Výška | 130 mm |
| Hloubka | 220 mm |
| Bluetooth | Ano |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 2 |
| Provozní rozsah teplot (T-T) | -40 - 65 °C |
| Rozsah teplot při skladování (T-T) | -40 - 70 °C |
| Doporučená provozní relativní vlhkost | 5 - 93 % |
| Provozní nadmořská výška | 0 - 3000 m |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, CE, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD) |
| Verze Bluetooth | 5.0 |
| Počet portů USB 2.0 | 1 |
| Přenosová rychlost sítě Ethernet | 1000,2500,5000 Mbit/s |
| Maximální přenosová rychlost | 4800 Mbit/s |
| Umístění | Strop, Tyč, Zeď |
| Typ antény | Vnitřní |
| Doporučené použití | Venkovní |
| Auto MDI/MDI-X | Ano |
| Trusted Platform Module (TPM) | Ano |
| Power over Ethernet (PoE) | Ano |
| MIMO | Ano |
| Hmotnost (imperiální jednotky) | 4.6 lbs |
| 5 GHz | Ano |
| 6 GHz | Ne |
| Typ směrovosti antény | Směrová |
| Podpora MACsec | Ne |
| Kompatibilní operační systémy | HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10 |
| Bezpečnostní algoritmy | WPA2,WPA3 |
| Spotřeba energie (maximální) | 32 W |
| Vstupně-výstupní porty | E0: HPE Smart Rate port (RJ-45) E1: 100/1000BASE-T (RJ-45) USB-C console interface |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), peak data rate 2.69 Gbps, maximum data rate 5.38 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální zisk antény | 6.8 dBi |
| Typ USB konektoru | USB Type-C |
| Vlastnosti antény | Integrated antenna |
| Metoda rozprostřeného spektra | DSSS,OFDM,OFDMA |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Maximal-Ratio Combining (MRC) | Ano |
| Cyclic Shift Diversity (CSD) | Ano |
| Cyclic Delay Diversity (CDD) | Ano |
Komentáře (0)
Na tento produkt momentálně není přidána žádná recenze.
Aruba Networking AP-577EX (JP) Dual Radio 2x2/4x4 Wi-Fi 6 Internal Directional HazLoc AP
