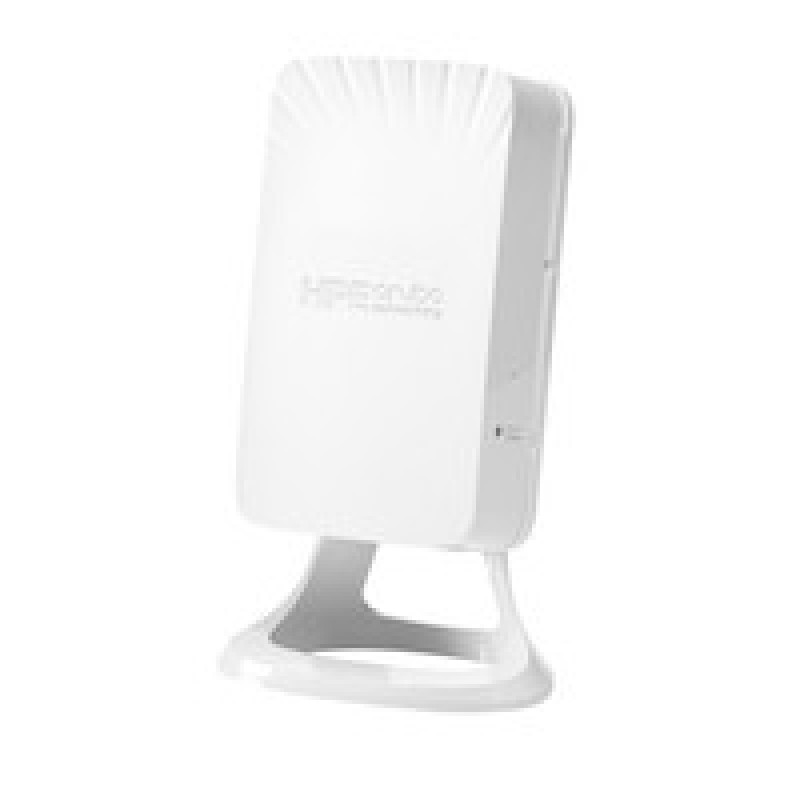

HPE Aruba AP-505H (JP) TAA UN Stock/.
Barva Bílá / Certifikace Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet All / Hmotnost 360 g / Šířka 86 mm / Výška 150 mm / Hloubka 47 mm
Všechny parametryKód: R3V51A Výrobce: HPE EAN: 0190017395753
Popis
HPE Aruba Networking 500H Series Hospitality Access Points deliver cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.49 Gbps maximum combined speed, zero touch provisioning (ZTP), and wired ports, the 500H series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H series is Wi-Fi CERTIFIED and supports 802.11ax features; orthogonal frequency-division multiple access (OFDMA) for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500H series includes a limited lifetime warranty.
What is new supporting point:
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
The AP provides IoT-ready Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support
What is new supporting point:
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
The AP provides IoT-ready Bluetooth 5 and Zigbee support
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support
Parametry
| Barva | Bílá |
|---|---|
| Certifikace | Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet All |
| Hmotnost | 360 g |
| Šířka | 86 mm |
| Výška | 150 mm |
| Hloubka | 47 mm |
| Bluetooth | Ano |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 5 |
| Provozní rozsah teplot (T-T) | 0 - 40 °C |
| Rozsah teplot při skladování (T-T) | -40 - 70 °C |
| Doporučená provozní relativní vlhkost | 5 - 93 % |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, CE, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD) |
| Verze Bluetooth | 5.0 |
| Počet portů USB 2.0 | 1 |
| Přenosová rychlost sítě Ethernet | 1000,5000 Mbit/s |
| Maximální přenosová rychlost | 1487 Mbit/s |
| Umístění | Stůl, Zeď |
| Typ antény | Vnitřní |
| Modulace | 16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK |
| Doporučené použití | Kancelář |
| Auto MDI/MDI-X | Ano |
| MIMO | Ano |
| Hmotnost (imperiální jednotky) | 0.8 lbs |
| 5 GHz | Ano |
| Typ MIMO | Víceuživatelské MIMO |
| Typ směrovosti antény | Polosměrová |
| Podpora MACsec | Ne |
| Kompatibilní operační systémy | HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H) |
| Počet antén | 2 |
| Bezpečnostní algoritmy | WPA,WPA2,WPA3 |
| Spotřeba energie (maximální) | 50 W |
| Vstupně-výstupní porty | 1 x 10/100/1000BASE-T RJ-45 port, auto-sensing link speed and MDI/MDX 4 x 10/100/1000BASE-T (RJ-45) ports, auto-sensing link speed and MDI/MDX |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální přenosová rychlost (5 GHz) | 1200 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 287 Mbit/s |
| Maximální zisk antény | 5.4 dBi |
| Typ USB konektoru | USB Type-A |
| Vlastnosti antény | Integrated antenna |
| Metoda rozprostřeného spektra | DSSS,OFDM,OFDMA |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
