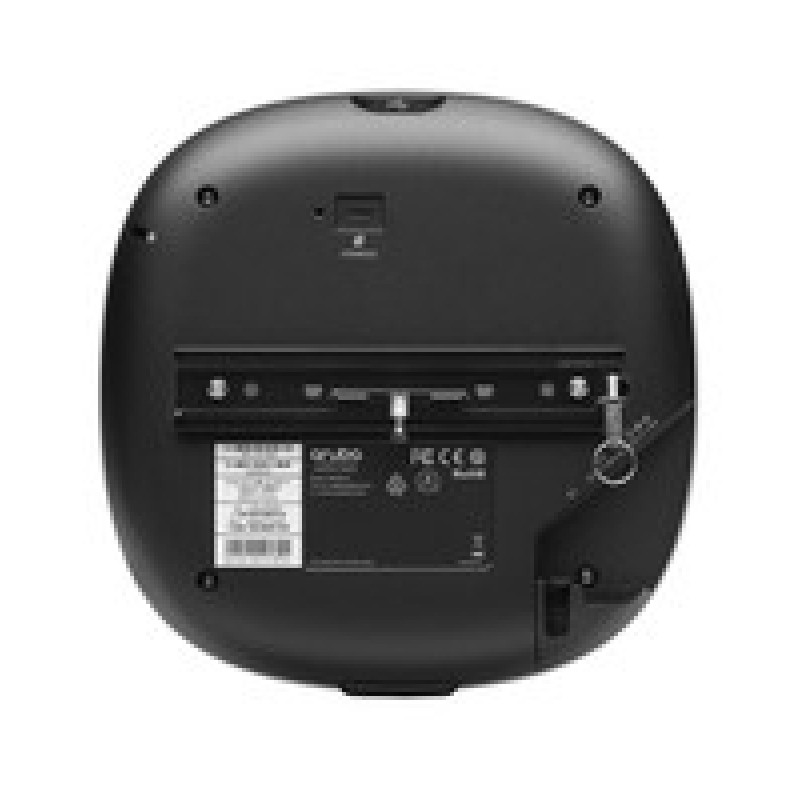

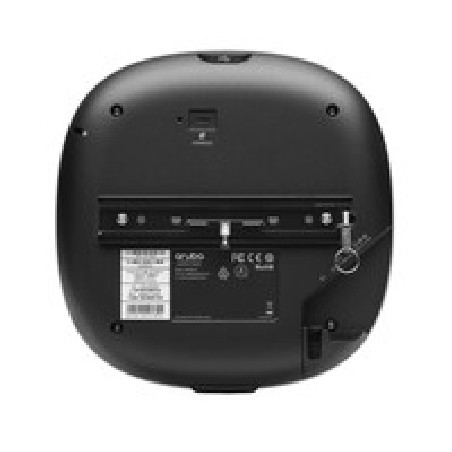

HPE Aruba AP-515 IL UNIF AP Stock/.
Barva Bílá / Certifikace UL2043 plenum rating Bluetooth SIG Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location / Hmotnost 810 g / Šířka 200 mm / Výška 46 mm / Hloubka 200 mm
Všechny parametryKód: Q9H60A Výrobce: HPE EAN: 0190017273600
Popis
The HPE Aruba Networking 510 Series Campus Access Points deliver Wi-Fi 6 coverage ideal for office spaces, training and meeting facilities, and hospitals. With 2.69 Gbps maximum combined data rate, multi-gigabit Ethernet for fast wired connectivity, and built-in Internet of Things (IoT) radio, the 510 series delivers reliable, high-performance Wi‑Fi CERTIFIED for medium density campus environments. The 510 series can be deployed using zero touch provisioning (ZTP) for ease of implementation at remote locations. It is Wi-Fi and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 510 series includes a limited lifetime warranty.
What is new supporting point:
Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate
The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports
It has client and RF optimization to match clients with the optimal AP and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
It is offered in optional eco-friendly 10-packs
What is new supporting point:
Wi-Fi 6 AP provides up to 2.69 Gbps maximum combined data rate
The 510 series supports OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
IoT-ready with Bluetooth 5 and Zigbee support and fast wired connections with 2.5 Gbps Ethernet and 1 Gbps Ethernet ports
It has client and RF optimization to match clients with the optimal AP and reduce coverage gaps
Dynamic segmentation and policy enforcement firewalls (PEF) automatically enforce consistent policies across wired and wireless networks, enhancing user and device security
It is offered in optional eco-friendly 10-packs
Parametry
| Barva | Bílá |
|---|---|
| Certifikace | UL2043 plenum rating Bluetooth SIG Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location |
| Hmotnost | 810 g |
| Šířka | 200 mm |
| Výška | 46 mm |
| Hloubka | 200 mm |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 2 |
| Provozní rozsah teplot (T-T) | 0 - 50 °C |
| Rozsah teplot při skladování (T-T) | -40 - 70 °C |
| Doporučená provozní relativní vlhkost | 5 - 93 % |
| Rozsah relativní vlhkosti při skladování (H-H) | 5 - 93 % |
| Slot pro zámek | Ano |
| Typ zámku kabelu | Kensington |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, CE, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD) |
| Šířka balení | 230 mm |
| Hloubka balení | 220 mm |
| Výška balení | 72 mm |
| Počet portů USB 2.0 | 1 |
| Hmotnost balení | 1010 g |
| Přenosová rychlost sítě Ethernet | 1000,2500,5000 Mbit/s |
| Maximální přenosová rychlost | 5375 Mbit/s |
| Umístění | Ceiling |
| Typ antény | Vnitřní |
| Modulace | 16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK |
| Doporučené použití | Kancelář |
| Auto MDI/MDI-X | Ano |
| Spotřeba energie (typická) | 16 W |
| Power over Ethernet (PoE) | Ano |
| DC-in konektor | Ano |
| MIMO | Ano |
| 5 GHz | Ano |
| Typ směrovosti antény | Všesměrová |
| Podpora MACsec | Ne |
| Kompatibilní operační systémy | HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later. |
| Počet antén | 4 |
| Bezpečnostní algoritmy | WMM,WPA,WPA2 |
| Vstupně-výstupní porty | E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slo |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální přenosová rychlost (5 GHz) | 4800 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 575 Mbit/s |
| Maximální zisk antény | 7.5 dBi |
| Typ USB konektoru | USB Type-A |
| Vlastnosti antény | Integrated antenna |
| Metoda rozprostřeného spektra | DSSS,OFDM |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
