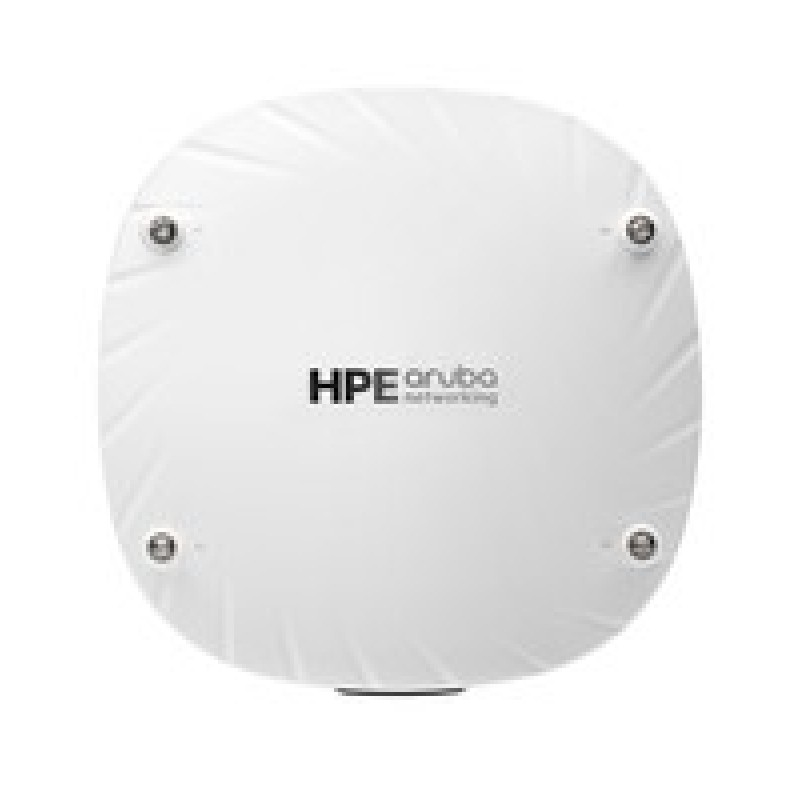

HPE Aruba AP-534 (EG) Unified Stock/.
Barva Bílá / Certifikace UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth Special In / Hmotnost 1000 g / Šířka 240 mm / Výška 57 mm / Hloubka 240 mm
Všechny parametryKód: JZ328A Výrobce: HPE EAN: 0190017232676
Popis
The HPE Aruba Networking 530 Series Campus Access Points provide Wi-Fi 6 connectivity for high-density deployments such as larger office spaces, training and meeting facilities, and hospitals. Providing up to 2.97 Gbps combined aggregate data rate, this series is built on Wi-Fi 6 standards (IEEE 802.11ax) and includes features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency. The 530 series can be deployed using zero touch provisioning (ZTP) without on‑site technical expertise, for ease of implementation in branch offices and for remote work. HPE Aruba Networking Central provides a single pane of glass for overseeing wired and wireless LANs, WANs, and VPNs. AI‑powered analytics, end‑to‑end orchestration and automation, and advanced security features are built natively into the solution. The 530 series includes a limited lifetime warranty.
What is new supporting point:
Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEFs)
IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity
Deploy models with internal antennas or connectorized models that support external antennas to meet the range of environments
Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate
Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO)
What is new supporting point:
Protects network security with stronger encryption and authentication, secure credentials/keys storage, and user and IoT access policy enforcement firewalls (PEFs)
IoT-ready with support for Bluetooth 5 and Zigbee and two 5 Gbps ports for fast wired connectivity
Deploy models with internal antennas or connectorized models that support external antennas to meet the range of environments
Wi-Fi 6 access points (APs) provide up to 2.97 Gbps combined aggregate data rate
Dual radio AP supporting 5 GHz and 2.4 GHz bands (4x4 MIMO)
Parametry
| Barva | Bílá |
|---|---|
| Certifikace | UL2043 plenum rating Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth Special In |
| Hmotnost | 1000 g |
| Šířka | 240 mm |
| Výška | 57 mm |
| Hloubka | 240 mm |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 2 |
| Provozní rozsah teplot (T-T) | 0 - 50 °C |
| Rozsah teplot při skladování (T-T) | -40 - 70 °C |
| Doporučená provozní relativní vlhkost | 5 - 93 % |
| Rozsah relativní vlhkosti při skladování (H-H) | 5 - 93 % |
| Slot pro zámek | Ano |
| Typ zámku kabelu | Kensington |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD) |
| Počet portů USB 2.0 | 1 |
| Přenosová rychlost sítě Ethernet | 5000 Mbit/s |
| Maximální přenosová rychlost | 3550 Mbit/s |
| Umístění | Strop, Zeď |
| Typ antény | Vnější |
| Modulace | 16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK |
| Doporučené použití | Kancelář |
| Auto MDI/MDI-X | Ano |
| Power over Ethernet (PoE) | Ano |
| MIMO | Ano |
| Hmotnost (imperiální jednotky) | 2.2 lbs |
| 5 GHz | Ano |
| Typ MIMO | Víceuživatelské MIMO |
| Podpora MACsec | Ne |
| Kompatibilní operační systémy | HPE Aruba Networking Wireless Operating System 8.5.0.0* HPE Aruba Networking Instant OS 8.5.0.0* HPE Aruba Networking Wireless Operating System 10.0.0.0 or later. Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later. |
| Počet konektorů | 4 |
| Počet antén | 4 |
| Bezpečnostní algoritmy | WMM,WPA,WPA2 |
| Spotřeba energie (maximální) | 23.3 W |
| Vstupně-výstupní porty | E0, E1: Ethernet port (RJ-45) Serial console interface (proprietary, micro-B USB physical jack) USB 2.0 host interface (Type A connector) Kensington security slot |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální přenosová rychlost (5 GHz) | 2402 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 1148 Mbit/s |
| Typ USB konektoru | USB Type-A |
| Metoda rozprostřeného spektra | DSSS,OFDM |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Typ konektoru antény | RP-SMA |
