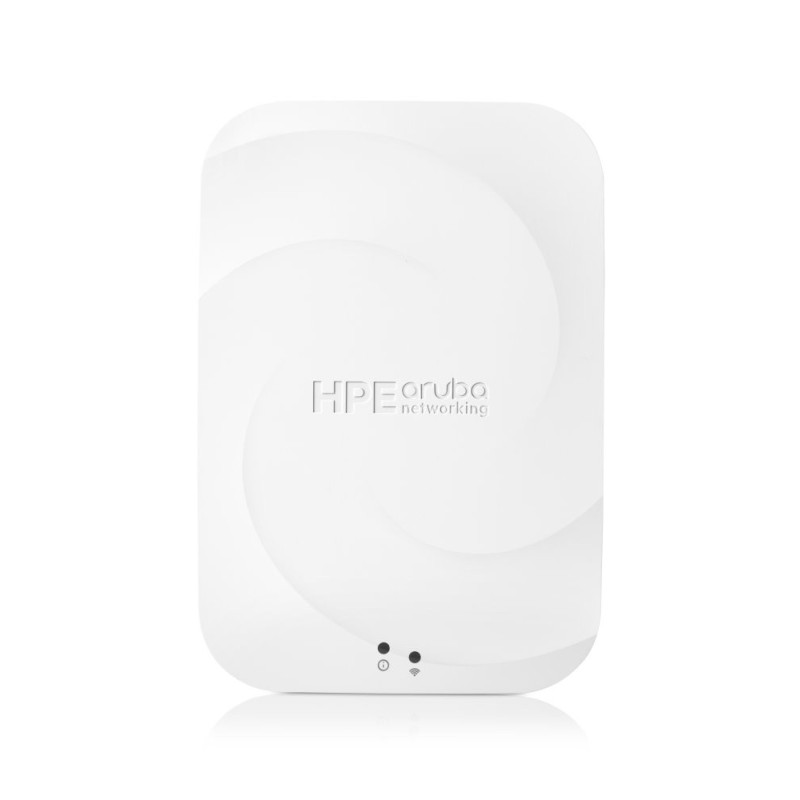

HPE ANW AP-605HR (EU) Bundle
Technologie propojení Zigbee / Barva Bílá / Certifikace Wi‐Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 WPA, WPA2, and WPA3-–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE-PD devic / Hmotnost 500 g / Šířka 105 mm / Výška 153 mm
Všechny parametryKód: S0B64A Výrobce: HPE EAN: 0190017621173
Popis
The HPE Aruba Networking 600H Series Hospitality Access Points deliver high-performance wireless connectivity to mission-critical hospitality, small branch, and remote work environments. The 600H series delivers more wireless capacity and wider channels by taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet the increasing demands of bandwidth-hungry video, growing numbers of clients and Internet of Things (IoT) devices, and growth of cloud services. Configurable dual radios support any two of three Wi-Fi 6E bands (2.4, 5, and 6 GHz) and provide full Wi-Fi 6E coverage in a multi-AP environment. The flexible compact form factor includes multigigabit and gigabit ports, Power over Ethernet (PoE) support, and integrated Bluetooth Low Energy (BLE) and Zigbee, providing a range of connectivity options ideal for venues such as hotels, residence halls, and remote offices. The 600H series include a limited lifetime warranty.
What is new supporting point:
High performance Wi-Fi 6E AP is ideal for hospitality, branch, and teleworker deployments
It has flexible coverage across any two bands (2.4 GHz, 5 GHz, and 6 GHz) for up to 3.6 Gbps combined peak data rate
It has up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and AR/VR applications
It combines wireless and wired access in compact desktop or wall mount model that can be PoE powered
IoT-ready with support for Bluetooth 5 and Zigbee
What is new supporting point:
High performance Wi-Fi 6E AP is ideal for hospitality, branch, and teleworker deployments
It has flexible coverage across any two bands (2.4 GHz, 5 GHz, and 6 GHz) for up to 3.6 Gbps combined peak data rate
It has up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and AR/VR applications
It combines wireless and wired access in compact desktop or wall mount model that can be PoE powered
IoT-ready with support for Bluetooth 5 and Zigbee
Ke stažení
- Datasheet (386.87KB)
Parametry
| Technologie propojení | Zigbee |
|---|---|
| Barva | Bílá |
| Certifikace | Wi‐Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 WPA, WPA2, and WPA3-–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location Bluetooth SIG Ethernet Alliance (PoE-PD devic |
| Hmotnost | 500 g |
| Šířka | 105 mm |
| Výška | 153 mm |
| Hloubka | 40 mm |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 5 |
| Typ napájení | Napájecí adaptér |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, Směrnice pro nízké napětí (LVD) |
| Účel | Vnitřní |
| Záruční doba | Doživotní |
| Počet portů USB 2.0 | 1 |
| Platforma | HPE Aruba Networking |
| Přenosová rychlost sítě Ethernet | 1000,2500,5000 Mbit/s |
| Standardy Wi-Fi | Wi-Fi 6E (802.11ax) |
| Maximální přenosová rychlost | 3600 Mbit/s |
| Umístění | Stůl, Zeď |
| Typ antény | Vnitřní |
| Doporučené použití | Kancelář |
| Power over Ethernet (PoE) | Ano |
| DC-in konektor | Ano |
| MIMO | 2 x 2 |
| 5 GHz | Ano |
| 6 GHz | Ano |
| Typ směrovosti antény | Všesměrová |
| Montáž | Na zeď |
| Podpora MACsec | Ne |
| Kompatibilní operační systémy | HPE Aruba Networking Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Operating System 10 |
| Bezpečnostní algoritmy | WPA,WPA2,WPA3 |
| Spotřeba energie (maximální) | 50 W |
| Vstupně-výstupní porty | Uplink (E0): Ethernet wired network port (RJ-45) Downlink (E1-–E4): Ethernet wired network ports (RJ-45)(E1 and E2: POE-PSE) USB 2.0 host interface (Type A connector) Cellular radio module interface (accessible after removing the back cover) Serial consol |
| MU-MIMO | Ano |
| Počet SFP portů | Bez |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.6 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální přenosová rychlost (5 GHz) | 1200 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 287 Mbit/s |
| Maximální přenosová rychlost (6 GHz) | 2400 Mbit/s |
| Rozsah DC napětí | 48 V |
| Typy PoE | PoE-Out + PoE-In |
| 6GHz MIMO | 2 x 2 |
| Porty | USB micro |
| Přenosová rychlost - 2,4 GHz | 575 |
| Přenosová rychlost - 5 GHz | 1201 |
| Přenosová rychlost - 6 GHz | 2402 |
| 5GHz MIMO | 2 x 2 |
| Maximální rychlost LAN | 2.5G |
| Maximální rychlost SFP | Bez |
| Maximální zisk antény | 5.4 dBi |
| Typ USB konektoru | USB Type-A |
| Vlastnosti antény | Integrated antenna |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
