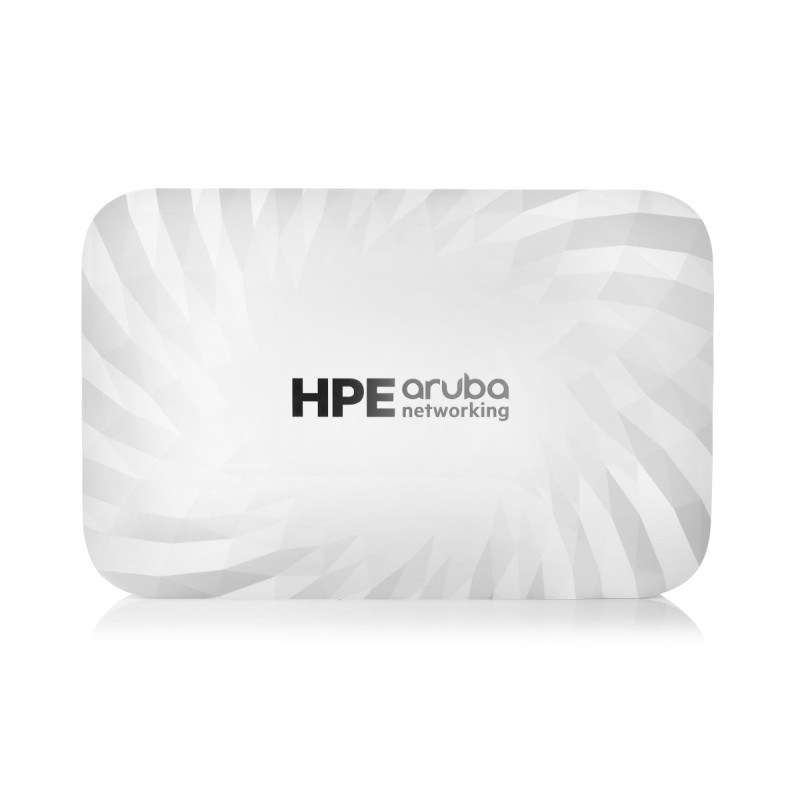

HPE ANW AP-763 (RW) Indoor AP
Technologie propojení Zigbee / Barva Bílá / Certifikace Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (enterprise, personal), Enhanced Open (OWE) WMM, WMM PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (E0, PoE PD Device Class 6) / Bluetooth Ano / Síťové standardy IEEE 802.11be,IEEE 802.11mc / Počet portů Ethernetu (RJ-45) 1
Všechny parametryKód: S4K10A Výrobce: HPE EAN: 0190017740638
Popis
The HPE Aruba Networking 760 Series Hardened Access Points bring high performance Wi‑Fi 7 to challenging locations such as industrial sites, warehouses, and large public venues. These compact Wi-Fi 7 access points boost security, support Internet of Things (IoT) devices, and help provide accurate location services. HPE Aruba Networking Central helps drive efficient operations and provides AI-automation and machine learning (ML) insights for fine-tuned wireless connectivity. With integrated IoT radios, fast 5GbE wired connectivity, and a limited lifetime warranty, the 760 series is purpose‑built to deliver high-performance Wi‑Fi 7 across a range of environmental conditions: indoor industrial, outdoors, and hazardous environments, delivering up to 5.8 Gbps maximum aggregate data rates using 6 GHz (4x4). For extreme environments, the 760EX models are hazardous location compliant, ideal for environments such as oil rigs, industrial manufacturing, and transportation sites.
What is new supporting point:
High performance hardened Wi-Fi 7 access points with purpose-built models for industrial indoors, outdoors, large public venues, and hazardous environments
AI-driven orchestration and management with HPE Aruba Networking Central helps provide amazing wireless experiences and operational efficiency
It delivers up to 4.3 Gbps maximum 5 GHz + 6 GHz aggregate data rate, using dual 2x2 MIMO radios (5 GHz and 6 GHz 2x2), or up to 5.8 Gbps (in 6 GHz 4x4)
Industrial IoT‑ready platform with high‑power integrated Bluetooth and 802.15.4/Zigbee radios
Low power indoor (LPI) power and standard power (SP) device operation, where available. Embedded GPS receiver for location and SP support
Dynamic power save mode helps reduce energy consumption
What is new supporting point:
High performance hardened Wi-Fi 7 access points with purpose-built models for industrial indoors, outdoors, large public venues, and hazardous environments
AI-driven orchestration and management with HPE Aruba Networking Central helps provide amazing wireless experiences and operational efficiency
It delivers up to 4.3 Gbps maximum 5 GHz + 6 GHz aggregate data rate, using dual 2x2 MIMO radios (5 GHz and 6 GHz 2x2), or up to 5.8 Gbps (in 6 GHz 4x4)
Industrial IoT‑ready platform with high‑power integrated Bluetooth and 802.15.4/Zigbee radios
Low power indoor (LPI) power and standard power (SP) device operation, where available. Embedded GPS receiver for location and SP support
Dynamic power save mode helps reduce energy consumption
Ke stažení
- Datasheet (362.75KB)
Parametry
| Technologie propojení | Zigbee |
|---|---|
| Barva | Bílá |
| Certifikace | Wi‐Fi Alliance: Wi‐Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (enterprise, personal), Enhanced Open (OWE) WMM, WMM PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (E0, PoE PD Device Class 6) |
| Bluetooth | Ano |
| Síťové standardy | IEEE 802.11be,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 1 |
| Typ napájení | 802.3bt |
| Certifikáty shody | Federální komunikační komise (FCC), ISED |
| Účel | Venkovní |
| Záruční doba | Doživotní |
| Verze Bluetooth | 5.4 |
| Počet portů USB 2.0 | 1 |
| Platforma | HPE Aruba Networking |
| Přenosová rychlost sítě Ethernet | 5000 Mbit/s |
| Standardy Wi-Fi | Wi-Fi 7 (802.11be) |
| Maximální přenosová rychlost | 5800 Mbit/s |
| Umístění | Strop, Zeď |
| Typ antény | Vnitřní |
| Doporučené použití | Kancelář |
| Tlačítko reset | Ano |
| Power over Ethernet (PoE) | Ano |
| MIMO | 2 x 2 |
| GPS (satelitní) | Ano |
| 5 GHz | Ano |
| 6 GHz | Ano |
| Typ směrovosti antény | Všesměrová |
| Montáž | Na strop |
| Podpora MACsec | Ano |
| Kompatibilní operační systémy | HPE Aruba Networking Wireless Operating System 10 |
| Bezpečnostní algoritmy | WMM,WPA2,WPA3-Enterprise,WPA3-Personal,OWE |
| Vstupně-výstupní porty | 1 x 5GbE USB 2.0 Reset button Serial console |
| MU-MIMO | Ano |
| Počet SFP portů | Bez |
| Frekvenční pásmo | 20/40/80/160 MHz channel bandwidths supported Aggregate peak data rate 5.8 Gbps using 6 GHz (4x4) with 160 MHz GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální přenosová rychlost (6 GHz) | 5800 Mbit/s |
| Typy PoE | PoE-In (pouze) |
| 6GHz MIMO | 2 x 2 |
| Porty | USB-C |
| Přenosová rychlost - 2,4 GHz | 344 |
| Přenosová rychlost - 5 GHz | 2882 |
| Přenosová rychlost - 6 GHz | 5765 |
| 5GHz MIMO | 2 x 2 |
| Maximální rychlost LAN | 5G |
| Maximální rychlost SFP | Bez |
| Maximální zisk antény | 7.4 dBi |
| Cloudové řízení | Ano |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
