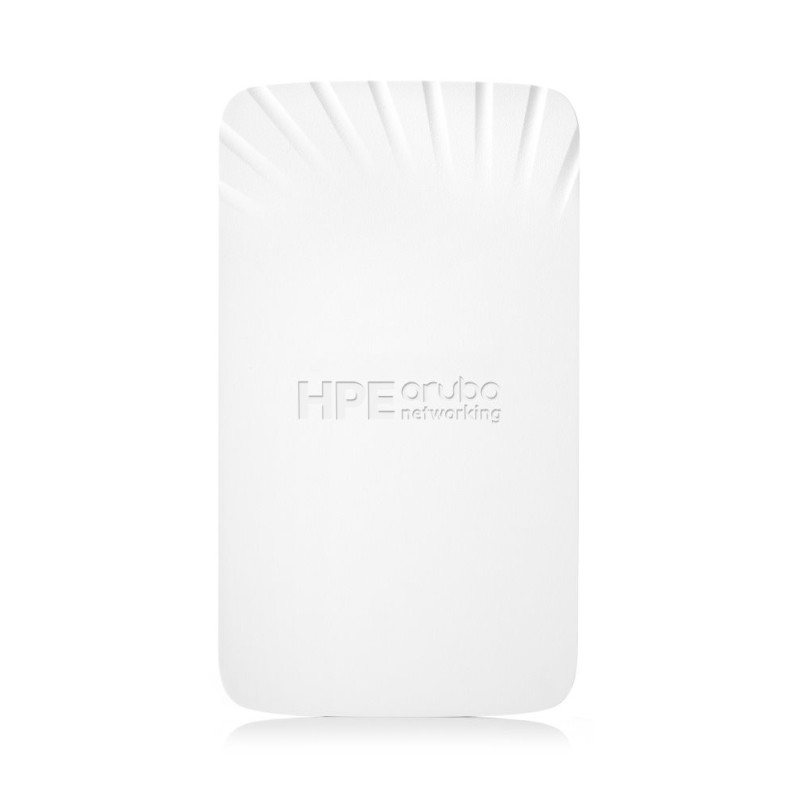

Aruba AP-505HR (EU) Remote AP Bundle
Technologie propojení Zigbee / Barva Bílá / Certifikace Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet All / Hmotnost 360 g / Šířka 86 mm / Výška 150 mm
Všechny parametryKód: R3V56A Výrobce: HPE EAN: 0190017395807
Popis
HPE Aruba Networking 500H Series Hospitality Access Points deliver cost-effective Wi-Fi 6 coverage in a compact form factor that is ideal for hotels, residence halls, and remote offices. With 1.49 Gbps maximum combined speed, zero touch provisioning (ZTP), and wired ports, the 500H series is ready to improve wireless experiences for guests, employees, students, and teleworkers. The 500H series is Wi-Fi CERTIFIED and supports 802.11ax features; orthogonal frequency-division multiple access (OFDMA) for multi-user efficiency, target wake time (TWT) to extend the battery life of connected Internet of Things (IoT) devices, and WPA3 and Enhanced Open (OWE) for greater password and guest security. The 500H series includes a limited lifetime warranty.
What is new supporting point:
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support
The AP provides IoT-ready Bluetooth 5 and Zigbee support
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
What is new supporting point:
Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise
Dynamic segmentation and policy enforcement firewalls (PEFs) automatically enforce consistent policies across the network, enhancing user and device security
You can customize deployment with optional desktop stand and models that offer choice of wired connectivity, USB, and PoE out support
The AP provides IoT-ready Bluetooth 5 and Zigbee support
The AP provides supports for OFDMA for enhanced multi-user efficiency, and WPA3 and Enhanced Open for greater security
Cost-effective Wi-Fi 6 hospitality access points provide up to 1.49 Gbps maximum combined data rate with a range of connectivity options for venues such as hotels, residence halls, and remote offices
Ke stažení
- Datasheet (494.97KB)
Parametry
| Technologie propojení | Zigbee |
|---|---|
| Barva | Bílá |
| Certifikace | Wi‐Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6 (ax) WPA, WPA2 and WPA3–Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location (AP-505H only) Bluetooth SIG Ethernet All |
| Hmotnost | 360 g |
| Šířka | 86 mm |
| Výška | 150 mm |
| Hloubka | 47 mm |
| Bluetooth | Ano |
| Síťové standardy | IEEE 802.11ax,IEEE 802.11mc |
| Počet portů Ethernetu (RJ-45) | 5 |
| Provozní rozsah teplot (T-T) | 0 - 40 °C |
| Rozsah teplot při skladování (T-T) | -40 - 70 °C |
| Doporučená provozní relativní vlhkost | 5 - 93 % |
| Typ napájení | Napájecí adaptér |
| Certifikáty shody | Federální komunikační komise (FCC), ISED, CE, Elektromagnetická kompatibilita (EMC), Směrnice pro nízké napětí (LVD) |
| Účel | Vnitřní |
| Záruční doba | Doživotní |
| Verze Bluetooth | 5.0 |
| Počet portů USB 2.0 | 1 |
| Platforma | HPE Aruba Networking |
| Přenosová rychlost sítě Ethernet | 1000,5000 Mbit/s |
| Standardy Wi-Fi | Wi-Fi 6 (802.11ax) |
| Maximální přenosová rychlost | 1487 Mbit/s |
| Umístění | Stůl, Zeď |
| Typ antény | Vnitřní |
| Modulace | 16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK |
| Doporučené použití | Kancelář |
| Auto MDI/MDI-X | Ano |
| Power over Ethernet (PoE) | Ano |
| MIMO | 2 x 2 |
| Hmotnost (imperiální jednotky) | 0.8 lbs |
| 5 GHz | Ano |
| Typ MIMO | Víceuživatelské MIMO |
| Typ směrovosti antény | Polosměrová |
| Montáž | Na zeď |
| Podpora MACsec | Ne |
| Kód harmonizovaného systému | 85176990 |
| Kompatibilní operační systémy | HPE Aruba Networking Operating System and HPE Aruba Networking Instant OS 8.7.1.0 (AP-503H) and 8.7.0.0 (AP-505H), HPE Aruba Networking Operating System 10.3.0.0 (AP-503H), 10.2.0.0 (AP-505H) |
| Počet antén | 2 |
| Bezpečnostní algoritmy | WPA,WPA2,WPA3 |
| Spotřeba energie (maximální) | 50 W |
| Vstupně-výstupní porty | 1 x HPE Smart Rate RJ-45 port, auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX. 2.5 Gbps speed complies with NBASE-T and 802.3bz specifications 4 x 10/100/1000BASE-T RJ-45 ports, auto-sensing link speed and MDI/MDX |
| MU-MIMO | Ano |
| Počet SFP portů | Bez |
| Frekvenční pásmo | 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps GHz |
| Pásmo 2,4 GHz | Ano |
| Maximální přenosová rychlost (5 GHz) | 1200 Mbit/s |
| Maximální přenosová rychlost (2,4 GHz) | 287 Mbit/s |
| Typy PoE | PoE-Out + PoE-In |
| 6GHz MIMO | Bez |
| Porty | USB micro |
| Přenosová rychlost - 2,4 GHz | 287 |
| Přenosová rychlost - 5 GHz | 1201 |
| Přenosová rychlost - 6 GHz | Bez |
| 5GHz MIMO | 2 x 2 |
| Maximální rychlost LAN | 2.5G |
| Maximální rychlost SFP | Bez |
| Maximální zisk antény | 5.4 dBi |
| Typ USB konektoru | USB Type-A |
| Vlastnosti antény | Integrated antenna |
| Metoda rozprostřeného spektra | DSSS,OFDM,OFDMA |
| Správa přístupových bodů | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
