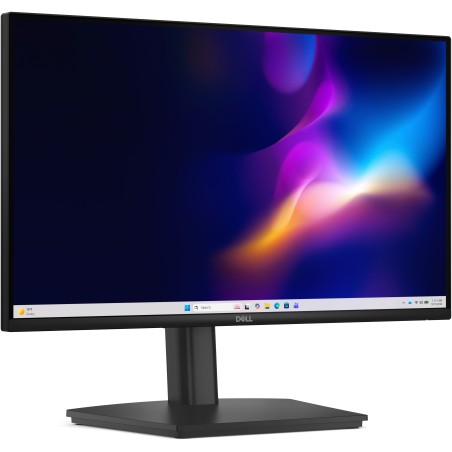

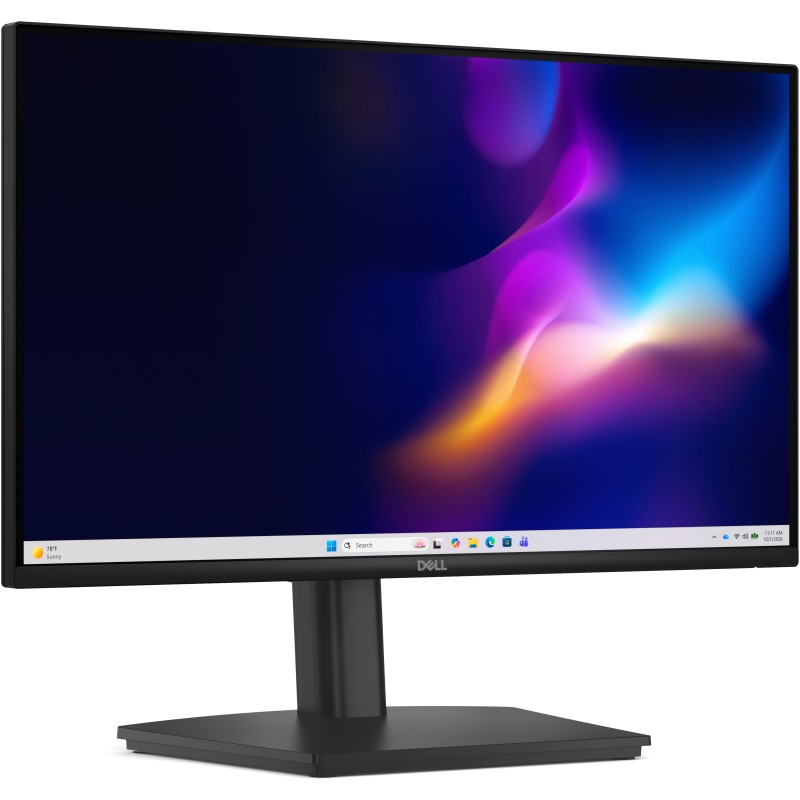

DELL Pro 22 E2226HS 22" FHD IPS/5ms/300nits/100Hz/HDMI/DP/VGA/repro/pivot/výškově nastavitelný/černý

General Information
Manufacturer
Dell Technologies
Manufacturer Part Number
323WX
Brand Name
Dell
Product Line
Pro
Product Model
E2226HS
Product Name
Pro 22 Adjustable Stand Monitor - E2226HS
Product Type
LCD Monitor
Technical Information
Number of Screens
1
Screen Size Class
22"
Viewable Screen Size
21.5"
Screen Mode
Full HD
Display Screen Type
Flat Panel
Panel Technology
In-plane Switching (IPS) Technology
Response Time Details
5 ms GTG (Fast)
8 ms GTG
Aspect Ratio
16:9
Pixel Pitch
0.24795 mm x 0.24795 mm
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Mount Type
Panel Mount
HDCP Supported
Yes
Maximum Adjustable Height
5.12"
Tilt Angle
-5° to 21°
Swivel Angle
-173° to 173°
Pivot Angle
+/-90°
Features
Anti-glare
Arsenic-free Glass
BFR Free
Cable Lock Slot
Eye Comfort Technology
Low Blue Light
Mercury-free
PVC Free
Security Lock
Adjustable Stand
Yes
Stand Adjustments
Height
Pivot
Slant
Swivel
Tilt
Stand Included
Yes
Stand Type
Adjustable
Pivot
Yes
Curved Screen
No
Glass Hardness
3H
Surface Treatment
Anti-glare
Flicker Free
Yes
Video
Maximum Resolution
1920 x 1080
Standard Refresh Rate
100 Hz
Color Supported
16.7 Million Colors
Color Depth
8-bit (6-bit + FRC)
Native Contrast Ratio
1,000:1
Brightness
300 Nit
Color Gamut
72% NTSC (CIE 1931)
Calibration Accuracy
No
Maximum Preset Resolution
1920 x 1080 at 100Hz
Pixel Per Inch (PPI)
102
Resolution Type
Standard
Audio
Number of Speakers
2
Speakers
Yes
Speaker Output Power
2 x 2 W
Interfaces/Ports
Network (RJ-45)
No
HDMI
Yes
HDMI Version
1.4

USB
No
VGA
Yes
DisplayPort
Yes
Thunderbolt
No
USB Type-C
No
Number of HDMI Inputs
1
Total Number of HDMI Ports
1
Number of DisplayPorts
1
Number of VGA Ports
1
Number of DisplayPort 1.4 (HDCP 1.4)
1
Audio Line In
No
DVI-D
No
Audio Line Out
No
DisplayPort Input
Yes
DisplayPort Output
No
Number of HDMI 1.4 (HDCP 1.4)
1
USB Type-B
No
DisplayPort HDCP Version
HDCP 1.4
HDMI HDCP Version
HDCP 1.4
RS-232 (Rear)
No
Thunderbolt Downstream (Rear)
No
USB Type-A (Front)
No
USB Type-A (Rear)
No
USB Type-C (Front)
No
USB Type-C (Power Delivery) Upstream Supported (Rear)
No
USB Type-C (Without Power Delivery) Upstream Supported (Rear)
No
Interface/Port Details
1 HDMI port (HDCP 1.4) (Supports up to 1920 x 1080, 100 Hz as specified in HDMI 1.4)
1 DisplayPort 1.4 (HDCP 1.4) port
1 VGA port
Built-in Devices
Webcam
No
Microphone
No
Environmental Conditions
Operating Temperature Range
32°F (0°C) to 104°F (40°C)
Non-operating Temperature Range
-4°F (-20°C) to 140°F (60°C)
Operating Humidity Range
10% to 80% (Non-condensing)
Non-operating Humidity Range
5% to 90% (Non-condensing)
Maximum Operating Altitude
16404 ft
Maximum Non-operating Altitude
40000 ft
Power Description
Input Voltage Range
100V AC to 240V AC
Operating Power Consumption
10.40 W
Standby Power Consumption
300 mW
Off-Mode Power Consumption
300 mW
Frequency
50 Hz
60 Hz
Maximum Power Consumption
28.50 W
Voltage Current
700 mA
Input Voltage Range/Current Details
100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/0.7 A
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Color Family
Black
Product Color
Black
Height
11.3"
Width
19.2"
Depth
2.2"
Height with Stand
18.56"
Width with Stand
19.21"
Depth with Stand
8.33"
Compressed Height with Stand
13.45"
Extended Height with Stand
18.56"
Bezel Width (Top)
0.24"
Bezel Width (Bottom)
0.48"
Bezel Width (Left)
0.24"
Bezel Width (Right)
0.24"
Weight (Approximate)
4.83 lb
Stand Height
15.75"
Stand Width
10.12"
Stand Depth
8.33"
Weight with Stand & Cables (Approximate)
8.64 lb
Miscellaneous
Package Contents
Pro 22 Adjustable Stand Monitor - E2226HS
Stand
Power Cable: 1.80 m
1 x DisplayPort to DisplayPort cable (1.8 m) for NA and LATAM
QR card
Safety, Environmental, and Regulatory Information
Certifications & Standards
California CEC
BFR/PVC reduce monitor (Circuit boards are made from BFR/PVC-free laminates)
Arsenic-Free glass and Mercury-Free for the panel only
Meets NFPA 99 leakage current requirements.
Product Safety, EMC, and Environmental Datasheets
Dell Regulatory Compliance Homepage
Dell and the Environment
GS Mark
Platform Supported
Linux
Mac
Windows
Energy Star
Yes
TAA Compliant
Yes
TCO Certified
Yes
Eye Comfort Certification
Yes
Eye Comfort Rating
3 Star
Dell Display and Peripheral Manager Compatibility
Yes
Remote Asset Management
Dell Display and Peripheral Manager (DDPM)
Cable Type Included
Power Cable: 1.80 m
1 x DisplayPort to DisplayPort cable (1.8 m) for NA and LATAM
Environmentally Friendly
Yes
Environmental Certification
China Environmental United Certification Center (CEC)
Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)
TCO Certified 10.0
TCO Certified Edge
Energy Efficiency Certification
China Energy Conservation Program (CECP)
ENERGY STAR 8.0
Energy Efficiency Compliance
Energy-related Products Directive (ErP)
Energy-related Products Directive Lot 5 (ErP Lot 5)
Korea E-Standby
Minimum Energy Performance Standards (MEPS)
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS)
Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3-Year Advanced Exchange Service
Advance Echanged Service: If needed, a replacement part or unit is dispatched after completing phone or online diagnosis. A fee applies if the defective unit is not returned. Availability may vary. Additional conditions apply.
