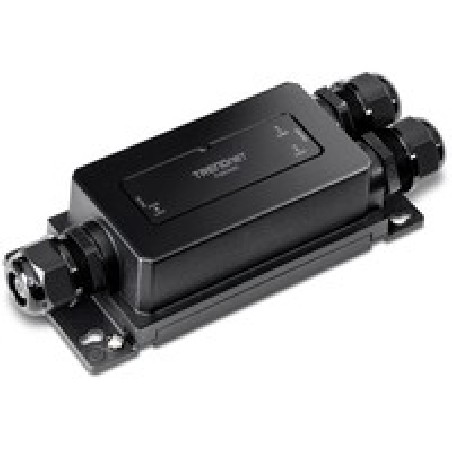

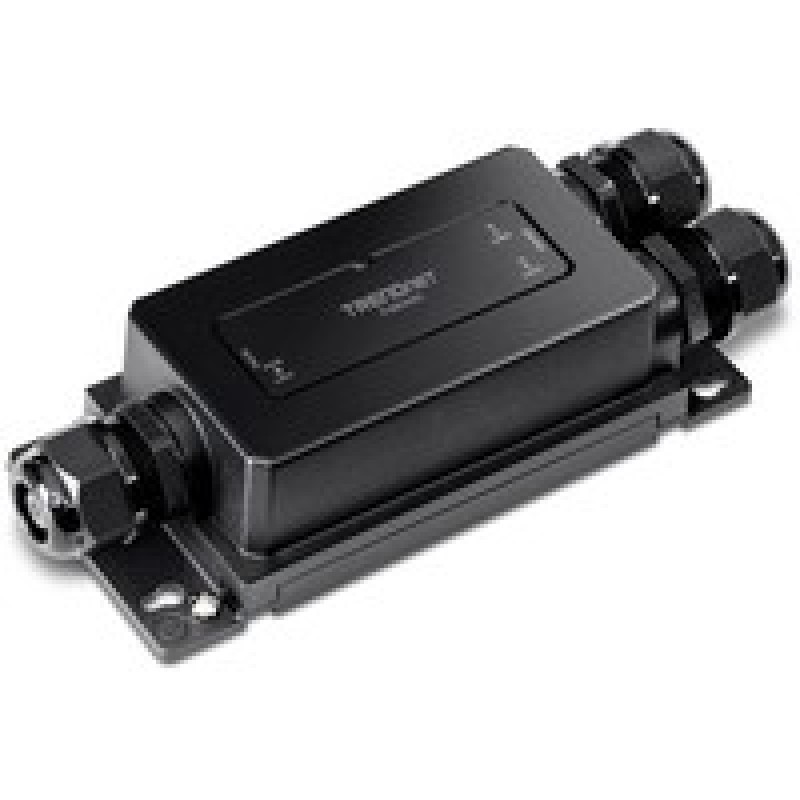

TRENDnet 2-Port Industrial Outdoor/Gigabit PoE++ Extender

TRENDnet 2-Port Industrial Outdoor/Gigabit PoE++ Extender z kategorie Switche.

Hlavní parametry:

• Tabulka MAC adres: 2048 entries
• Podpora Jumbo frames: Ano
• Přenosová rychlost sítě Ethernet: 10,100,1000 Mbit/s
• Stupeň krytí IP: IP67
• Přenosová rychlost dat: 2000 Mbit/s
• Maximální přenosová vzdálenost: 100 m
• Duplexní systém: Full,Half
• Typ: AV transmitter & receiver
• Síťové standardy: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x
• Technologie kabeláže: 10/100/1000Base-T(X)

Popis výrobce (anglicky)

TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE++ Extender, model TI-BE200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. The industrial outdoor PoE++ extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to four outdoor PoE++ extenders together for a total PoE network extension of up to 500 meters (1,640 ft.). This industrial PoE++ extender features a single PoE++ input port and two PoE+ output ports encased in an IP67 weather rated housing.

PoE++ Power

Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices.

Gigabit Ports

Features one gigabit PoE++ input port and two gigabit PoE+ output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE+ devices.

Outdoor Rated

Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°– 75° C (-40° – 167° F).

Extension Distance

Extends a PoE, PoE+, or PoE++ network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source

PoE/PoE+/PoE++

The industrial PoE++ extender conveniently auto detects PoE (15.4W), PoE+ (30W), and PoE++ (60W) network connections

Gigabit Ports

1 x Gigabit PoE++ input port, 2 x Gigabit PoE++ output ports, with a 60W PoE budget and a 90W PoE++ input

Daisy Chain

Connect up to 4 outdoor PoE++ repeaters for a total PoE network extension of up to 500m (1,640 ft.)*

PoE Powered

No external power required—saves installation time and cost

Outdoor Ready

The outdoor PoE++ extender features a rugged IP67 outdoor weather rated metal housing
